    Electric Arc Furnace Material Transfer Battery Industrial Rail Trolley Cart 30 Tons

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE,ISO9000
    Price : $3000-$5000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 50 days after receive your prepayment
    • Product Details
    • Company Profile

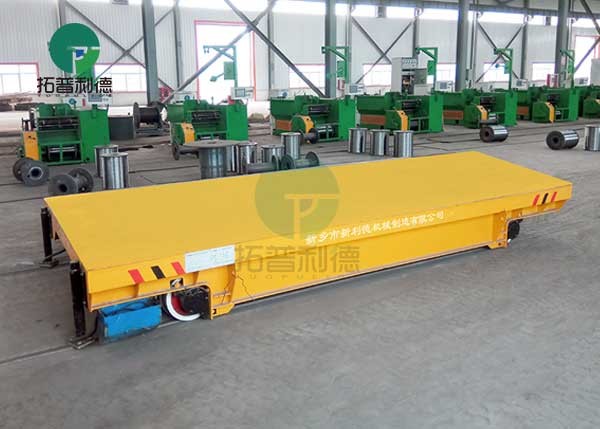

    Electric Arc Furnace Material Transfer Battery Industrial Rail Trolley Cart 30 Tons

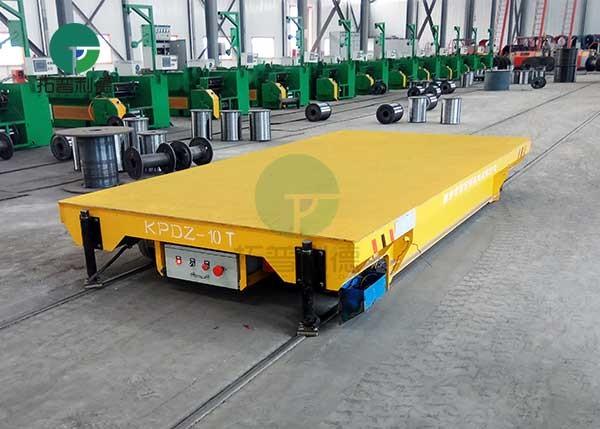

    Electric Arc Furnace Material Transfer Battery Industrial Rail Trolley Cart 30 Tons


    Product Description - Industrial Rail Trolley


    The 30 tons electric arc furnace material transfer battery industrial rail trolley cart is an electric material transport cart applied in the industrial fields.The industrial rail trolley is customized according to different applications requirements. It with different names: coil transfer trolley (used to transfer coils material), ladle transfer cart (to transport hot steel ladle in steel plant), mold die transfer trolley (to handling dies molds in the mold factory), lifting trable transfer trolley (transport the material to the specified height), roller transfer cart, etc.

    Electric Arc Furnace Material Transfer Battery Industrial Rail Trolley Cart 30 TonsElectric Arc Furnace Material Transfer Battery Industrial Rail Trolley Cart 30 Tons
    75 Ton Ladle Transfer Cart For Steel Plant110 Ton Coil Transfer Trolley In Pakistan15 Ton Dies Molds Transfer Carts
    Electric Arc Furnace Material Transfer Battery Industrial Rail Trolley Cart 30 TonsElectric Arc Furnace Material Transfer Battery Industrial Rail Trolley Cart 30 Tons
    Steel Roller Transfer Cart For Condenser10 Ton Scissor Lifting Transfer Cart15 Ton Towed Transfer Cart For Airplane

    Contact Us For More Information

    Working Principle - Industrial Rail Trolley


    The 30 tons electric arc furnace material transfer battery industrial rail trolley cart is powered by battery, the lead acid batteries installed in the transfer cart. The battery to driven the industrial rail trolley working.

    The transfer trolley also can be powered by other power supply mode, such as low voltage rail, cable, busbar, diesel, etc. It customized according as your real demands.

    Electric Arc Furnace Material Transfer Battery Industrial Rail Trolley Cart 30 Tons


    Technical Parameters - Industrial Rail Trolley


    Model

    KPX-30T

    Rated Load(t)

    30 tons

    Impacted rated load(t)

    35

    structure of frame

    steel plates welded beam structure

    Thickness of the steel plate

    10

    Cart weight(t)

    6.8

    Wheel load(t)

    110.4

    Ground requirement

    cement ground

    Table size(mm)

    4500*2200

    Height of the whole cart(mm)

    600

    Space from the ground(mm)

    50

    Wheels distance

    3200

    Axles distance

    4300

    Control method for turning

    control button

    Turning structure

    mechanical

    Wheel diameter

    Ф400/4

    Wheel quality

    Cast Steel Rail wheels

    Running speed(m/min)

    0-20

    Brake principle

    electric magnetic force

    Operation method

    with wire or no wire

    Charger motor's installation

    installed on cart

    Function of charger motor

    automatic charging

    Warning equipment

    sound and light lamp


    Contact Us For More Information
