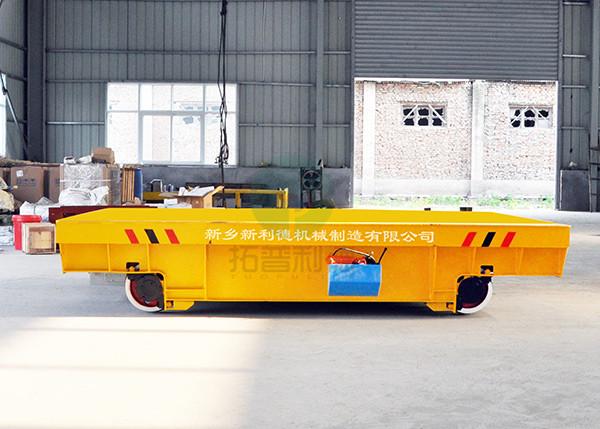

    150 Ton Cable Winding Machine Parts Transport Container Handling Rail Wagon

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPJ-150Ton
    Certification : CE,ISO9000
    Price : $7000-$12000
    Payment Terms : L/C, T/T
    Supply Ability : 300 pcs per month
    Delivery Time : 30-40 days after your prepayment
    • Product Details
    • Company Profile

    150 Ton Cable Winding Machine Parts Transport Container Handling Rail Wagon

    150 Ton Cable Winding Machine Parts Transport Container Handling Rail Wagon


    Brief Introduction --- Container Handling Rail Wagon

    The Container Handling Rail Wagon is an electric driven material transfer cart which is running on the rails. It is designed for material handling from one bay to another in the working site. As the rail transfer carts are equipped with steel wheels and move on steel rails, and the very low friction between steel and steel, the Container Handling Rail Wagon are suited to very high loading capacities.


    150 Ton Cable Winding Machine Parts Transport Container Handling Rail Wagon


    Working Principle --- Container Handling Rail Wagon

    The Container Handling Rail Wagon is the cable reels powered, the transfer vehicle gets power AC 380v through the device of cable reel, and the motor is controlled by the power through AC control system that make the transfer cart to start, stop, go forward, backward, adjust the speed and so on. To avoid damage to the cable, add a cable reel as a retracting/discharging device. Due to the limitation of the cable, it is suitable for a short-distance rail transportation system, but its structure is simple and the price is low. Therefore, it is also a common rail transportation equipment in the workshop.

    The power supply can be customized according as your true demands, such as battery powered, low voltage rail powered, busbar powered, etc.


    150 Ton Cable Winding Machine Parts Transport Container Handling Rail Wagon


    Performance Characteristics --- Container Handling Rail Wagon


    Metallurgical Motor - Y series metallurgical motor is suitable for frequent starting.

    Cable Reel - With a large adjustment range for take-up torque, constant tension after adjustment and stability, good synchronization performance.

    Self-Locking Ability, No Cable Slipping - Reasonable structure arrangement, easy installation, use, maintenance, stable and reliable performance.


    150 Ton Cable Winding Machine Parts Transport Container Handling Rail Wagon


    Parameter List --- Rail Guided Transfer Cart


    Model

    KPJ-2T

    KPJ-5T

    KPJ-10T

    KPJ-20T

    KPJ-30T

    KPJ-50T

    KPJ-100T

    KPJ-150T

    Rated load (T)

    2

    5

    10

    20

    30

    50

    100

    150

    Table size

    length(L)

    2000

    3500

    3600

    4000

    4500

    5500

    6500

    10000

    Width(W)

    1500

    2000

    2000

    2200

    2200

    2500

    2800

    3000

    Height(H)

    450

    450

    500

    550

    600

    650

    850

    1200

    Wheel Base (mm)

    1200

    2500

    2600

    2800

    3200

    4200

    4900

    7000

    Rail Inner Gauge (mm)

    1200

    1435

    1435

    1435

    1435

    1435

    2000

    2000

    Wheel Diameter(mm)

    Φ270

    Φ300

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity(Nos)

    4

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    50

    50

    75

    75

    Running speed (m/min)

    0-30

    0-30

    0-25

    0-25

    0-25

    0-20

    0-20

    0-18

    Motor Power (Kw)

    0.8

    1.5

    1.5

    2.5

    4

    5.5

    11

    15

    Max Wheel Load (KN)

    14.4

    25.8

    42.6

    77.7

    110.4

    174

    343.8

    265.2

    Reference Weight (t)

    2.5

    3.5

    4

    5.6

    6.5

    7.8

    14.1

    26.2

    Recommended Rail Model

    P15

    P18

    P18

    P24

    P38

    P43

    QU100

    QU100


    Application --- Rail Guided Transfer Cart


    This Rail Guided Transfer Cart can free move in the fixed place, within 20 meters to move. So we can image that it can be used in workshop to round trip transportation. But if has other requirement, you can told me the specific order. We produce a wide range of rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die factory, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many other lines.
