    Frequency Use Factory Matarized Heavy Load Transfer Trailer For Coils

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPJ-30T
    Certification : CE,ISO9000
    Price : $3000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 40 days after your prepayment
    • Product Details
    • Company Profile

    Frequency Use Factory Matarized Heavy Load Transfer Trailer For Coils

    frequency use factory matarized heavy load transfer trailer for coils

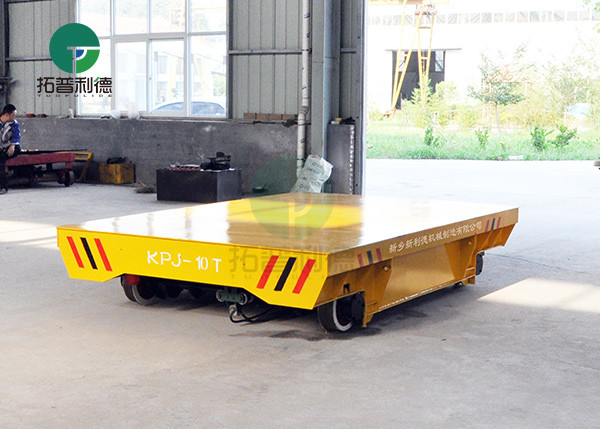

    Brief introduction of heavy load transfer trailer

    KPJ Series railway flat carts are powered by the cable reels. The flat carts get power AC 380V through the device of cable reel which is installed at the bottom of the cart. The motor is controlled by the power through the AC control system. We use this principle to operate the carts, for example, start, stop, go forward and backward and so on. The operation system is low voltage 36V. If the running distance is more than 50m, a cable arranger needs to be installed to arrange the cables. The running distance of KPJ cable reel cart can reach to 200m.

    Frequency Use Factory Matarized Heavy Load Transfer Trailer For Coils

    Working principle of heavy load transfer trailer

    This kind of cable reels powered rail transfer vehicle is powered by cable reel(cable drum) which is installed in the trolley. We are adopts the magnetic coupling cable reel, it can make sure that there is no force on the cable and the cable can be wound and released evenly (if the running distance is more than 50m, a cable arranger is needed to arrange the cable automatically.

    Frequency Use Factory Matarized Heavy Load Transfer Trailer For Coils

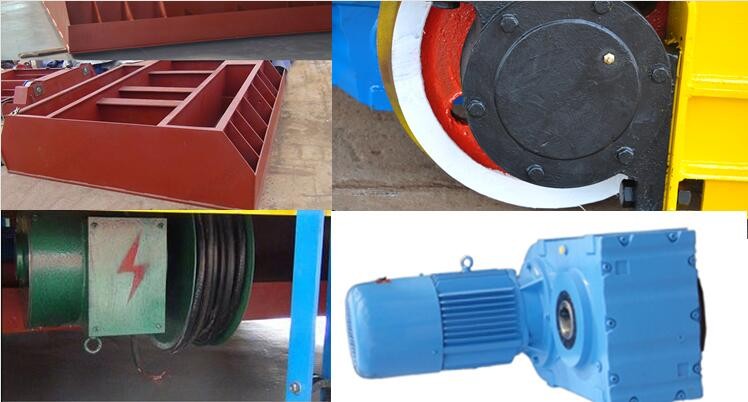

    Components of heavy load transfer trailer

    This kind of rail transfer vehicle for steel mill handling is powered by cable reel(cable drum) which is consists of trolley frame, transmission device (driving wheel set), cable reel, electrical control components and operation devices and so on.

    Frequency Use Factory Matarized Heavy Load Transfer Trailer For Coils

    Parameter of heavy load transfer trailer

    Model

    KPJ-2T

    KPJ-10T

    KPJ-20T

    KPJ-30T

    KPJ-50T

    KPJ-63T

    KPJ-150T

    Rated load (T)

    2

    10

    20

    30

    50

    63

    150

    Table size(mm)

    length(L)

    2000

    3600

    4000

    4500

    5500

    5600

    10000

    Width(W)

    1500

    2000

    2200

    2200

    2500

    2500

    3000

    Height(H)

    500

    550

    600

    650

    700

    800

    1200

    Wheel Base (mm)

    1200

    2600

    2800

    3200

    4200

    4300

    7000

    Rail Inner Gauge (mm)

    1200

    1435

    1435

    1435

    1435

    1435

    2000

    Wheel Diameter(mm)

    Φ270

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    75

    75

    75

    Running speed (min)

    0-25

    0-25

    0-20

    0-20

    0-20

    0-20

    0-18

    Motor Power (Kw)

    0.8

    1.5

    2.5

    4

    5.5

    7.5

    15

    Running Time When Full Load

    4.32

    4.8

    4

    3.5

    3.3

    3

    2.9

    Running Distance for one Charge(Km)

    6.5

    7.2

    4.8

    4.2

    4

    3.6

    3.2

    Max Wheel Load (KN)

    14.4

    42.6

    77.7

    110.4

    174

    221.4

    265.2

    Reference Weight (t)

    2.5

    4

    5.6

    6.5

    7.3

    10.5

    26.2

    Recommended Rail Model

    P15

    P18

    P24

    P38

    P43

    P50

    QU100

    Advantages of heavy load transfer trailer

    • Safety, flexibility, stable start;

    • Long lifetime;

    • using frequency;

    • Simple operation;

    • High efficiency;

    • No restriction of the running time

    Frequency Use Factory Matarized Heavy Load Transfer Trailer For Coils

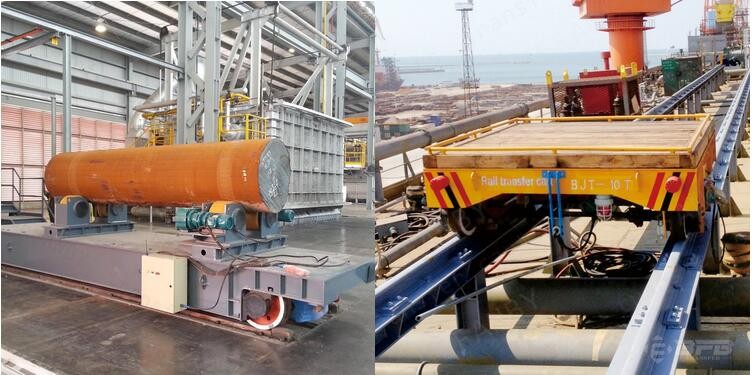

    Application of heavy load transfer trailer

    • Run on the straight railways or on the ‘S’ and arc-shaped railways to carry many material;

    • High-temperature and anti-explosion condition;

    • The cable reels powered rail transfer vehicle can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mould Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to

    • warehouse.

    cable reels powered rail transfer vehicle for steel mill handlingcable reels powered rail transfer vehicle for steel mill handling

    Producing process of heavy load transfer trailer

    cable reels powered rail transfer vehicle for steel mill handling

    Package and delivery of cable reel driven for cement plant transfer car

    cable reels powered rail transfer vehicle for steel mill handling


    tags:track trailer for coils,rail trailer for coils
