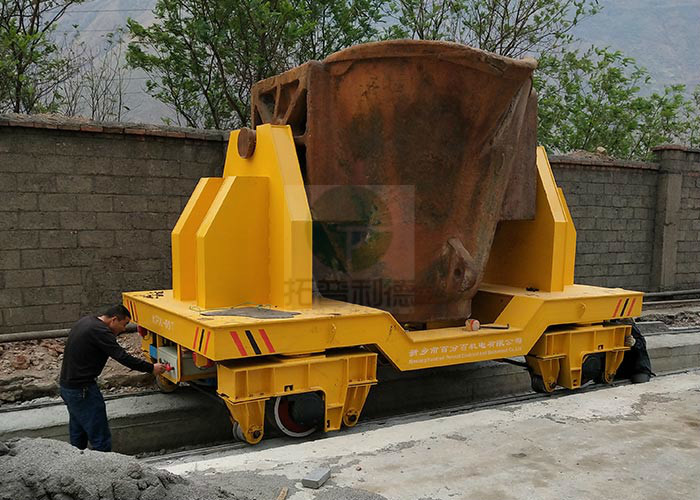

Brief Introduction --- molten ladle railway trailer
The railway guided power wagon is an electric operated material transfer cart which is powered by
battery and running on the rails. Its special is designed for high temperature ladle transport in the
steel manufacturing factory.
As the rail ladle transfer carts are equipped with steel wheels and
move on steel rails they are suited to very high loading capacities
thanks to the very low friction between steel and steel.The
capacity load can up to 500 tons.
The batteries are installed in the transfer cart. The batteries
supply electricity to the DC motor through the electrical control
system. We use this principle to operate the ladle transfer cart,
for example, start, stop, go forward and backward, adjust the speed
and so on.
It can get rid of the limitation of cables and remote control,
which makes the operation more convenient, safe, which can be
applied in long distance rail transit system.
Product Details--- molten ladle railway trailer
 |  |  |
Storage Battery | Battery Charger | Electric Control Box |
 |  |  |
Sound & Light Alarm | Remote Control | Casting Wheel |
Product Funcation --- molten ladle railway trailer
1. Load-Bearing Transport
Load-bearing transport is the most basic and important function of
transfer cart.
2. Turning
This series of rail ladle transfer cart have the function of
running on S-shaped, C-shaped, curved rails, etc.
3. Lift
The hydraulic lift system can be installed on the transfer cart to
achieve lifting and other functions
4. Side Flip
The transfer cart can realize self-discharging by the hydraulic
device
5. Safety Devices
Safety devices can be installed on the transfer cart, for example,
proximity switches, dead man stop, alarm systems, buffers to
achieve the corresponding safety functions.
6. Others
Our company can research and develop the corresponding non-standard
transfer cart to achieve the required functions according to the
customers’ requirements.
Working Environment --- molten ladle railway trailer
1. Environment temperature: -20°C-40°C
2. Environment Humidity: Relative Humidity ≤ 70%
3. Environment PH Degree: Working in a Neutral or Approaching
Neutral
4. Environment Electrical Sustainability: 25%
5. Air Cleanliness: Non-corrosive, non-flammable,non-explosive gas
Parameter List --- molten ladle railway trailer
Model | KPX-2T | KPX-5T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-100T | KPX-150T |
Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 |
Table size(mm) | length | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 |
Height | 450 | 500 | 500 | 550 | 600 | 650 | 900 | 1200 |
Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 |
Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 |
Wheel Diameter(mm) | Φ280 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3.5 | 5 | 10 | 15 |
Battery Capacity (Ah) | 180 | 180 | 160 | 180 | 250 | 330 | 440 | 600 |
Battery Voltage (V) | 24 | 36 | 48 | 48 | 48 | 48 | 72 | 72 |
Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 |
Running Time When Full Load(Hours) | 4.32 | 5.4 | 4.8 | 4 | 3.5 | 3.3 | 3.2 | 3.2 |
Running Distance for One Charge(Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.2 | 4 | 3.8 | 3.2 |
Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 |
Reference Weight (t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.8 | 8 | 14.5 | 26.8 |
Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 | QU100 |
Application --- molten ladle railway trailer
The rail ladle transfer carts are mainly applied in assembly line
(ring production line, loop production line), metallurgy industry
(steel ladle), warehouse transport, ship industry (maintenance,
assemble, container transport), workpiece transport in workshop,
lathe transport, steel factory (steel billet, steel plate, steel
coil, steel pipe, section steel, steel structure), construction
(bridge, simple building, concrete, concrete column), petroleum
industry (oil pump, sucker rod and parts), energy (polycrystalline
silicon, generator, windmill), chemical industry (electrolytic
cell, retort etc), railway (rail maintenance, rail welding, train
tractor).
