    Steelmills Foundries Automated AC-Powered Track Mounted Transfer Cart Heavy Duty Platform Trolley

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE,ISO9000
    Price : $7000-$10000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after your prepayment
    • Product Details
    • Company Profile

    Steelmills Foundries Automated AC-Powered Track Mounted Transfer Cart Heavy Duty Platform Trolley

    Steelmills Foundries Automated AC-Powered Track Mounted Transfer Cart Heavy Duty Platform Trolley


    Brief Introduction --- Track Mounted Transfer Cart

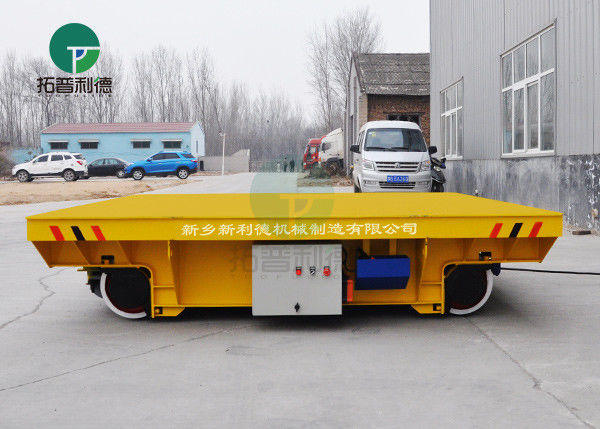

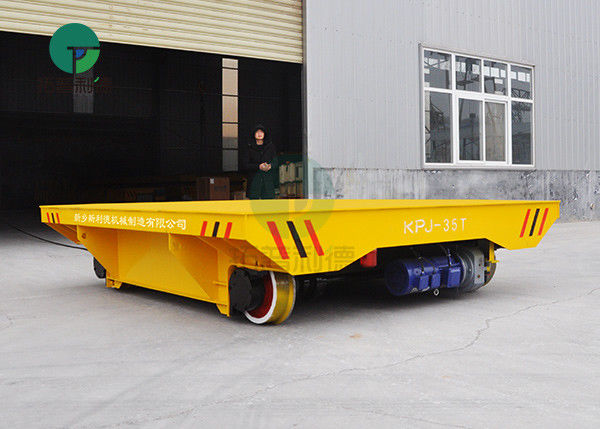

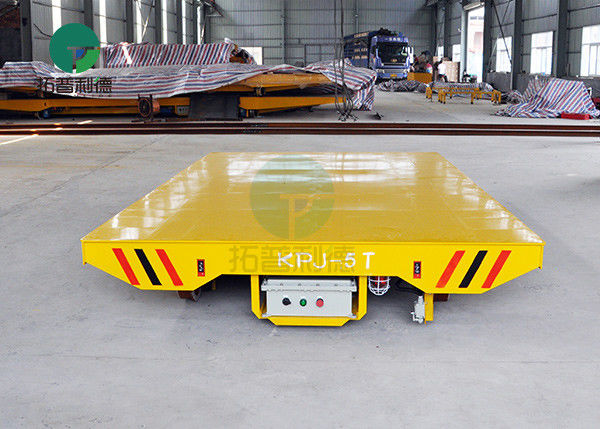

    The Steelmills Foundries Automated AC-Powered Track Mounted Transfer Cart Heavy Duty Platform Trolley is an electric driven material transfer cart which is running on the rails. It is designed for material handling from one bay to another in the working site. As the rail transfer carts are equipped with steel wheels and move on steel rails, and the very low friction between steel and steel, the rail transfer carts are suited to very high loading capacities.

    Steelmills Foundries Automated AC-Powered Track Mounted Transfer Cart Heavy Duty Platform Trolley


    Working Principle --- Track Mounted Transfer Cart

    The track mounted transfer cart is the cable reels powered, the transfer cart gets power AC 380v through the device of cable reel, and the motor is controlled by the power through AC control system that make the motorized transfer cart to start, stop, go forward, backward, adjust the speed and so on.

    To avoid damage to the cable, add a cable reel as a retracting/discharging device. Due to the limitation of the cable, it is suitable for a short-distance rail transportation system, but its structure is simple and the price is low. Therefore, it is also a common rail transportation equipment in the workshop.

    The power supply can be customized according as your true demands, such as battery powered, low voltage rail powered, busbar powered, etc.


    Steelmills Foundries Automated AC-Powered Track Mounted Transfer Cart Heavy Duty Platform Trolley


    Custom Options --- Track Mounted Transfer Cart


    Customization of track mounted transfer cart
    ─ Deck Railings
    ─ Wood Decking Material
    ─ Screw-Jack Lift Deck
    ─ Paint Color (customer specified)
    ─ Rail Guides
    ─ Floor Rail
    ─ End Stops
    ─ Urethane Wheels (not available on guided carts)
    ─ Live Axle


    Steelmills Foundries Automated AC-Powered Track Mounted Transfer Cart Heavy Duty Platform Trolley


    Parameter List --- Track Mounted Transfer Cart


    Model

    KPJ-2T

    KPJ-5T

    KPJ-10T

    KPJ-20T

    KPJ-30T

    KPJ-50T

    KPJ-100T

    KPJ-150T

    Rated load (T)

    2

    5

    10

    20

    30

    50

    100

    150

    Table size

    length(L)

    2000

    3500

    3600

    4000

    4500

    5500

    6500

    10000

    Width(W)

    1500

    2000

    2000

    2200

    2200

    2500

    2800

    3000

    Height(H)

    450

    450

    500

    550

    600

    650

    850

    1200

    Wheel Base (mm)

    1200

    2500

    2600

    2800

    3200

    4200

    4900

    7000

    Rail Inner Gauge (mm)

    1200

    1435

    1435

    1435

    1435

    1435

    2000

    2000

    Wheel Diameter(mm)

    Φ270

    Φ300

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity(Nos)

    4

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    50

    50

    75

    75

    Running speed (m/min)

    0-30

    0-30

    0-25

    0-25

    0-25

    0-20

    0-20

    0-18

    Motor Power (Kw)

    0.8

    1.5

    1.5

    2.5

    4

    5.5

    11

    15

    Max Wheel Load (KN)

    14.4

    25.8

    42.6

    77.7

    110.4

    174

    343.8

    265.2

    Reference Weight (t)

    2.5

    3.5

    4

    5.6

    6.5

    7.8

    14.1

    26.2

    Recommended Rail Model

    P15

    P18

    P18

    P24

    P38

    P43

    QU100

    QU100

    Steelmills Foundries Automated AC-Powered Track Mounted Transfer Cart Heavy Duty Platform Trolley


    Application --- Track Mounted Transfer Cart


    This series track mounted transfer cart can be widely applied in Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mold Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.
