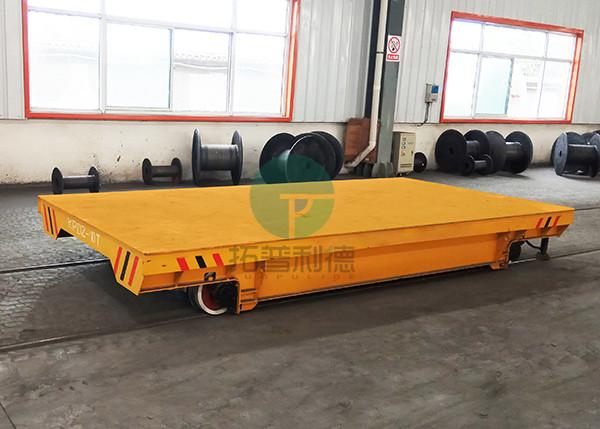

anti-high temperature Low voltage railways handling railway open die railway wagon

Brief Introduction

The kinds of motorized rail guided foundry industry transfer carts are powered by low voltage railways. It makes the AC electricity power is transformed into AC 36v two-phase and are respectively connected to the two rails. Then the transfer carts conduct the AC 36v on rail into the electrical appliance box at the bottom of the transfer cart. And then the AC 36v is transformed into DC 36v to control the DC motor. Use this principle to make the transfer cart start, stop, go forward and backward, adjust the speed and so on.

Product Features

1. High quality reducer, gears adopt CNC grinding technology, high precision, good contact, high transmission efficiency, high bearing capacity and long service life.

2. High quality motor, with a correspondingly fast, large starting torque, from zero speed to rated speed with rated torque performance.

3. The wheel adopts angular bearing seat for easy installation and adjustment, in order to properly improve the machining accuracy of the relevant parts to improve the accuracy of the cart's installation and manufacturing, to place the wheel deviation, the contact between the rim and the track intensifies the rim wear and increases the frictional resistance and so on.

4. High degree of automation, to achieve unmanned automated production processes.

Parameter List

Custom Options

Flat decks or fixtures customized for specific loads.

Custom deck configurations including built-in scales and lift/tilt/rotate capabilities.

Track or trackless, non-guided steering. Alternative drive and steering systems including gear reducer axle drives and individually-controlled drive wheels.

Fixed or variable speeds with forward/reverse function.

Drives with acceleration/deceleration capabilities.

Variety of operator control systems including fixed user interface, pendant control on coil cord, and radio-controlled remote operation.

Safety features including horns, flashing lights, e-stops, bumpers and collision avoidance systems.

Application

This series transfer carts can be widely applied in many fields, such as automobile, steel factory, heavy industry, light industry, machinery, petroleum, metallurgy, mining, chemical industry, engineering, aerospace, coal, nuclear energy, shipyard, water conservancy, etc.

Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to manufacture and sell lifting and material handling equipment with 15 years experience. NEWLD is a professional and international handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.

Our company is located in Xinxiang city, Henan province, covering an area of 33,300 square meters. It has a modern large-scale factory building, world-advanced production equipment and office equipment. The company has more than 150 employees, including 8 engineers and more than 20 technicians. The company has a first-class research and design team, which can undertake the design and production of various non-standard handling equipment.

NEWLD can not only provide transfer cart quotations, but also provide you with satisfactory handling solutions.

We can produce 1-1500 ton range of various tonnage of AGV, RGV, rail transfer cart, trackless transfer cart, flatbed trailer, towing tractor, locomotive turntable, industrial turntable and so on with more than 90 products. Customized all kinds of function required, such as turning, lifting, tilting, climbing, roller, anti-high temperature, anti-explosion, etc.. Newld also can provide transfer cart parts, including rail wheel, rail and rail accessories, industrial winch and so on.

Our products have a wide application field including metallurgy industry, machinery manufacturing industry, steel mill, mine industry, power industry, mold industry, automobile assembly industry, shipyard industry etc.

Our product has been exported to more than 90 countries and regions, such as Indonesia, America, Russia, Brazil, United Arab Emirates, Pakistan, Middle East, Saudi Arabia, Bangladesh, Philippines, Canada, Azerbaijani, Kuwait, Dubai, Egypt, Nepal, Vietnam, Laos, Myanmar, Germany, etc.
