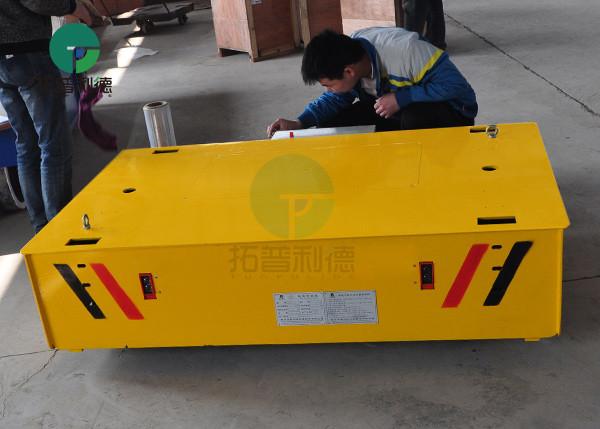

    high temperature proof 50 ton railway transfer electric motorized cart for dies

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE,ISO9000
    Price : $3000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

    high temperature proof 50 ton railway transfer electric motorized cart for dies

    high temperature proof 50 ton railway transfer electric motorized cart for dies


    Brief Introduction --- motorized cart for dies


    About the motorized cart for dies, the batteries are installed in the transport platform. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the transport platform on rail, for example, start, stop, go forward and backward, adjust the speed and so on. It can get rid of the limitation of cables and remote control, which makes the operation more convenient, safe, which can be applied in long distance rail transit system.

    high temperature proof 50 ton railway transfer electric motorized cart for dies

    Product Funcation --- motorized cart for dies


    1. Load-Bearing Transport

    Load-bearing transport is the most basic and important function of transport platform

    2. Turning

    This series of battery powered transport platform have the function of running on S-shaped, C-shaped, curved rails, etc.

    3. Lift

    The hydraulic lift system can be installed on the battery powered transport platform to achieve lifting and other functions

    4. Side Flip

    The flat car can realize self-discharging by the hydraulic device

    5. Speed

    Variable speed from 0 to 20m/min

    6. Others

    Our company can research and develop the corresponding non-standard transfer platform to achieve the required functions according to the customers’ requirements.


    high temperature proof 50 ton railway transfer electric motorized cart for dies

    Working Environment --- motorized cart for dies


    1. Environment temperature: -20°C-40°C

    2. Environment Humidity: Relative Humidity ≤ 70%

    3. Environment PH Degree: Working in a Neutral or Approaching Neutral

    4. Environment Electrical Sustainability: 25%

    5. Air Cleanliness: Non-corrosive, non-flammable,non-explosive gas


    high temperature proof 50 ton railway transfer electric motorized cart for dies

    Parameter List --- motorized cart for dies


    Model

    KPX-2T

    KPX-5T

    KPX-10T

    KPX-20T

    KPX-30T

    KPX-50T

    KPX-100T

    KPX-150T

    Rated load (T)

    2

    5

    10

    20

    30

    50

    100

    150

    Table size(mm)

    length

    2000

    3500

    3600

    4000

    4500

    5500

    6500

    10000

    Width

    1500

    2000

    2000

    2200

    2200

    2500

    2800

    3000

    Height

    450

    500

    500

    550

    600

    650

    900

    1200

    Wheel Base (mm)

    1200

    2500

    2600

    2800

    3200

    4200

    4900

    7000

    Rail Inner Gauge (mm)

    1200

    1435

    1435

    1435

    1435

    1435

    2000

    2000

    Wheel Diameter(mm)

    Φ280

    Φ300

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity(Nos)

    4

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    50

    50

    75

    75

    Motor Power (Kw)

    1

    1.2

    1.6

    2.2

    3.5

    5

    10

    15

    Battery Capacity (Ah)

    180

    180

    160

    180

    250

    330

    440

    600

    Battery Voltage (V)

    24

    36

    48

    48

    48

    48

    72

    72

    Running speed (m/min)

    0-30

    0-30

    0-25

    0-25

    0-25

    0-20

    0-20

    0-18

    Running Time When Full Load(Hours)

    4.32

    5.4

    4.8

    4

    3.5

    3.3

    3.2

    3.2

    Running Distance for One Charge(Km)

    6.5

    8.1

    7.2

    4.8

    4.2

    4

    3.8

    3.2

    Max Wheel Load (KN)

    14.4

    25.8

    42.6

    77.7

    110.4

    174

    343.8

    265.2

    Reference Weight (t)

    2.8

    3.6

    4.2

    5.9

    6.8

    8

    14.5

    26.8

    Recommended Rail Model

    P15

    P18

    P18

    P24

    P38

    P43

    QU100

    QU100


    Application --- motorized cart for dies


    The transfer machine is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc
