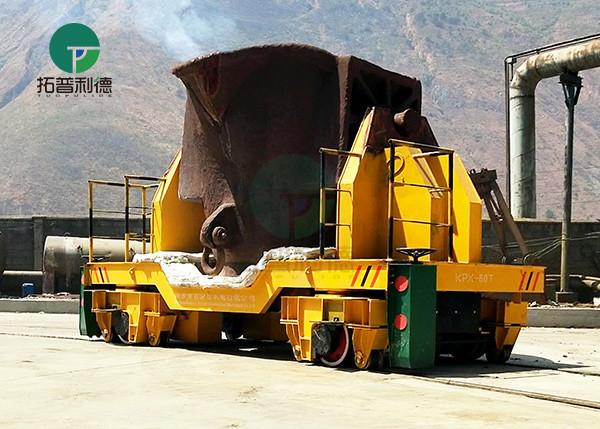

5-25 Ton Large Capacity Anti-Heat Hot Metal Ladle Car for Steel
Making Plant
Brief Introduction --- Hot Metal Ladle Transfer Cart
About the 5-25 Ton Large Capacity Anti-Heat Hot Metal Ladle Cart
for Steel Making Plant, its special is designed for high temperature ladle transport in
the steel manufacturing factory.
The batteries are installed in the hot metal ladle transfer cart.
The batteries supply electricity to the DC motor through the
electrical control system. We use this principle to operate the hot
metal ladle transfer cart, for example, start, stop, go forward and
backward, adjust the speed and so on.
It can get rid of the limitation of cables and remote control,
which makes the operation more convenient, safe, which can be
applied in long distance rail transit system.
Product Details--- Hot Metal Ladle Transfer Cart
Cart Frame
The frame is a frame structure welded by two longitudinal beams,
several cross beams and bench panels. Under the bench plate, all
the steel plates are welded into meshes, so that the force on the
frame is uniform. It can also be customized according as per
demands.
Rail Wheel
The wheel adopts the crane special wheel, the wheel uses ZG55, the
whole quenching, the wheel tread and the wheel rim inner hardness
hb320-380, the depth 20mm, after the wheel is assembled, the
rotation is flexible.It has the features of high strength and long
wearing life.
Product Funcation --- Hot Metal Ladle Transfer Cart
1. Load-Bearing Transport
Load-bearing transport is the most basic and important function of hot metal ladle transfer cart.
2. Turning
This series of hot metal ladle transfer carthave the function of running on S-shaped, C-shaped, curved rails,
etc.
3. Lift
The hydraulic lift system can be installed on the hot metal ladle transfer cart to achieve lifting and other functions
4. Side Flip
The hot metal ladle transfer cart can realize self-discharging by the hydraulic device
5. Safety Devices
Safety devices can be installed on the hot metal ladle transfer cart, for example, proximity switches, dead man stop, alarm systems,
buffers to achieve the corresponding safety functions.
6. Others
Our company can research and develop the corresponding non-standard
transfer carts to achieve the required functions according to the
customers’ requirements.
Customized Options --- Hot Metal Ladle Transfer Cart
1. Load capacity, table size and rail gauge can be customized.
2. Remote radio control (imported or made in China)
3. Automatic stop when detecting obstacle or person, limit switches
(to limit travel)
4. Battery type(free of maintenance battery, lithium battery,
explosion-proof battery and anti-high temperature battery)
5. Motor(DC motor with brush and DC motor brushless)
6. Electrical parts can be optional (made in China or imported)
Parameter List --- Hot Metal Ladle Transfer Cart
Model | KPX-2T | KPX-5T | KPX-10T | KPX-20T | KPX-50T | KPX-100T | KPX-150T |
Rated load (T) | 2 | 5 | 10 | 20 | 50 | 100 | 150 |
Table size(mm) | length | 2000 | 3500 | 3600 | 4000 | 5500 | 6500 | 10000 |
Width | 1500 | 2000 | 2000 | 2200 | 2500 | 2800 | 3000 |
Height | 450 | 500 | 500 | 550 | 650 | 900 | 1200 |
Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 4200 | 4900 | 7000 |
Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 |
Wheel Diameter(mm) | Φ280 | Φ300 | Φ300 | Φ350 | Φ500 | Φ600 | Φ600 |
Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 5 | 10 | 15 |
Battery Capacity (Ah) | 180 | 180 | 160 | 180 | 330 | 440 | 600 |
Battery Voltage (V) | 24 | 36 | 48 | 48 | 48 | 72 | 72 |
Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 |
Running Time When Full Load(Hours) | 4.32 | 5.4 | 4.8 | 4 | 3.3 | 3.2 | 3.2 |
Running Distance for One Charge(Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4 | 3.8 | 3.2 |
Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 174 | 343.8 | 265.2 |
Reference Weight (t) | 2.8 | 3.6 | 4.2 | 5.9 | 8 | 14.5 | 26.8 |
Recommended Rail Model | P15 | P18 | P18 | P24 | P43 | QU100 | QU100 |
Application --- Hot Metal Ladle Transfer Cart
The hot metal ladle transfer carts are mainly applied in assembly
line (ring production line, loop production line), metallurgy
industry (steel ladle), warehouse transport, ship industry
(maintenance, assemble, container transport), workpiece transport
in workshop, lathe transport, steel factory (steel billet, steel
plate, steel coil, steel pipe, section steel, steel structure),
construction (bridge, simple building, concrete, concrete column),
petroleum industry (oil pump, sucker rod and parts), energy
(polycrystalline silicon, generator, windmill), chemical industry
(electrolytic cell, retort etc), railway (rail maintenance, rail
welding, train tractor).
