Custom Multi-directional Battery Transfer Trackless Rail Flat Cart
On Rubber Wheel

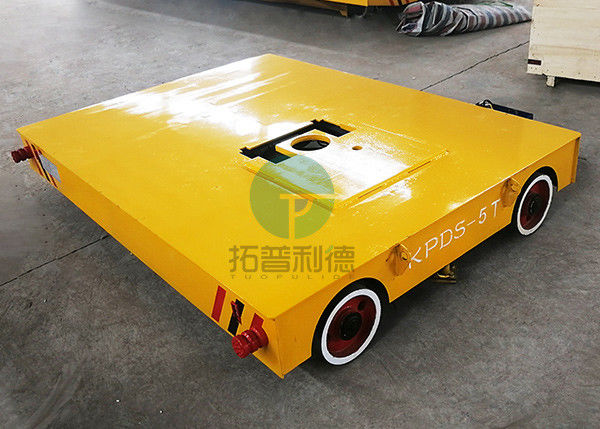

Brief Introduction of Trackless Rail Flat Cart
The Custom Multi-directional Battery Transfer Trackless Rail Flat
Cart On Rubber Wheel consist of steel structure bearing frame, driving device, DC motor,
storage battery, intelligent charger, fixed wheels, gear train,
steering gear, running gear, electric control box and so on.
trackless rail flat cart is a kind of trackless motorized material
transfer cart.
It is powered by storage battery. The battery is installed in the
transfer cart and we also equip intelligent charger for it. The
transfer cart is controlled to go forward, backward, turn left,
turn right, adjust speed through PLC and speed controller. It can
turn around on the cement and concrete floor.
Custom Options of Electric Flat Transfer Vehicle
Flat decks or fixtures customized for specific loads.
Custom deck configurations including built-in scales and
lift/tilt/rotate capabilities.
Track or trackless, non-guided steering. Alternative drive and
steering systems including gear reducer axle drives and
individually-controlled drive wheels.
Fixed or variable speeds with forward/reverse function.
Drives with acceleration/deceleration capabilities.
Variety of operator control systems including fixed user interface,
pendant control on coil cord, and radio-controlled remote
operation.
Safety features including horns, flashing lights, e-stops, bumpers
and collision avoidance systems.
Application of Electric Flat Transfer Vehicle
The trackless rail flat cart can be applied in assembly line (ring
production line, loop production line), metallurgy industry (steel
ladle), warehouse transport, ship industry (maintenance, assemble,
container transport), work piece transport in workshop, lathe
transport, steel factory (steel billet, steel plate, steel coil,
steel pipe, section steel, steel structure), construction (bridge,
simple building, concrete, concrete column), petroleum industry
(oil pump, sucker rod and parts), energy (poly crystalline silicon,
generator, windmill), chemical industry (electrolytic cell, retort
etc), etc.
Parameter of Electric Flat Transfer Vehicle
Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-80T | BWP-100T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 80 | 100 |
| Table size | length(L) | 2000 | 2300 | 2400 | 3500 | 5500 | 6500 | 6600 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2600 | 2800 | 3000 |
| Height(H) | 450 | 500 | 600 | 700 | 800 | 950 | 1200 |
| Wheel Base (mm) | 1080 | 1650 | 2800 | 1650 | 2000 | 1950 | 2000 |
| Axle Base (mm) | 1380 | 1850 | 1435 | 2700 | 2850 | 3500 | 4000 |
| Wheel Diameter(mm) | Φ250 | Φ400 | Φ350 | Φ450 | Φ600 | Φ600 | Φ600 |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
| Running speed (m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 2*1.2 | 2*2.2 | 2*4.5 | 2*5.5 | 2*7.5 | 30 | 40 |
| Battery Capacity(Ah) | 250 | 250 | 400 | 450 | 500 | 800 | 1000 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load | 2.5 | 2.8 | 2.2 | 2 | 2.5 | 2 | 1.9 |
| Running Distance for one Charge(Km) | 3 | 3.4 | 2.7 | 2.4 | 3 | 32.4 | 2.3 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 185 | 190 |
| Reference Weight (t) | 2.3 | 4.2 | 5.9 | 6.8 | 8 | 14.6 | 26.8 |
About Us
Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to
manufacture and sell lifting and handling equipment. We can produce
1-500 ton range of various tonnage of KPD rail low voltage series,
KPJ cable reel series, KPC safety sliding line series, KPX battery
powered series, BWP rubber wheel transfer cart series, KPT towed
cable series, KP non-power type seven series which including
turning electric flat car, trackless electric flat car, ladle car,
ferry electric flat car, hydraulic lifting electric transfer car,
electric winch, rail wheel and so on more than 90 products.
