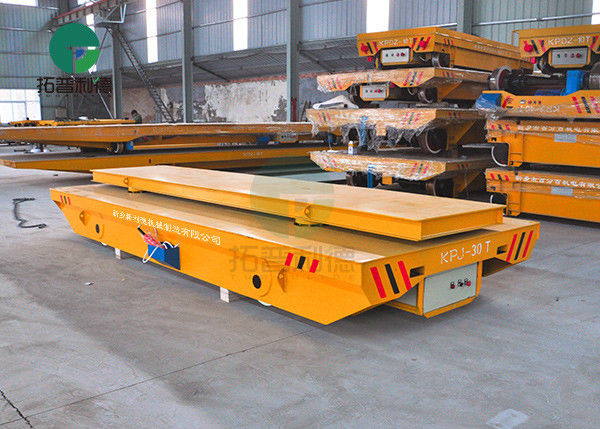

    30 Ton Heavy Duty Material Handling Platform Cable Powered Electric Flat Transfer Cart With Lifting System

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPJ
    Certification : CE,ISO9000
    Price : $4000-$10000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

    30 Ton Heavy Duty Material Handling Platform Cable Powered Electric Flat Transfer Cart With Lifting System

    30 Ton Heavy Duty Material Handling Platform Cable Powered Electric Flat Transfer Cart With Lifting System


    Brief Introduction --- Electric Flat Transfer Cart

    The 30 Ton Heavy Duty Material Handling Platform Cable Powered Electric Flat Transfer Cart With Lifting System which is running on the rails. It is designed for material handling from one bay to another in the working site. As the rail electric flat transfer carts are equipped with steel wheels and move on steel rails, and the very low friction between steel and steel, the rail electric flat transfer carts are suited to very high loading capacities.

    30 Ton Heavy Duty Material Handling Platform Cable Powered Electric Flat Transfer Cart With Lifting System


    Working Principle --- Electric Flat Transfer Cart

    The electric flat transfer cart is the cable reels powered, the transfer vehicle gets power AC 380v through the device of cable reel, and the motor is controlled by the power through AC control system that make the electric flat transfer cart to start, stop, go forward, backward, adjust the speed and so on.

    To avoid damage to the cable, add a cable reel as a retracting/discharging device. Due to the limitation of the cable, it is suitable for a short-distance rail transportation system, but its structure is simple and the price is low. Therefore, it is also a common rail transportation equipment in the workshop.

    The power supply can be customized according as your true demands, such as battery powered, low voltage rail powered, busbar powered, etc.


    30 Ton Heavy Duty Material Handling Platform Cable Powered Electric Flat Transfer Cart With Lifting System


    Custom Options --- Electric Flat Transfer Cart


    1. load capacity, table size and rail gauge can be customized.

    2. Options:

    a. Remote radio control (imported or made in China)

    b. Automatic stop when detecting obstacle or person, limit switches (to limit travel)

    c. Automatic cutting off power on rail

    3. Variable speed device (VFD)

    4. Electrical parts can be optional (made in China or imported)

    5. Can be designed to meet special working environment such as high temperature.

    30 Ton Heavy Duty Material Handling Platform Cable Powered Electric Flat Transfer Cart With Lifting System


    Parameter List --- Electric Flat Transfer Cart


    Model

    KPJ-2T

    KPJ-5T

    KPJ-10T

    KPJ-20T

    KPJ-30T

    KPJ-50T

    KPJ-100T

    KPJ-150T

    Rated load (T)

    2

    5

    10

    20

    30

    50

    100

    150

    Table size

    length(L)

    2000

    3500

    3600

    4000

    4500

    5500

    6500

    10000

    Width(W)

    1500

    2000

    2000

    2200

    2200

    2500

    2800

    3000

    Height(H)

    450

    450

    500

    550

    600

    650

    850

    1200

    Wheel Base (mm)

    1200

    2500

    2600

    2800

    3200

    4200

    4900

    7000

    Rail Inner Gauge (mm)

    1200

    1435

    1435

    1435

    1435

    1435

    2000

    2000

    Wheel Diameter(mm)

    Φ270

    Φ300

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity(Nos)

    4

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    50

    50

    75

    75

    Running speed (m/min)

    0-30

    0-30

    0-25

    0-25

    0-25

    0-20

    0-20

    0-18

    Motor Power (Kw)

    0.8

    1.5

    1.5

    2.5

    4

    5.5

    11

    15

    Max Wheel Load (KN)

    14.4

    25.8

    42.6

    77.7

    110.4

    174

    343.8

    265.2

    Reference Weight (t)

    2.5

    3.5

    4

    5.6

    6.5

    7.8

    14.1

    26.2

    Recommended Rail Model

    P15

    P18

    P18

    P24

    P38

    P43

    QU100

    QU100


    Application --- Electric Flat Transfer Cart


    This series electric flat transfer cart can be widely applied in many fields, such as automobile, steel factory, heavy industry, light industry, machinery, petroleum, metallurgy, mining, chemical industry, engineering, aerospace, coal, nuclear energy, shipyard, water conservancy, etc.
