Heavy Load Motorized Industrial Interbay Reliable Material Transfer
Trolley for Hot Pipes Handling
Brief Introduction --- Reliable Material Transfer Trolley
About the 35 Ton Custom Steel Pipe Transport Rail-Bound Transfer
Carriages with Battery Drive, the batteries are installed in the transfer carriages. The
batteries supply electricity to the DC motor through the electrical
control system. We use this principle to operate the rail-bound
transfer carriages, for example, start, stop, go forward and
backward, adjust the speed and so on. It can get rid of the
limitation of cables and remote control, which makes the operation
more convenient, safe, which can be applied in long distance rail
transit system.

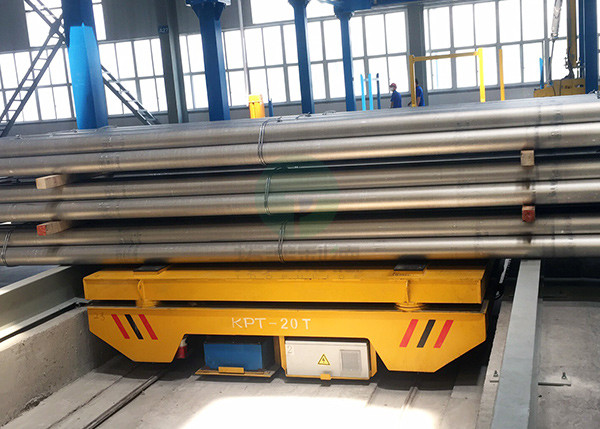

Product Details--- Reliable Material Transfer Trolley
Product Advantages --- Reliable Material Transfer Trolley
The kind of reliable material transfer trolley is with high level
automation;
Excellent gear reducer and motor with high quality, assemblied
together perfectly;
Safe devices are installed on the reliable material transfer
trolley;
The turning can be realized for this kinds of electric material
transfer trolley, as "s", arc-shaped", "curved rail"...;
Customization can be supported;
With large capacity and high quality;
It can be applied in various occasions as high temperature,
ponding, dust, scrap iron...;
The hydraulic lifting device can be equipped as per customers'
demand;
The V frame can be installed for rounded material as per your need;
safety, flexibility, stable start, big starting torque, small
capacity to the gear reducer
Low voltage, long lifetime;
The running distance is not limited.
Working Environment --- Reliable Material Transfer Trolley
1. Environment temperature: -20°C-40°C
2. Environment Humidity: Relative Humidity ≤ 70%
3. Environment PH Degree: Working in a Neutral or Approaching
Neutral
4. Environment Electrical Sustainability: 25%
5. Air Cleanliness: Non-corrosive, non-flammable,non-explosive gas
Parameter List --- Reliable Material Transfer Trolley
Model | KPX-2T | KPX-5T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-100T | KPX-150T |
Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 |
Table size(mm) | length | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 |
Height | 450 | 500 | 500 | 550 | 600 | 650 | 900 | 1200 |
Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 |
Wheel Diameter(mm) | Φ280 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3.5 | 5 | 10 | 15 |
Battery Capacity (Ah) | 180 | 180 | 160 | 180 | 250 | 330 | 440 | 600 |
Battery Voltage (V) | 24 | 36 | 48 | 48 | 48 | 48 | 72 | 72 |
Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 |
Running Time When Full Load(Hours) | 4.32 | 5.4 | 4.8 | 4 | 3.5 | 3.3 | 3.2 | 3.2 |
Running Distance for One Charge(Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.2 | 4 | 3.8 | 3.2 |
Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 |
Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 | QU100 |
Application --- Reliable Material Transfer Trolley
Our reliable material transfer trolley not only can transport all
kinds of pipes in steel mill, it is also can be widely applied in
Metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial,
Light Industrial, Mold Maker, Construction, Machinery maker,
Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and
Space as well as Military, industries and so on to transfer and
handling equipment or material from workshop to workshop or from
bay to warehouse.
