Heavy load factory transport automatic cable power rail mounted
transfer trailer for dies

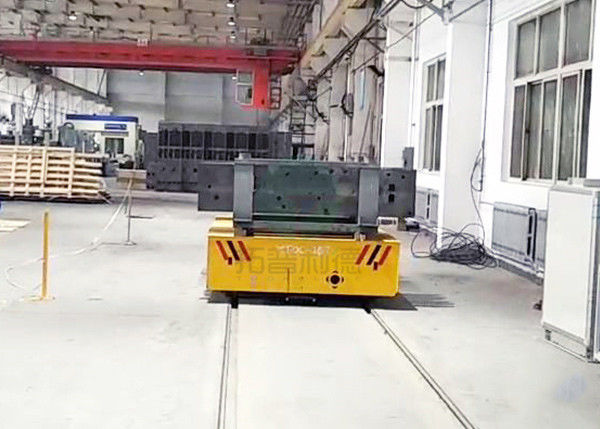

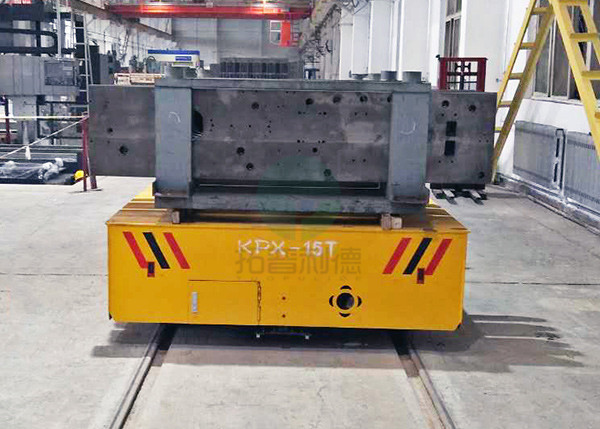

Brief Introduction --- Rail Mounted Transfer Trailer For Dies
The rail mounted transfer trailer for dies is an electric diven
material handling transfer trailer used in the industrail fields
cargoes transport.
This series rail mounted transfer trailer is powered by cable reel.
The powered supply also can be choosed according as per demands,
such as battery powered, rail powered, busbar powered, diesel
powered, etc.
Product Funcation --- Rail Mounted Transfer Trailer For Dies
1. Load-Bearing Transport
Load-bearing transport is the most basic and important function of rail mounted transfer trailer for dies.
2. Turning
This series of rail mounted transfer trailer for dies have the function of running on S-shaped, C-shaped, curved rails,
etc.
3. Lift
The hydraulic lift system can be installed on the rail mounted transfer trailer for dies to achieve lifting and other functions
4. Side Flip
The rail mounted transfer trailer for dies can realize self-discharging by the hydraulic device
5. Safety Devices
Safety devices can be installed on the rail mounted transfer trailer for dies, for example, proximity switches, dead man stop, alarm systems,
buffers to achieve the corresponding safety functions.
6. Others
Our company can research and develop the corresponding non-standard rail mounted transfer trailer for dies to achieve the required functions according to the customers’
requirements.
Advantages --- Rail Mounted Transfer Trailer For Dies
1. Convenient maintenance: Lubricate some joint active parts, such
as wheels, bearings, etc. Others mainly focus on inspection and
cleaning.
2. Shorter shutdown maintenance time: Convenient and quick, short
downtime, low maintenance costs.
3. Environmental impact equal to zero: Low noise, no emissions.
4. The control performance is better: The operation control is
simple and convenient, and it is flexible, which greatly reduces
the labor intensity of the operator, and it is very helpful for
improving the working efficiency and the accuracy of the work.
Parameter List --- Rail Mounted Transfer Trailer For Dies
Model | KPJ-2T | KPJ-5T | KPJ-10T | KPJ-20T | KPJ-30T | KPJ-50T | KPJ-100T | KPJ-150T |
Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 |
Table size | length(L) | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 |
Height(H) | 450 | 450 | 500 | 550 | 600 | 650 | 850 | 1200 |
Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 |
Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 |
Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 |
Motor Power (Kw) | 0.8 | 1.5 | 1.5 | 2.5 | 4 | 5.5 | 11 | 15 |
Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 |
Reference Weight (t) | 2.5 | 3.5 | 4 | 5.6 | 6.5 | 7.8 | 14.1 | 26.2 |
Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 | QU100 |
Application --- Rail Mounted Transfer Trailer For Dies
This series rail mounted transfer trailer for dies can be widely
applied in many fields, such as automobile, steel factory, heavy
industry, light industry, machinery, petroleum, metallurgy, mining,
chemical industry, engineering, aerospace, coal, nuclear energy,
shipyard, water conservancy, etc.
