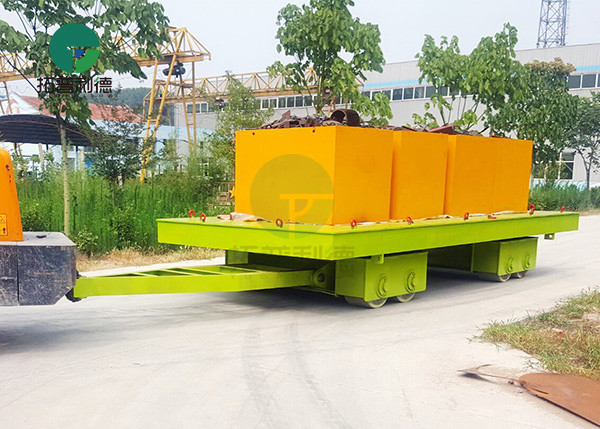

Industrial Material Handling Trackless Transfer Trailer Non Motor
Transfer Cart With Draw Bar
Product Description --- Material Handling Trackless Transfer
Trailer
The Industrial Material Handling Trackless Transfer Trailer Non Motor
Transfer Cart With Draw Bar is important equipment for modern logistic transportation, which
is very effective and simple way to improve the production
efficiency. The transfer trailer non motor transfer cart has
several advantages, such as high bearing capacity, high efficiency,
and lower cost. Usually one or more non motor transfer cart could
be towed by one tractor. The material handling trackless transfer
trailer is widely used in a lot of place, such as airports, sea
ports, railway stations, factories and large warehouses, which will
greatly improve the transportation efficiency and reduce the cost
of forklift and labor.
Advantages --- Material Handling Trackless Transfer Trailer
1.The trackless transfer trailer will apply pressed-on solid rubber
tire, which makes the trailer with low height but heavy load
capacity.
2.The wheels quantity of the material handling trackless transfer
trailer non motor transfer cart is from 8-16, and service life of
wheels will be over than 5 years, which is very safe, reliable and
cost saving
3.We will use heavy steel to build the structure of the non motor
transfer cart, which will have a service life at least 20 years
4.Several non motor transfer cart could be towed together
5.Running distance of non motor transfer cart is unlimited;
6.The height of towing hook is adjustable to adapt different
tractor, forklift. There are two springs on the towing device,
which will protect the trailer and cargo when it is started or
suddenly stopped.
7.The turning device is large rotation support as the fifth wheel,
which is usually used in excavating machinery and truck crane.
8.Trackless transfer trailer applies balance beam for the wheels to
make the trailer available on the uneven ground
9.The frame of non motor transfer cart is made of steel beam, so the load ability of the trackless
transfer trailer is strong and it is not easy to bend over and
avoid the deformation, which extends the service time;
10.The non motor transfer cart applies balance beam for the wheels
to make the trailer available on the uneven ground
11.The non motor transfer cart will be equipped with connector or
pin to cooperate with the tractor or forklift.
Parameter List --- Material Handling Trackless Transfer Trailer
| Rated Load(Ton) | 2 | 5 | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
| Table Size(mm) | Length | 2000 | 2200 | 2300 | 2400 | 2400 | 3500 | 3500 | 5500 | 6600 |
| Width | 1500 | 2000 | 2000 | 2100 | 2200 | 2200 | 2200 | 2500 | 2600 |
| Height | 450 | 500 | 550 | 600 | 600 | 700 | 700 | 800 | 1200 |
| Wheel Base(mm) | 1080 | 1650 | 1650 | 1600 | 1650 | 1650 | 1650 | 2000 | 2000 |
| Axle Base(mm) | 1380 | 1680 | 1700 | 1830 | 1850 | 2700 | 2700 | 3600 | 2850 |
| Wheel Quantity(Pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Wheel Diameter(mm) | Φ250 | Φ300 | Φ350 | Φ400 | Φ400 | Φ450 | Φ450 | Φ500 | Φ600 |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 |
| Reference Wight(Ton) | 2.3 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 |
| The size can be customized as per demands. |
Custom Options --- Material Handling Trackless Transfer Trailer
Flat decks or fixtures customized for specific loads.
Custom deck configurations including built-in scales and
lift/tilt/rotate capabilities.
Track or trackless, non-guided steering. Alternative drive and
steering systems including gear reducer axle drives and
individually-controlled drive wheels.
Fixed or variable speeds with forward/reverse function.
Drives with acceleration/deceleration capabilities.
Variety of operator control systems including fixed user interface,
pendant control on coil cord, and radio-controlled remote
operation.
Safety features including horns, flashing lights, e-stops, bumpers
and collision avoidance systems.
