Battery powered motorized 15 ton crane transfer cart applied in working site

Brief Introduction - 15 Ton Crane Transfer Cart

KPX series 15 ton crane transfer carts are battery powered. The transfer cart can be used both on the “S” and arc-shaped railways. This series transfer carts are more safe and flexible and running distance is not limited. It has no strict requirement for the construction of the railway. The crane transfer cart is suitable to be used in the long distance transportation, and it is a great solution of industry heavy materials handling.

Advantages - 15 Ton Crane Transfer Cart

No need install rail, no any damage to the floor

It can realized double way moving and 360 degree turning

DC drive and heavy loading capacity

small turning radius, flexible operation

Braking distance is short, and have alarming system

Working principle - 15 Ton Crane Transfer Cart

The battery are installed in the carts. The battery supplies electricity to the DC motor through the electrical control system. We use this principle to make the cart start, stop, move forward, move backward, adjust the speed etc.

Application - 15 Ton Crane Transfer Cart

The battery operated transfer cart is applied to transfer steel ladles or steel scrap ladle in steel factory and meturallgy plant. Generally the load capacity is large, can reach to 150 tons. It is commonly applied in steel plant, mechallurgy industry, aluminum factory, plastic pipes factory, etc. to transfer rounded material, from producing line to store.

Parameters - 15 Ton Crane Transfer Cart

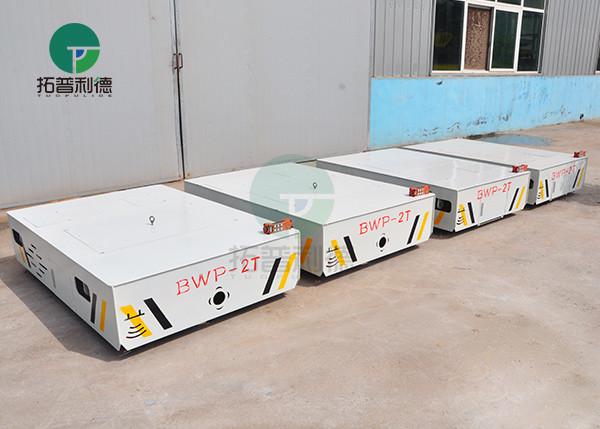

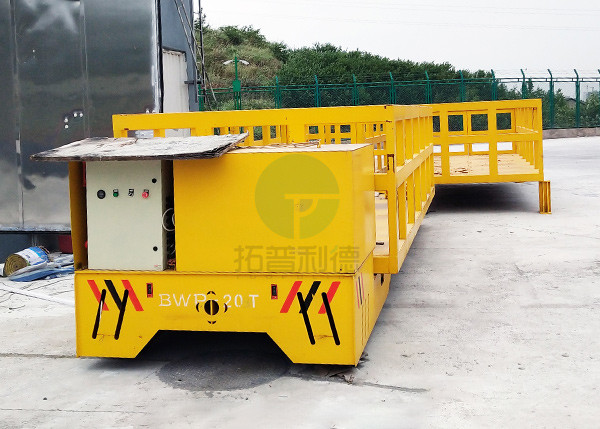

Model		BWP-2T	BWP-10T	BWP-20T	BWP-30T	BWP-50T	BWP-80T	BWP-100T
Rated load (T)		2	10	20	30	50	80	100
Table size	length(L)	2000	2300	2400	3500	5500	6500	6600
	Width(W)	1500	2000	2200	2200	2600	2800	3000
	Height(H)	450	500	600	700	800	950	1200
Wheel Base (mm)		1080	1650	2800	1650	2000	1950	2000
Axle Base (mm)		1380	1850	1435	2700	2850	3500	4000
Wheel Diameter(mm)		Φ250	Φ400	Φ350	Φ450	Φ600	Φ600	Φ600
Wheel Quantity(Nos)		4	4	4	4	4	4	8
Ground Clearance (mm)		50	50	50	50	50	75	75
Running speed (m/min)		0-25	0-25	0-20	0-20	0-20	0-20	0-18
Motor Power (Kw)		2*1.2	2*2.2	2*4.5	2*5.5	2*7.5	30	40
Battery Capacity(Ah)		250	250	400	450	500	800	1000
Battery Voltage(V)		24	48	48	48	72	72	72
Running Time When Full Load		2.5	2.8	2.2	2	2.5	2	1.9
Running Distance for one Charge(Km)		3	3.4	2.7	2.4	3	32.4	2.3
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	185	190
Reference Weight (t)		2.3	4.2	5.9	6.8	8	14.6	26.8

Packing & Delivery - 15 Ton Crane Transfer Cart

The crane transfer cart will be packed by the tarp, the parts will be packed by polywood case.
