Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart

Xinxiang New Leader Machinery Manufacturing Co., Ltd
Contact Now
    Buy cheap Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart from wholesalers

    Buy cheap Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart from wholesalers
    • Buy cheap Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart from wholesalers
    • Buy cheap Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart from wholesalers
    • Buy cheap Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart from wholesalers
    • Buy cheap Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart from wholesalers

    Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : Rail Transfer Cart
    Certification : CE,ISO9000
    Price : $3000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

    Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart

    Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart


    Introduction --- Material Handling Transfer Cart

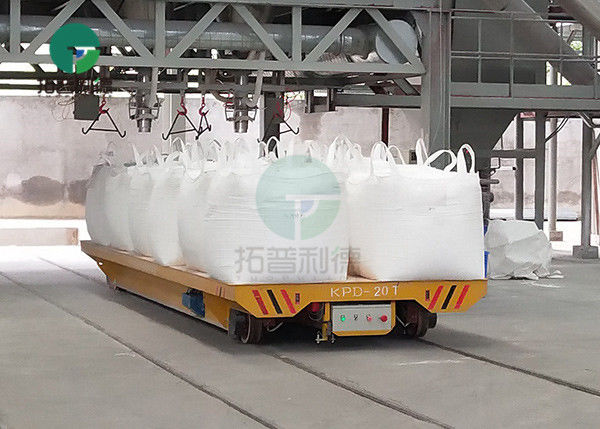

    The custom industrial heavy duty electric powered material handling transfer cart is an electric material transport cart used in the industial fields.

    This kinds electric material handling transfer cart can be powered by battery, low voltage rails, cable reel, busbar, etc. It can be customized according as per demands.


    Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart


    Customized Options --- Material Handling Transfer Cart


    Flat decks or fixtures customized for specific loads.

    Custom deck configurations including built-in scales and lift/tilt/rotate capabilities.

    Track or trackless, non-guided steering. Alternative drive and steering systems including gear reducer axle drives and individually-controlled drive wheels.

    Fixed or variable speeds with forward/reverse function.

    Drives with acceleration/deceleration capabilities.

    Variety of operator control systems including fixed user interface, pendant control on coil cord, and radio-controlled remote operation.

    Safety features including horns, flashing lights, e-stops, bumpers and collision avoidance systems.


    Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart

    Parameter List --- Material Handling Transfer Cart


    Rated load (T)

    2

    10

    20

    30

    50

    63

    150

    Table size

    length(L)

    2000

    3600

    4000

    4500

    5500

    5600

    10000

    Width(W)

    1500

    2000

    2200

    2200

    2500

    2500

    3000

    Height(H)

    450

    500

    550

    600

    650

    700

    1200

    Wheel Base (mm)

    1200

    2600

    2800

    3200

    4200

    4300

    7000

    Rail Inner Gauge (mm)

    1200

    1435

    1435

    1435

    1435

    1435

    2000

    Wheel Diameter(mm)

    Φ270

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    50

    75

    75

    Running speed (min)

    0-25

    0-25

    0-20

    0-20

    0-20

    0-20

    0-18

    Max Wheel Load (KN)

    14.4

    42.6

    77.7

    110.4

    174

    221.4

    265.2

    Reference Weight (t)

    2.8

    4.2

    5.9

    6.8

    8

    10.8

    26.8

    Recommended Rail Model

    P15

    P18

    P24

    P38

    P43

    P50

    QU100


    Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart


    Application --- Material Handling Transfer Cart


    The electric power material handling transfer carts are widely applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).


    Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart


    Delivery & Package --- Material Handling Transfer Cart

    Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart


    Customer Visit --- Material Handling Transfer Cart


    Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart


    Processing --- Material Handling Transfer Cart


    Custom Industrial Heavy Duty Electric Powered Material Handling Transfer Cart


    Our After-Sale Service


    Our company promises to “produce high-quality products, provide satisfactory services, and strive to create the first brand of transfer cart”. In order to ensure that your interests are realized, we have established a rapid quality information feedback system and a technically sturdy and well-resourced technical service team. We are enthusiastic to provide you with the following services:

    Our company promises that the designed safety factor of the transfer cart loading should not be lower than 120%. According to user's specific conditions, free design auxiliary equipment or foundation drawings, and free provide technical services or drawing. Free send personal to work site install or debug or guide the installation. While promptly solving the quality problems of the sold products, the after-sales service personnel are obliged to provide users with technical consultation, technical training and answering questions relating to other products at no cost.
