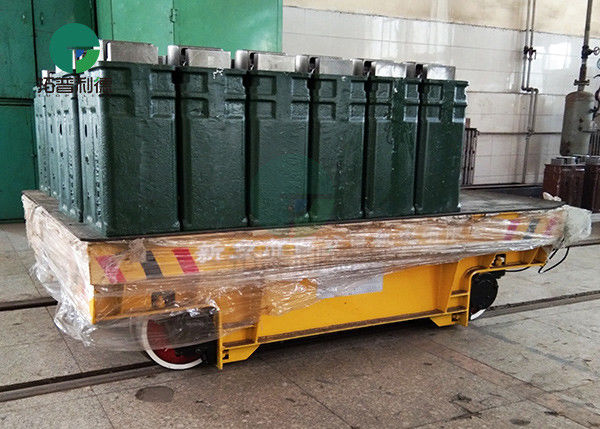

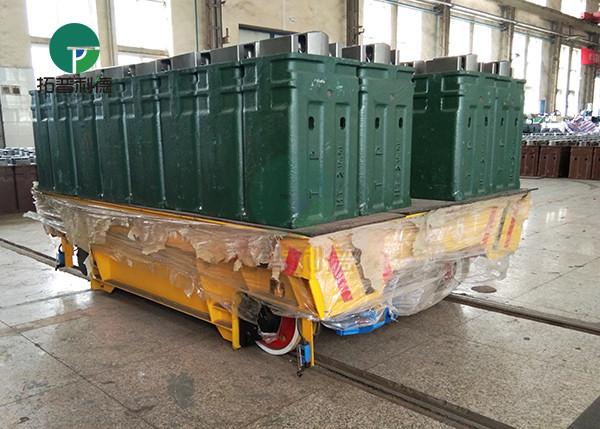

    Die Plant Battery Powered Automatic Mold Transport Trolley On Rail

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX-Mold Transport Trolleys
    Certification : CE,ISO9000
    Price : $3000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

    Die Plant Battery Powered Automatic Mold Transport Trolley On Rail

    Die Plant Battery Powered Automatic Mold Transport Trolley On Rail


    Product Introduction --- Mold Transport Trolley


    KPX series mold transport trolley is powered by battery. The battery installed in the transport trolleys, and the battery driven the motor to make the battery powered mold transport trolley working.

    Compare wtih KPJ, KPD series, it is of the greater flexibility in security and mobility.The running distance is not limited and without demand of rail isolation, so the construction is convenient and the cost is low.

    This type of mold transport trolleys can provide the following optional parts for the customer to further improve the efficiency of (1) maintenance-free battery (2) import Promise speed control, dual speed control (3) the import of industrial wireless remote control.


    Die Plant Battery Powered Automatic Mold Transport Trolley On Rail

    Product Details --- Mold Transport Trolley


    Die Plant Battery Powered Automatic Mold Transport Trolley On Rail


    Parameter --- Mold Transport Trolley


    Model

    KPX-2T

    KPX-10T

    KPX-20T

    KPX-30T

    KPX-50T

    KPX-63T

    KPX-150T

    Rated load (T)

    2

    10

    20

    30

    50

    63

    150

    Table size

    length(L)

    2000

    3600

    4000

    4500

    5500

    5600

    10000

    Width(W)

    1500

    2000

    2200

    2200

    2500

    2500

    3000

    Height(H)

    450

    500

    550

    600

    650

    700

    1200

    Wheel Base (mm)

    1200

    2600

    2800

    3200

    4200

    4300

    7000

    Rail Inner Gauge (mm)

    1200

    1435

    1435

    1435

    1435

    1435

    2000

    Wheel Diameter(mm)

    Φ270

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    50

    75

    75

    Running speed (m/min)

    0-25

    0-25

    0-20

    0-20

    0-20

    0-20

    0-18

    Motor Power (Kw)

    1

    1.6

    2.2

    3.5

    5

    6.3

    15

    Battery Capacity(Ah)

    180

    160

    180

    250

    330

    400

    600

    Battery Voltage(V)

    24

    48

    48

    48

    48

    48

    72

    Running Time When Full Load

    4.32

    4.8

    4

    3.5

    3.3

    3

    2.9

    Running Distance for one Charge(Km)

    6.5

    7.2

    4.8

    4.2

    4

    3.6

    3.2

    Max Wheel Load (KN)

    14.4

    42.6

    77.7

    110.4

    174

    221.4

    265.2

    Reference Weight (t)

    2.8

    4.2

    5.9

    6.8

    8

    10.8

    26.8

    Recommended Rail Model

    P15

    P18

    P24

    P38

    P43

    P50

    QU100


    Die Plant Battery Powered Automatic Mold Transport Trolley On Rail

    Applications --- Mold Transport Trolley


    The mold transport trolley can be widely used in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).


    Die Plant Battery Powered Automatic Mold Transport Trolley On Rail


    Customer Visit


    Die Plant Battery Powered Automatic Mold Transport Trolley On Rail


    Processing Flow


    Die Plant Battery Powered Automatic Mold Transport Trolley On Rail


    Our After-Sale Service


    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

    • 16 hours engineering service and 24 hours internet service for our customers.

    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
