25 Ton Factory Electric Driven Material Transfer Rail Guided Coil
Handling Vehicle
Brief Introduction --- Coil Handling Vehicle
About the rail guided coil handling vehicle, it is powered by
battery. It also can be powered by ohter power supply mode, such as
low voltage tracks, cable reels, towed cable, busbar, etc.It can be
customized according as per demands.
This kinds coil handling vehicle is designed for coils material
handling, it equiped V or E frame on the transfer platform to avoid
the materials roll down from the trailer.
It can get rid of the limitation of cables and remote control,
which makes the operation more convenient, safe, which can be
applied in long distance rail transit system.
Product Details--- --- Coil Handling Vehicle
 |  |  |
Maintenance Free Storage Battery | Battery Charger | Rail Cast Wheel |
Compared the common one, this kinds battery needn’t be maintained
once a regular time. And the life time is longer than the
common.Besides, safe, effective, stable, environmental, are its
feature. | For battery powered transfer vehicle, when the battery power is
insufficient, to charge the battery. The charger adopts constant
current and constant voltage charging + floating charging +
balanced charging mode, which does not damage the battery and
prolongs the battery life. | The wheel adopts the crane special wheel, the wheel uses ZG55, the
whole quenching, the wheel tread and the wheel rim inner hardness
hb320-380, the depth 20mm, after the wheel is assembled, the
rotation is flexible.It has the features of high strength and long
wearing life. |
Product Funcation --- --- Coil Handling Vehicle
1. Load-Bearing Transport
Load-bearing transport is the most basic and important function of
coil handling vehicle.
2. Turning
This series of coil handling vehicle have the function of running
on S-shaped, C-shaped, curved rails, etc.
3. Lift
The hydraulic lift system can be installed on the coil handling
vehicle to achieve lifting and other functions
4. Side Flip
The coil handling vehicle can realize self-discharging by the
hydraulic device
5. Safety Devices
Safety devices can be installed on the transfer vehicle, for
example, proximity switches, dead man stop, alarm systems, buffers
to achieve the corresponding safety functions.
6. Others
Our company can research and develop the corresponding non-standard
transfer vehicles to achieve the required functions according to
the customers’ requirements.
Advantages --- --- Coil Handling Vehicle
The coil handling vehicle can run on the vertical rails, ”L”rails,
“S”rails, arc-shaped rails...
The vehicle can be applied in many occasions, such as easy
explosion, high temperature, ferry...
DC motor, stable start, starting torque, small impact to gear
reducer, low voltage, long lifetime...
This kinds of coil handling vehicle is battery powered, so only
charged fully, can it run freely without limited distance.
Professional team from Xinxiang New Leader Machinery Manufacturing
Co., Ltd, the proper solution can be provided once getting for your
inquiry.
The coil handling vehicles are customized as per your true demand.
Parameter List --- --- Coil Handling Vehicle
Model | KPX-2T | KPX-5T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-100T | KPX-150T |
Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 |
Table size(mm) | length | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 |
Height | 450 | 500 | 500 | 550 | 600 | 650 | 900 | 1200 |
Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 |
Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 |
Wheel Diameter(mm) | Φ280 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3.5 | 5 | 10 | 15 |
Battery Capacity (Ah) | 180 | 180 | 160 | 180 | 250 | 330 | 440 | 600 |
Battery Voltage (V) | 24 | 36 | 48 | 48 | 48 | 48 | 72 | 72 |
Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 |
Running Time When Full Load(Hours) | 4.32 | 5.4 | 4.8 | 4 | 3.5 | 3.3 | 3.2 | 3.2 |
Running Distance for One Charge(Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.2 | 4 | 3.8 | 3.2 |
Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 |
Reference Weight (t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.8 | 8 | 14.5 | 26.8 |
Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 | QU100 |
Application --- --- Coil Handling Vehicle

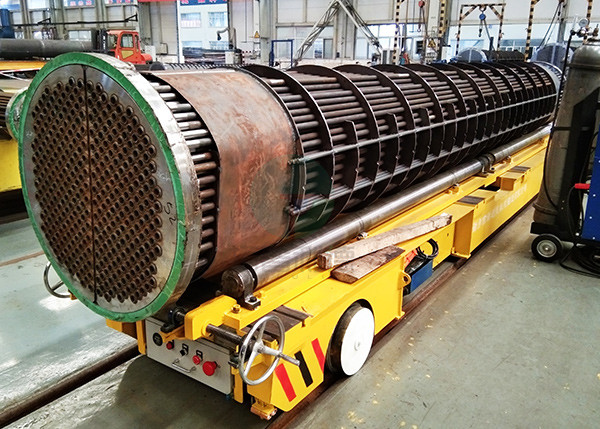

The coil handling vehicle is mainly applied in assembly line (ring
production line, loop production line), metallurgy industry (steel
ladle), warehouse transport, ship industry (maintenance, assemble,
container transport), workpiece transport in workshop, lathe
transport, steel factory (steel billet, steel plate, steel coil,
steel pipe, section steel, steel structure), construction (bridge,
simple building, concrete, concrete column), petroleum industry
(oil pump, sucker rod and parts), energy (polycrystalline silicon,
generator, windmill), chemical industry (electrolytic cell, retort
etc), railway (rail maintenance, rail welding, train tractor).
