Industrial Material Handling Electric Battery Driven Galvalume Coil
Transfer Carts For Sale

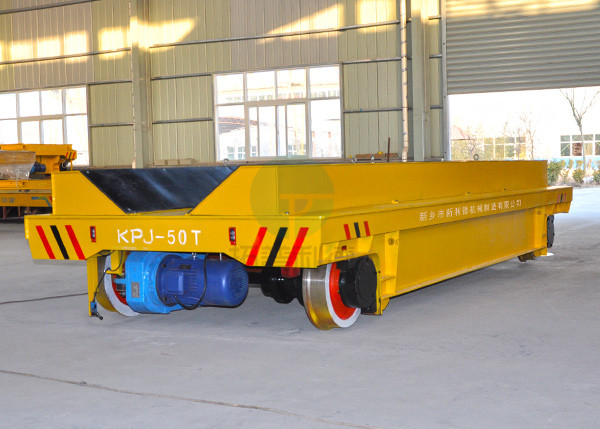

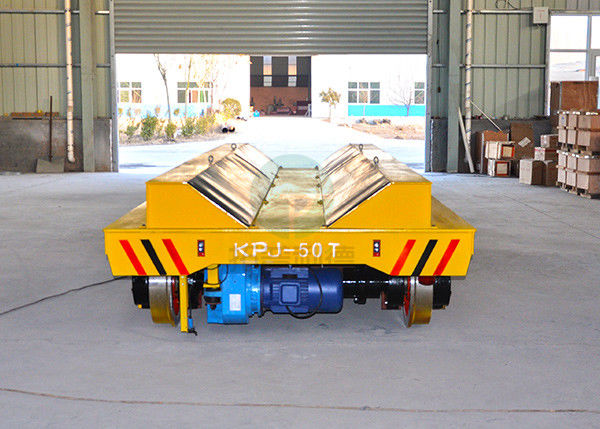

Brief Introduction --- Galvalume Coil Transfer Carts
About the Industrial Material Handling Electric Battery Driven
Galvalume Coil Transfer Carts, it is powered by battery. This kinds coil transfer cars are
designed for coils material handling, it equiped V or E frame on
the transfer cart to avoid the materials roll down from the cart.
It can get rid of the limitation of cables and remote control,
which makes the operation more convenient, safe, which can be
applied in long distance rail transit system.
Customized Options--- Galvalume Coil Transfer Carts
Flat decks or fixtures customized for specific loads.
Custom deck configurations including built-in scales and
lift/tilt/rotate capabilities.
Track or trackless, non-guided steering. Alternative drive and
steering systems including gear reducer axle drives and
individually-controlled drive wheels.
Fixed or variable speeds with forward/reverse function.
Drives with acceleration/deceleration capabilities.
Variety of operator control systems including fixed user interface,
pendant control on coil cord, and radio-controlled remote
operation.
Safety features including horns, flashing lights, e-stops, bumpers
and collision avoidance systems.
Product Funcation --- Galvalume Coil Transfer Carts
1. Load-Bearing Transport
Load-bearing transport is the most basic and important function of
galvalume coil transfer carts
2. Turning
This series of coil transfer carts have the function of running on
S-shaped, C-shaped, curved rails, etc.
3. Lift
The hydraulic lift system can be installed on the coil transfer
cart to achieve lifting and other functions
4. Side Flip
The coil transfer cart can realize self-discharging by the
hydraulic device
5. Safety Devices
Safety devices can be installed on the transfer carts, for example,
proximity switches, dead man stop, alarm systems, buffers to
achieve the corresponding safety functions.
6. Others
Our company can research and develop the corresponding non-standard
transfer carts to achieve the required functions according to the
customers’ requirements.
Advantages --- Galvalume Coil Transfer Carts
The coil transfer cart can run on the vertical rails, ”L”rails,
“S”rails, arc-shaped rails...
The cart can be applied in many occasions, such as easy explosion,
high temperature, ferry...
DC motor, stable start, starting torque, small impact to gear
reducer, low voltage, long lifetime...
This kinds of coil transfer cart is battery powered, so only
charged fully, can it run freely without limited distance.
Professional team from Xinxiang New Leader Machinery Manufacturing
Co., Ltd, the proper solution can be provided once getting for your
inquiry.
The transfer carts are customized as per your true demand.
Parameter List --- Galvalume Coil Transfer Carts
Model | KPX-5T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-100T | KPX-150T |
Rated load (T) | 5 | 10 | 20 | 30 | 50 | 100 | 150 |
Table size(mm) | length | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
Width | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 |
Height | 500 | 500 | 550 | 600 | 650 | 900 | 1200 |
Wheel Base (mm) | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 |
Rail Inner Gauge (mm) | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 |
Wheel Diameter(mm) | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
Motor Power (Kw) | 1.2 | 1.6 | 2.2 | 3.5 | 5 | 10 | 15 |
Battery Capacity (Ah) | 180 | 160 | 180 | 250 | 330 | 440 | 600 |
Battery Voltage (V) | 36 | 48 | 48 | 48 | 48 | 72 | 72 |
Running speed (m/min) | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 |
Running Time When Full Load(Hours) | 5.4 | 4.8 | 4 | 3.5 | 3.3 | 3.2 | 3.2 |
Running Distance for One Charge(Km) | 8.1 | 7.2 | 4.8 | 4.2 | 4 | 3.8 | 3.2 |
Max Wheel Load (KN) | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 |
Reference Weight (t) | 3.6 | 4.2 | 5.9 | 6.8 | 8 | 14.5 | 26.8 |
Recommended Rail Model | P18 | P18 | P24 | P38 | P43 | QU100 | QU100 |
Application --- Galvalume Coil Transfer Carts
The coil transfer cart is mainly applied in assembly line (ring
production line, loop production line), metallurgy industry (steel
ladle), warehouse transport, ship industry (maintenance, assemble,
container transport), workpiece transport in workshop, lathe
transport, steel factory (steel billet, steel plate, steel coil,
steel pipe, section steel, steel structure), construction (bridge,
simple building, concrete, concrete column), petroleum industry
(oil pump, sucker rod and parts), energy (polycrystalline silicon,
generator, windmill), chemical industry (electrolytic cell, retort
etc), railway (rail maintenance, rail welding, train tractor).
