350 Ton Large Capacity Load Cable Reels Powered Shipyard Steel Part
Handling Cart On Track
Brief Introduction --- Shipyard Steel Part Handling Cart

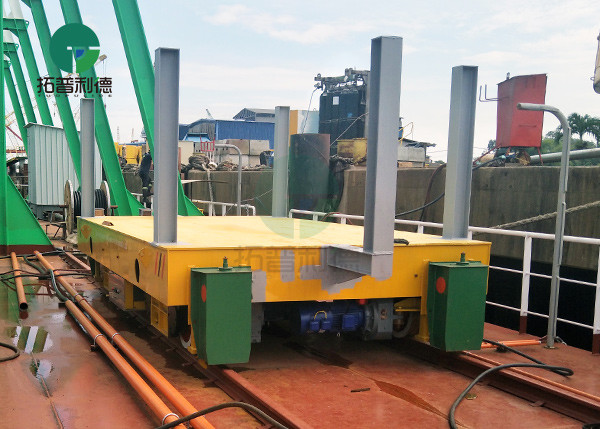

The 350 Ton Large Capacity Load Cable Reels Powered Shipyard Steel
Part Handling Cart On Track is an electric driven material transfer
cart which is running on the rails.
It is designed for material handling from one bay to another in the
working site. As the shipyard steel part handling carts are
equipped with steel wheels and move on steel rails, and the very
low friction between steel and steel, the electric handling carts
are suited to very high loading capacities.
Working Principle --- Shipyard Steel Part Handling Cart
The shipyard steel part handling cart is the cable reels powered,
the transfer vehicle gets power AC 380v through the device of cable
reel, and the motor is controlled by the power through AC control
system that make the shipyard steel part handling cart to start,
stop, go forward, backward, adjust the speed and so on.
To avoid damage to the cable, add a cable reel as a
retracting/discharging device. Due to the limitation of the cable,
it is suitable for a short-distance rail transportation system, but
its structure is simple and the price is low. Therefore, it is also
a common rail transportation equipment in the workshop.
The power supply can be customized according as your true demands,
such as battery powered, low voltage rail powered, busbar powered,
etc.
Performance Characteristics --- Shipyard Steel Part Handling Cart
Bay to bay commonly used carts - This series of cars are mainly
used in high temperature, harsh, explosion-proof occasions, is the
frequent use of the track across the common rail cart.
Metallurgical Motor - Y series metallurgical motor is suitable for
frequent starting.
Cable Reel - With a large adjustment range for take-up torque,
constant tension after adjustment and stability, good
synchronization performance.
Self-Locking Ability, No Cable Slipping - Reasonable structure
arrangement, easy installation, use, maintenance, stable and
reliable performance.
Parameter List --- Shipyard Steel Part Handling Cart
Model | KPJ-2T | KPJ-5T | KPJ-10T | KPJ-20T | KPJ-30T | KPJ-50T | KPJ-100T | KPJ-150T |
Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 |
Table size | length(L) | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
Width(W) | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 |
Height(H) | 450 | 450 | 500 | 550 | 600 | 650 | 850 | 1200 |
Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 |
Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 |
Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 |
Motor Power (Kw) | 0.8 | 1.5 | 1.5 | 2.5 | 4 | 5.5 | 11 | 15 |
Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 |
Reference Weight (t) | 2.5 | 3.5 | 4 | 5.6 | 6.5 | 7.8 | 14.1 | 26.2 |
Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 | QU100 |
Application --- Shipyard Steel Part Handling Cart
The steel part handling cart is mainly applied in assembly line
(ring production line, loop production line), metallurgy industry
(steel ladle), warehouse transport, ship industry (maintenance,
assemble, container transport), work piece transport in workshop,
lathe transport, steel factory (steel billet, steel plate, steel
coil, steel pipe, section steel, steel structure), construction
(bridge, simple building, concrete, concrete column), petroleum
industry (oil pump, sucker rod and parts), energy (poly crystalline
silicon, generator, windmill), chemical industry (electrolytic
cell, retort etc), railway (rail maintenance, rail welding, train
tractor).
Assembly line: Due to advantage of without cable, it is mainly applied in
assembly line, can realize the straight rail, S shape rail, U shape
rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing
rail etc.
Metallurgy industry: With the functions of steady traveling,
step-less speed regulation, the cart is commonly applied to
transfer steel ladle, aluminum ladle, lead ladle, steel slag etc.
Generally the outer surface temperature of the ladle is 200-300
degree , due to the high temperature, the cart should be designed
with heat exposure proof device, especially to the battery, motor,
reducer and electric appliance.
Ship Industry: Due to the large load capacity, the cart is applied in ship
industry to transfer work pieces, maintenance tools(propeller,
motor etc.). The cart is also applied in dock or harbor to transfer
cargoes and containers. If needed, the hydraulic lifting device ,
weighing device and automatic device can be added.
