Workshop Electrically Operated Inter Bay Transfer Carts On Rail for
Horizontal Transport of Materials

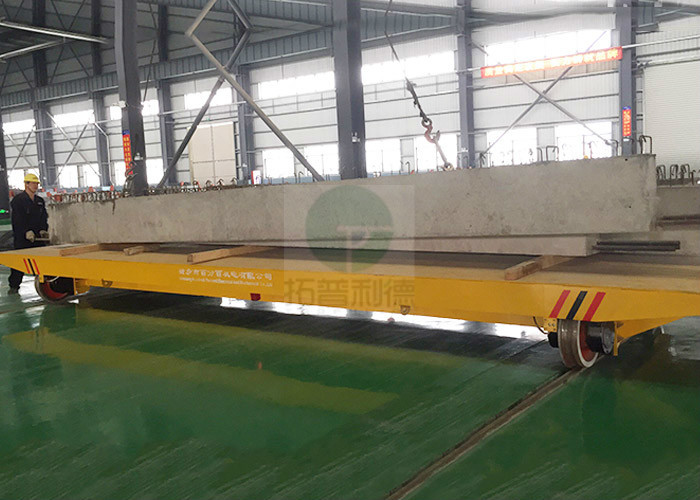

Brief Introduction --- Inter Bay Transfer Carts On Rail
The kinds of electrically operated inter bay transfer carts on rail
for horizontal transport of material, which is powered by low
voltage railways. It makes the AC electricity power is transformed
into AC 36v two-phase and are respectively connected to the two
rails. Then the inter bay transfer carts conduct the AC 36v on rail
into the electrical appliance box at the bottom of the transfer
cart. And then the AC 36v is transformed into DC 36v to control the
DC motor. Use this principle to make the inter bay transfer cart
start, stop, go forward and backward, adjust the speed and so on.
Product Features --- Inter Bay Transfer Carts On Rail
1. High quality reducer, gears adopt CNC grinding technology, high
precision, good contact, high transmission efficiency, high bearing
capacity and long service life.
2. High quality motor, with a correspondingly fast, large starting
torque, from zero speed to rated speed with rated torque
performance.
3. The wheel adopts angular bearing seat for easy installation and
adjustment, in order to properly improve the machining accuracy of
the relevant parts to improve the accuracy of the cart's
installation and manufacturing, to place the wheel deviation, the
contact between the rim and the track intensifies the rim wear and
increases the frictional resistance and so on.
4. High degree of automation, to achieve unmanned automated
production processes.
Parameter List --- Inter Bay Transfer Carts On Rail
Model | KPD-2T | KPD-5T | KPD-10T | KPD-20T | KPD-30T | KPD-40T | KPD-50T | KPD-63T |
| Rated load (T) | 2 | 5 | 10 | 20 | 30 | 40 | 50 | 63 |
| Table size | length(L) | 2000 | 3500 | 3600 | 4000 | 4500 | 5000 | 5500 | 5600 |
| Width(W) | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 |
| Height(H) | 450 | 450 | 500 | 550 | 600 | 650 | 650 | 750 |
| Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 3800 | 4200 | 4300 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ500 | Φ600 |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 |
| Running speed (m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 |
| Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3.5 | 4 | 5 | 6.3 |
| Transformer Power (KVA) | 3 | 5 | 5 | 6.8 | 10 | 10 | 10 | 20 |
| Transformer Quantity (Pcs) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Running Distance (m) | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 |
| Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 142.8 | 174 | 221.4 |
| Reference Weight (T) | 2.8 | 3.6 | 4.2 | 5.9 | 6.8 | 7.6 | 8 | 10.8 |
| Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | P43 | P50 |
Customized Options --- Inter Bay Transfer Carts On Rail
1. Load capacity, table size and rail gauge can be customized.
2. Options:
a. Remote radio control (imported or made in China)
b. Automatic stop when detecting obstacle or person, limit switches
(to limit travel)
c. Automatic cutting off power on rail
3. Variable speed device (VFD)
4. Electrical parts can be optional (made in China or imported)
5. Can be designed to meet special working environment such as high
temperature.
Applications --- Inter Bay Transfer Carts On Rail
The inter bay trasnfer carts are mainly applied in assembly line
(ring production line, loop production line), metallurgy industry
(steel ladle), warehouse transport, ship industry (maintenance,
assemble, container transport), work piece transport in workshop,
lathe transport, steel factory (steel billet, steel plate, steel
coil, steel pipe, section steel, steel structure), construction
(bridge, simple building, concrete, concrete column), petroleum
industry (oil pump, sucker rod and parts), energy (poly crystalline
silicon, generator, windmill), chemical industry (electrolytic
cell, retort etc), railway (rail maintenance, rail welding, train
tractor).
