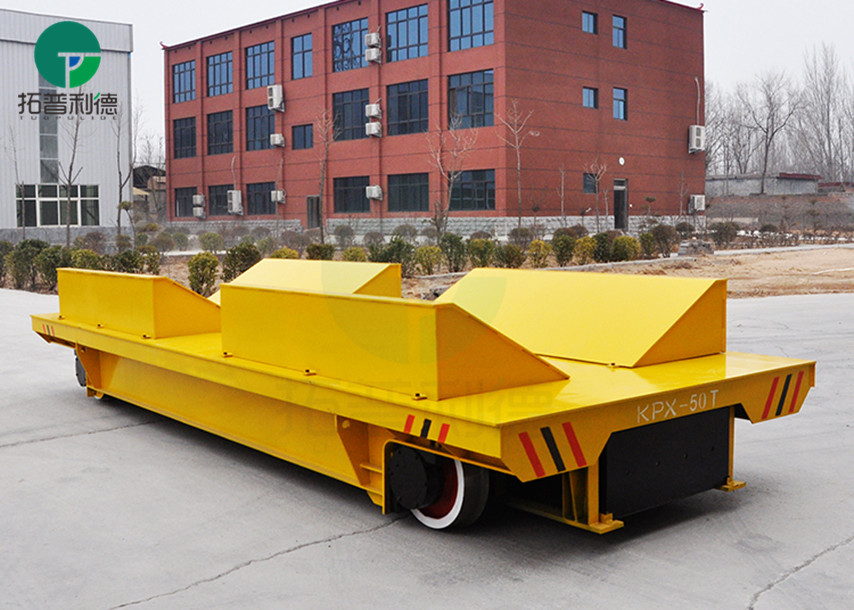

    5-40 Ton Warehouse Battery Power Aluminum Coil Transfer Cart With V frame Deck

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE,ISO9000
    Price : $5000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

    5-40 Ton Warehouse Battery Power Aluminum Coil Transfer Cart With V frame Deck

    5-40 Ton Warehouse Battery Power Aluminum Coil Transfer Cart With V frame Deck


    Brief Introduction --- Aluminum Coil Transfer Cart


    About the 5-40 Ton Warehouse Battery Power Aluminum Coil Transfer Cart With V frame Deck, the batteries are installed in the aluminum coil transfer cart. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the aluminum coil transfer cart, for example, start, stop, go forward and backward, adjust the speed and so on. It can get rid of the limitation of cables and remote control, which makes the operation more convenient, safe, which can be applied in long distance rail transit system.


    5-40 Ton Warehouse Battery Power Aluminum Coil Transfer Cart With V frame Deck


    Product Details--- Aluminum Coil Transfer Cart


    Storage Battery

    Battery Charger

    Electric Cabinet

    Compared the common one, this kinds battery needn’t be maintained once a regular time. And the life time is longer than the common.Besides, safe, effective, stable, environmental, are its feature.

    For battery powered transfer cart, when the battery power is insufficient, to charge the battery. The charger adopts constant current and constant voltage charging + floating charging + balanced charging mode, which does not damage the battery and prolongs the battery life.

    Electrical cabinet is equipped with main power switch. The whole set of electrical equipment has distribution protection, short circuit protection, over-current protection, voltage loss protection, zero protection, emergency power cut protection, etc. It ensures transmission performance, control performance, accuracy and reliability, and can safely stop in emergency.

    Product Funcation --- Aluminum Coil Transfer Cart


    1. Load-Bearing Transport

    Load-bearing transport is the most basic and important function of coil transfer cart

    2. Turning

    This series of coil transfer cart have the function of running on S-shaped, C-shaped, curved rails, etc.

    3. Lift

    The hydraulic lift system can be installed on the transfer cart to achieve lifting and other functions

    4. Side Flip

    The aluminum coil transfer cart can realize self-discharging by the hydraulic device

    5. Safety Devices

    Safety devices can be installed on the transfer cart, for example, proximity switches, dead man stop, alarm systems, buffers to achieve the corresponding safety functions.

    6. Others

    Our company can research and develop the corresponding non-standard transfer cart to achieve the required functions according to the customers’ requirements.


    5-40 Ton Warehouse Battery Power Aluminum Coil Transfer Cart With V frame Deck


    Customized Options --- Aluminum Coil Transfer Cart


    Flat decks or fixtures customized for specific loads.

    Custom deck configurations including built-in scales and lift/tilt/rotate capabilities.

    Track or trackless, non-guided steering.Alternative drive and steering systems including gear reducer axle drives and individually-controlled drive wheels.

    Fixed or variable speeds with forward/reverse function.

    Battery type (free of maintenance battery, lithium battery, explosion-proof battery and anti-high temperature battery)

    Variety of operator control systems including fixed user interface, pendant control on coil cord, and radio-controlled remote operation.

    Safety features including horns, flashing lights, e-stops, bumpers and collision avoidance systems.


    5-40 Ton Warehouse Battery Power Aluminum Coil Transfer Cart With V frame Deck


    Parameter List --- Aluminum Coil Transfer Cart


    Model

    KPX-2T

    KPX-5T

    KPX-10T

    KPX-20T

    KPX-30T

    KPX-50T

    KPX-100T

    KPX-150T

    Rated load (T)

    2

    5

    10

    20

    30

    50

    100

    150

    Table size(mm)

    length

    2000

    3500

    3600

    4000

    4500

    5500

    6500

    10000

    Width

    1500

    2000

    2000

    2200

    2200

    2500

    2800

    3000

    Height

    450

    500

    500

    550

    600

    650

    900

    1200

    Wheel Base (mm)

    1200

    2500

    2600

    2800

    3200

    4200

    4900

    7000

    Rail Inner Gauge (mm)

    1200

    1435

    1435

    1435

    1435

    1435

    2000

    2000

    Wheel Diameter(mm)

    Φ280

    Φ300

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity(Nos)

    4

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    50

    50

    75

    75

    Motor Power (Kw)

    1

    1.2

    1.6

    2.2

    3.5

    5

    10

    15

    Battery Capacity (Ah)

    180

    180

    160

    180

    250

    330

    440

    600

    Battery Voltage (V)

    24

    36

    48

    48

    48

    48

    72

    72

    Running speed (m/min)

    0-30

    0-30

    0-25

    0-25

    0-25

    0-20

    0-20

    0-18

    Running Time When Full Load(Hours)

    4.32

    5.4

    4.8

    4

    3.5

    3.3

    3.2

    3.2

    Running Distance for One Charge(Km)

    6.5

    8.1

    7.2

    4.8

    4.2

    4

    3.8

    3.2

    Max Wheel Load (KN)

    14.4

    25.8

    42.6

    77.7

    110.4

    174

    343.8

    265.2

    Reference Weight (t)

    2.8

    3.6

    4.2

    5.9

    6.8

    8

    14.5

    26.8

    Recommended Rail Model

    P15

    P18

    P18

    P24

    P38

    P43

    QU100

    QU100


    What Product Handling Applications Use Transfer Carts?

    1. Coils (V-Groove deck)
    2. Tanks (size/stability for uniformly distributed loads)
    3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
    4. Sub-Assembly shuttle from one line to another line
    5. Maintenance cart for motors and pumps
    6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
    7. Material shuttle for steel tubing (flat decking with guard rails)
    8. Elevating platform for assembly process (integrated screw-jack table)
    9. Sand casting (flat decking)


    5-40 Ton Warehouse Battery Power Aluminum Coil Transfer Cart With V frame Deck
