45 Ton Large Table Battery Power Rail Transfer Trolley For Steel
Factory Material Transport
Brief Introduction --- Battery Power Rail Transfer Trolley

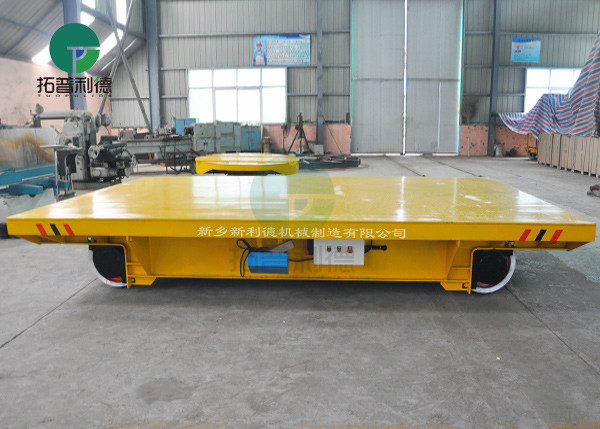

About the 45 Ton Large Table Battery Power Rail Transfer Trolley
For Steel Factory Material Transport, the batteries are installed in the rail transfer trolley. The
batteries supply electricity to the DC motor through the electrical
control system. We use this principle to operate the rail transfer
trolleys, for example, start, stop, go forward and backward, adjust
the speed and so on. It can get rid of the limitation of cables and
remote control, which makes the operation more convenient, safe,
which can be applied in long distance rail transit system.
Product Details--- Battery Power Rail Transfer Trolley
 |  |  |
Storage Battery | Battery Charger | Electric Control Box |
 |  |  |
Sound & Light Alarm | Remote Control | Casting Wheel |
Product Funcation --- Battery Power Rail Transfer Trolley
1. Load-Bearing Transport
Load-bearing transport is the most basic and important function of
battery power rail transfer trolley
2. Turning
This series of rail transfer trolley have the function of running
on S-shaped, C-shaped, curved rails, etc.
3. Lift
The hydraulic lift system can be installed on the rail transfer
trolley to achieve lifting and other functions
4. Side Flip
The transfer trolley can realize self-discharging by the hydraulic
device
5. Safety Devices
Safety devices can be installed on the transfer trolley, for
example, proximity switches, dead man stop, alarm systems, buffers
to achieve the corresponding safety functions.
6. Others
Our company can research and develop the corresponding non-standard
transfer trolley to achieve the required functions according to the
customers’ requirements.
Working Environment --- Battery Power Rail Transfer Trolley
1. Environment temperature: -20°C-40°C
2. Environment Humidity: Relative Humidity ≤ 70%
3. Environment PH Degree: Working in a Neutral or Approaching
Neutral
4. Environment Electrical Sustainability: 25%
5. Air Cleanliness: Non-corrosive, non-flammable,non-explosive gas
Parameter List --- Battery Power Rail Transfer Trolley
Model | KPX-2T | KPX-5T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-100T | KPX-150T |
Rated load (T) | 2 | 5 | 10 | 20 | 30 | 50 | 100 | 150 |
Table size(mm) | length | 2000 | 3500 | 3600 | 4000 | 4500 | 5500 | 6500 | 10000 |
Width | 1500 | 2000 | 2000 | 2200 | 2200 | 2500 | 2800 | 3000 |
Height | 450 | 500 | 500 | 550 | 600 | 650 | 900 | 1200 |
Wheel Base (mm) | 1200 | 2500 | 2600 | 2800 | 3200 | 4200 | 4900 | 7000 |
Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | 2000 |
Wheel Diameter(mm) | Φ280 | Φ300 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
Motor Power (Kw) | 1 | 1.2 | 1.6 | 2.2 | 3.5 | 5 | 10 | 15 |
Battery Capacity (Ah) | 180 | 180 | 160 | 180 | 250 | 330 | 440 | 600 |
Battery Voltage (V) | 24 | 36 | 48 | 48 | 48 | 48 | 72 | 72 |
Running speed (m/min) | 0-30 | 0-30 | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-18 |
Running Time When Full Load(Hours) | 4.32 | 5.4 | 4.8 | 4 | 3.5 | 3.3 | 3.2 | 3.2 |
Running Distance for One Charge(Km) | 6.5 | 8.1 | 7.2 | 4.8 | 4.2 | 4 | 3.8 | 3.2 |
Max Wheel Load (KN) | 14.4 | 25.8 | 42.6 | 77.7 | 110.4 | 174 | 343.8 | 265.2 |
Reference Weight (t) | 2.8 | 3.6 | 4.2 | 5.9 | 6.8 | 8 | 14.5 | 26.8 |
Recommended Rail Model | P15 | P18 | P18 | P24 | P38 | P43 | QU100 | QU100 |
Application --- Battery Power Rail Transfer Trolley
The battery power rail transfer trolley is mainly applied in
assembly line (ring production line, loop production line),
metallurgy industry (steel ladle), warehouse transport, ship
industry (maintenance, assemble, container transport), workpiece
transport in workshop, lathe transport, steel factory (steel
billet, steel plate, steel coil, steel pipe, section steel, steel
structure), construction (bridge, simple building, concrete,
concrete column), petroleum industry (oil pump, sucker rod and
parts), energy (polycrystalline silicon, generator, windmill),
chemical industry (electrolytic cell, retort etc), railway (rail
maintenance, rail welding, train tractor).
