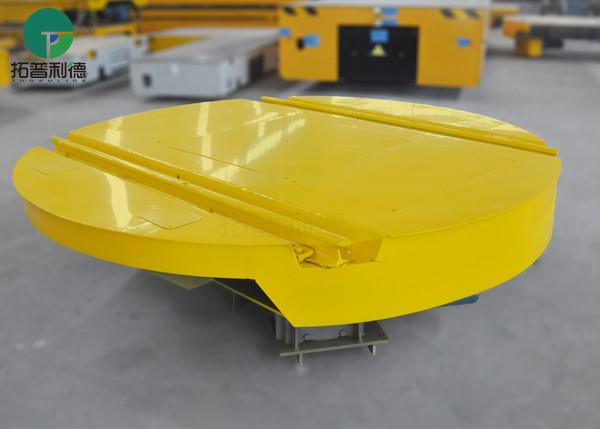

Warehouse Apply 360 Degrees Motorized Railway Electric Turntable
Product Introduction --- Pallet Motorized Railway Turntable
The warehouse apply 360 degrees motorized railway electric
turntable is designed to transport vehicles through the track and
can rotate 60, 90 and 120 degrees in the factory to achieve rapid
adjustment of railway vehicles.How it works: the guide rail is also
mounted on the turntable when the railway transport vehicle is
running on the turntable. The turntable can rotate automatically or
manually until it is accurately connected to the target railway and
the vertical track of the transport vehicle.Turntable is suitable
for various applications, such as circular rail, vertical rail,
horizontal rail, etc.Turntable system runs smoothly, rail
connection accuracy is high, PLC can be installed, to meet the full
automation of electrical operations.
Technical Parameter --- Pallet Motorized Railway Turntable
| Model | BZP-30T Turntable |
| Rated Load(t) | 30 |
| Table Dia(mm) | 2500 |
| Rail Gauge(mm) | 1435 |
| Power supply | 3P 380v |
| Rotating speed(r/p) | 1 |
| Turning degree | 0-360 |
| Motor power | 3 |
| Recommended Rail Model | P24 |
| The parameter is just for reference, all of the our turntables are
customized according real applications |
Applications --- Pallet Motorized Railway Turntable
The pallet motorized railway truntable is mainly applied in
assembly line (ring production line, loop production line),
metallurgy industry (steel ladle), warehouse transport, ship
industry (maintenance, assemble, container transport), workpiece
transport in workshop, lathe transport.
Package & Delivery --- Pallet Motorized Railway Turntable
Company Brief
Requirements for Pallet Motorized Railway Turntable
1. Control System
There is a control box on the ground, and the control box is
equipped with left-handed, right-handed, click-and-stop buttons and
corresponding indicator lights.
2. Rust Removal And Painting Requirements
The surface rust removal of steel plate, profile and forging
reaches ST2 grade in GB8923. The film thickness is 90-120 um.
Rust-proof treatment is carried out on all exposed surfaces before
leaving the factory. The surface is coated with rust-proof primer,
dark gray topcoat, and the guide rail is not painted.
3. Control Box System
The control box is made of steel plate. It is beautiful and
practical. The surface is anticorrosive. The thickness of the box
body is not less than 2 mm. It has a good heat dissipation device.
There is a practical overhaul lamp in the control box. The door
lock is firm and reliable. It is easy to use and does not
interfere.
4. Equipment Configuration
All kinds of famous industrial components should be selected to
ensure the overall reliability of the equipment.
5. Frame System
The frame frame structure consists of longitudinal beam, cross beam
and steel plate. The working table is paved with steel plate. The
profiles and steel plates used conform to the corresponding
national standards.
6. Transmission System
The motor drives the reducer, transfers the power to the rotary
device, and drives the rotary table to rotate. The components are
reliably connected with the main body. The motor adopts brake
motor, the protection level is IP44, and the insulation level is E.
7. Equipment structure
The turntable is composed of frame, rotary table, driving device
and control box.
The rotating table body is equipped with guide rail, and the
rotating table is composed of rotating configuration and working
table produced by introducing advanced German patent technology,
which can rotate 90°.
It has the characteristics of flexible rotation, quick response,
safe and reliable performance.
The track docking realizes automatic deceleration control through
frequency conversion governor, and the electronic control safety
limit device is set between the two positions of 90° to ensure the
positioning accuracy when the rotary table rotates, so that the
guide rail of the body and the ground track are well aligned.
Auxiliary supporting wheels are arranged below the rotary table to
ensure the safety and stability of the rotary table.
