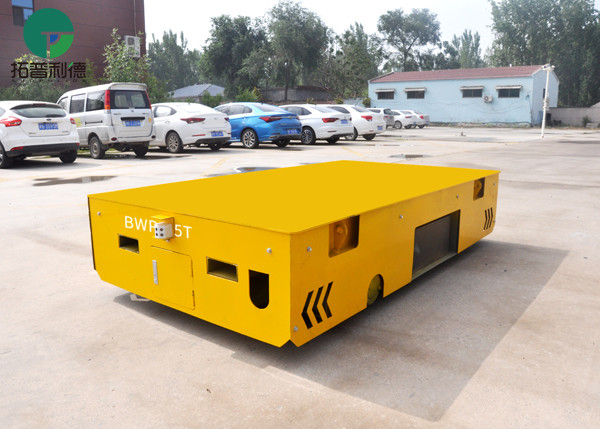

Trackless rechargeable electric steerable flatbed transfer cart
Introduction
The trackless electric transfer car is a steerable transfer car
driven by a motor and a reducer. The solid polyurethane wheels can
drive directly on the flat concrete ground. As long as the battery
has electricity, it can drive all the time without distance
limitation. It can turn 360° on the spot, operate in a narrower
space, and has 360° no dead angle protection, emergency stop and
other protective measures. Support customization, optional
accessories, etc.
Working Principle
The battery is installed in the steerable transfer carts. The
batteries supplied the electricity to the DC motor through the
electrical control system. By this ways, we can make the steerable
transfer carts to start, stop, go forward, backward, adjust the
speed and so on.
Product Features
1, Load capacity of towing flat cart is 1-1000tons;
2, Running distance of towing flat cart is not limited;
3, Towing flat cart can rotate 360 degrees, turn flexibly;
4, Operation system of towed trackless transfer car is low voltage
36V power;
5, Towing flat cart can be used in anti-explosion, anti-high
temperature, flammable environment;
7, Towing flat cart has following advantages, such as easy
operation, simple structure, low price, long service life, etc.
Parameter List
Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-100T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 100 |
| Table size | length(L) | 2000 | 2300 | 2400 | 3500 | 5500 | 6600 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2600 | 3000 |
| Height(H) | 450 | 500 | 600 | 700 | 800 | 1200 |
| Wheel Base (mm) | 1080 | 1650 | 2800 | 1650 | 2000 | 2000 |
| Axle Base (mm) | 1380 | 1850 | 1435 | 2700 | 2850 | 4000 |
| Wheel Diameter(mm) | Φ250 | Φ400 | Φ350 | Φ450 | Φ600 | Φ600 |
| Wheel Quantity(Nos) | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 |
| Running speed (m/min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 2*1.2 | 2*2.2 | 2*4.5 | 2*5.5 | 2*7.5 | 40 |
| Battery Capacity(Ah) | 250 | 250 | 400 | 450 | 500 | 1000 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 72 | 72 |
| Running Time When Full Load | 2.5 | 2.8 | 2.2 | 2 | 2.5 | 1.9 |
| Running Distance for one Charge(Km) | 3 | 3.4 | 2.7 | 2.4 | 3 | 2.3 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 190 |
| Reference Weight (t) | 2.3 | 4.2 | 5.9 | 6.8 | 8 | 26.8 |
Application
This series steerable transfer carts can be widely applied in many
fields, such as automobile, steel factory, heavy industry, light
industry, machinery, petroleum, metallurgy, mining, chemical
industry, engineering, aerospace, coal, nuclear energy, shipyard,
water conservancy, etc.
About us
Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to
manufacturing material handling and lifting equipment with ISO9001,
CE, SGS and SASO certificates. We can produce 1-500 ton seven
series transfer carts and covers more than 90 products. Meanwhile,
we are also a professional manufacturer of various electric winches
and rail wheels, and a experienced supplier of GB standard rail
track.
Transport
Q&A
1.Q: Whether the towing flat cart can be customized?
A:Yes. all towing flat carts can be customized as per customers’
requirement.
2.Q: How to operate the towing flat cart?
A: Please don’t worry, dear. English user manual, parts manual will
be delivered with your goods together. Our engineer will go to your
factory to provide technical guidance if necessary.
3.Q: How to guarantee the quality of towing flat cart?
A: Towing flat cart will be tested before delivery, and quality
certification will be sent you to check when dispatch. You can
visit our factory and test it by yourself, or let third-parties to
do the inspection for you.
4.Q: How about delivery time?
A: Generally speaking, the delivery time is 45 days, and it depends
on quantity and products requirement, we will try our best to
deliver it as soon as possible.
5.Q: How about payment term?
A: Generally speaking, 50%T/T deposit in advance, the balance 50% is
paid by T/T before dispatch. 30% T/T deposit in advance, the
balance 70% is paid by T/T before dispatch also can be accepted.
6.Q: If meeting urgent demand, what should I do?
A: Please do not hesitate to let us know before making order, we will
try our best to shorten period on the basis of guaranteeing quality
and prioritize your productions’ manufacture.
