    High temperature resistant rail battery hot metal ladle transfer cart

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE,ISO9000
    Price : $7000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after your prepayment
    • Product Details
    • Company Profile

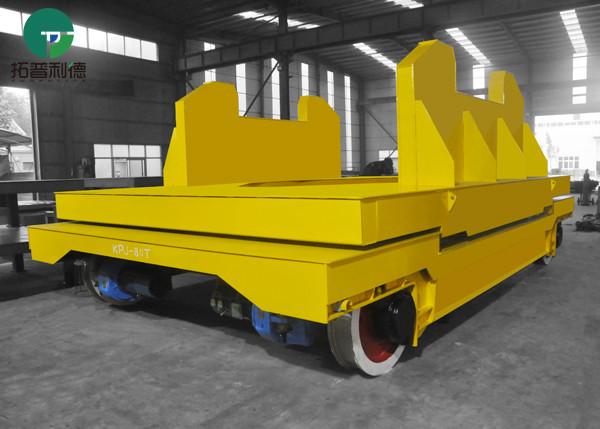

    High temperature resistant rail battery hot metal ladle transfer cart

    High temperature resistant rail battery hot metal ladle transfer cart

    Description


    About steel ladle car, it is an electric steel ladle car powered by conductor rails. The power source AC380v is transformed into AC36v three-phase through transformer. Then the wheels connected to the three rails respectively(add a conducting rail). The steel ladle car's wheels and conducting plate lead the AC 36V electricity to the electric appliance box which is installed on the carts. And AC36v is transformed to AC 380V through the transformer. Then controls AC Metallurgy motor through AC control system to make the transfer cart start, stop, go forward and backward.
    This kind of ladle transfer car can solve problems with high temperature steel ladle, liquid iron ladle transferring in metallurgy industry.
    Ladle transfer car is specially designed to transfer the high-temperature ladle. This kind of transfer car has strict requirements on safety and anti-high temperature, so the material, driving system and electrical parts of the bogie should be specially designed.

    High temperature resistant rail battery hot metal ladle transfer cart


    Advantages


    • The steel ladle transfer trolley can run on the Vertical rails, ”L”rails, “S”rails, arc-shaped rails...
    • The steel ladle transfer trolley can be applied in many occasions, such as easy explosion, high temperature, ferry...
    • DC motor, stable start, starting torque, small impact to gear reducer, low voltage, long lifetime...
    • This kinds of steel ladle transfer trolley is battery powered, so only charged fully, can it run freely without limited distance.
    • Professional team from Xinxiang New Leader Machinery Manufacturing Co., Ltd. the proper solution can be provided once getting for your inquiry.
    • The steel ladle transfer trolley is customized as per your true demand.
    High temperature resistant rail battery hot metal ladle transfer cart

    Parts Details

    High temperature resistant rail battery hot metal ladle transfer cart


    Application


    The steel ladle transfer trolley is suitable for various occasions, for example,industries, (steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc from one location to another; Paper roll plant: transfer paper coil Painting shops: transfer work piece into the painting room Sand blasting room) Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc.


    For material transfer, the steel ladle transfer trolley has been widely used in this field with hot market. Any interests and problems, welcome to contact with us. The proper solution can be provided to you once getting for your confirmation.


    High temperature resistant rail battery hot metal ladle transfer cart


    Technical Parameters


    ModelKPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100


    Delivery --- Molten Steel Ladle Transfer Trolley Car


    High temperature resistant rail battery hot metal ladle transfer cart


    Our company


    High temperature resistant rail battery hot metal ladle transfer cart

    High temperature resistant rail battery hot metal ladle transfer cart

    After-Sale Service


    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

    High temperature resistant rail battery hot metal ladle transfer cart


    Contact info:


    Lucy Ji
    Xinxing New Leader Machinery Manufacturing Co., Ltd
    T:86-373-5289556 F:86-373-7720077
    E-mail: sale@newldmachinery.com
