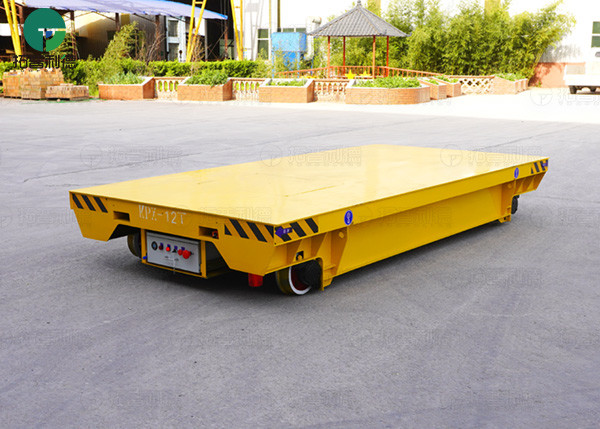

Battery Power Material Transfer Motorized Cart Moving On Rails

Brief Introduction Of Motorized Rail Cart

The electrical rail transfer cart is a heavy-duty material handling tool that can easily transport a wide range of heavy cargo across a range of industries. Electric flatbed transfer cart can carry up to 1,500 tons.

The electric energy of the battery provides power to the DC motor through the electrical control system, so as to make the flat cart start, stop, forward, backward, speed regulation and so on. The operation of electric flat cart is relatively simple. The staff can operate the electric transfer cart through a handle or remote control.

The electric flat cart can advance and retreat on the track, and can also turn on the curved track. In addition, the parts of electric material transfer cart can be selected according to the working conditions of explosion-proof parts, and the electric flat cart is applied to high temperature and explosive occasions. Electric rail carts are equipped with advanced safety features such as limit switches and sensors that ensure the operator has full control over the speed and position of the cart while moving along the tracks. Electric flatbed vehicles come in a variety of sizes, wheel types, and drive options, catering to the diverse needs of different industries. Depending on the requirements, these electrical cart can be designed as single-drive or multi-drive systems.

Electric rail transfer cart are widely used in buildings, factories, production lines, heavy industry, light industry, and even in the aerospace sector.

Battery Power Material Handing Motorized Cart Transfer On Rails Battery Power Material Transfer Electric Cart Moving On Rails

Product Details Of Motorized Rail Cart

factory Battery Power Material Transfer Motorized trolley On Rails

railway transfer Battery Power Motorized Cart

Related Products

electric motorized Transfer Cart Moving On Rails

Features and Advantages

Material Transfer battery powered Cart Moving On Rails

Parameter List Of Motorized Rail Cart

Model		KPX-2T	KPX-5T	KPX-10T	KPX-16T	KPX-20T	KPX-25T	KPX-30T	KPX-40T	KPX-50T	KPX-63T	KPX-80T	KPX-100T	KPX-150
Rated load(t)		2	5	10	16	20	25	30	40	50	63	80	100	150
Table Size	Length(L)	2000	3500	3600	4000	4000	4500	4500	5000	5500	5600	6000	6500	10000
	Width(W)	1500	2000	2000	2000	2200	2200	2200	2500	2500	2500	2600	2800	3000
	Heigth(H)	450	500	500	550	550	600	600	650	650	700	800	900	1200
Wheel Base(mm)		1200	2500	2600	2800	2800	3200	3200	3800	4200	4300	4700	4900	7000
Rai lnner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	1435	1435	1800	2000	2000
Wheel Dia. (mm)		Φ270	Φ300	Φ300	Φ350	Φ350	Φ400	Φ400	Φ500	Φ500	Φ600	Φ600	Φ600	Φ600
Wheel Quantity(pcs)		4	4	4	4	4	4	4	4	4	4	4	4	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	50	75	75	75	75
Running Speed(mm)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-20	0-18
Motor Power(kw)		1	1.2	1.6	2	2.2	3	3.5	4	5	6.3	8	10	15
Batter Capacity(Ah)		180	180	160	180	180	250	250	300	330	400	400	440	600
Battery Voltage(V)		24	36	48	48	48	48	48	48	48	48	72	72	72
Running Time When Full Load		4.32	5.4	4.8	4.3	4	4	3.5	3.6	3.3	3	3.6	3.2	2.9
Running Distance for One Charge(Km)		6.5	8.1	7.2	5.1	4.8	4.8	4.2	4.3	4	3.6	4.3	3.8	3.2
Max Wheel load(KN)		14.4	25.8	42.6	64.5	77.7	94.5	110.4	142.8	174	221.4	278.4	343.8	265.2
Reference Wight(t)		2.8	3.6	4.2	5.5	5.9	6.5	6.8	7.6	8	10.8	12.8	14.6	26.8
Recommend Rail Model		P15	P18	P18	P24	P24	P38	P38	P43	P43	P50	P50	QU100	QU100

Application

factory 30t transfer Battery rail Cart

Shipping

Cement factory flatbed moving motorized rail trolley
