    V-Deck Frame Battery Powered Material Coil Transfer Cart

    Ask Lasest Price
    Brand Name : NEWLD
    Model Number : KPX
    Certification : CE,ISO9000
    Price : $2500-$6000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

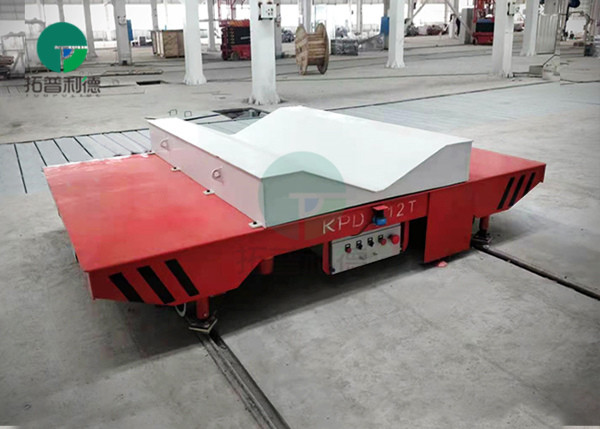

    V-Deck Frame Battery Powered Material Coil Transfer Cart

    V-Deck Frame Battery Powered Material Coil Transfer Cart


    Introduction

    In many factories, steel coils, copper coils, aluminum coils and other materials need to be transported from one working point to another. But in the process of transportation, the coil is easy to fall. Therefore, we designed the coil transfer cart, which makes the transportation of industrial materials efficient and reliable.


    Coil transfer cart is transformed on the basis of ordinary electric flat cart, transfer cart is power supply, workers operate flat cart forward, backward, turning and so on. The V/U bracket is installed on the table of the flat cart, which can ensure the stable placement of the coil on the cart and reduce the risk of tipping over. In addition, the electric is equipped with an emergency stop button and safety sensors to improve safety.


    This innovative device has become a must-have for many industrial facilities that routinely handle coils of material. Industrial coil transfer cart provides convenience for enterprise transportation, if you want to transport coil, this product is worth your choice.

    Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

    V-Deck Frame Battery Power Material Coil Transfer Cart

    V-Deck Frame Electric Material Coil Transfer Cart

    Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

    Product Details


    V-Deck Frame Battery Drive Material Coil Transfer Cart


    Parameter List


    Model

    KPX-5T

    KPX-10T

    KPX-20T

    KPX-30T

    KPX-50T

    KPX-100T

    KPX-150T

    Rated load (T)

    5

    10

    20

    30

    50

    100

    150

    Table size(mm)

    length

    3500

    3600

    4000

    4500

    5500

    6500

    10000

    Width

    2000

    2000

    2200

    2200

    2500

    2800

    3000

    Height

    500

    500

    550

    600

    650

    900

    1200

    Wheel Base (mm)

    2500

    2600

    2800

    3200

    4200

    4900

    7000

    Rail Inner Gauge (mm)

    1435

    1435

    1435

    1435

    1435

    2000

    2000

    Wheel Diameter(mm)

    Φ300

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity(Nos)

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    50

    75

    75

    Motor Power (Kw)

    1.2

    1.6

    2.2

    3.5

    5

    10

    15

    Battery Capacity (Ah)

    180

    160

    180

    250

    330

    440

    600

    Battery Voltage (V)

    36

    48

    48

    48

    48

    72

    72

    Running speed (m/min)

    0-30

    0-25

    0-25

    0-25

    0-20

    0-20

    0-18

    Running Time When Full Load(Hours)

    5.4

    4.8

    4

    3.5

    3.3

    3.2

    3.2

    Running Distance for One Charge(Km)

    8.1

    7.2

    4.8

    4.2

    4

    3.8

    3.2

    Max Wheel Load (KN)

    25.8

    42.6

    77.7

    110.4

    174

    343.8

    265.2

    Reference Weight (t)

    3.6

    4.2

    5.9

    6.8

    8

    14.5

    26.8

    Recommended Rail Model

    P18

    P18

    P24

    P38

    P43

    QU100

    QU100

    Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame

    Railway battery material transfer cart for coils in workshop


    Application


    V-block battery power coil transport cart


    Shipping

    V-Deck Frame Battery Powered Material Coil Transfer Carts

    Company Information


    V-block electric coil transfer cart on rail

    25t V support bracket electric transfer trolley

    V-Deck Frame 15t Battery Powered Coil Transport Cart


    Our Service

    V support bracket electric 30t coils transfer cartV-groove deck 20t coils transfer cart


    Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame Heavy Duty Steel Coil Handling Electric Flat Car Battery Powered With E Frame
