    45t Railway Handing Electric Die Transfer Car

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE,ISO9000
    Price : $4000-$10000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

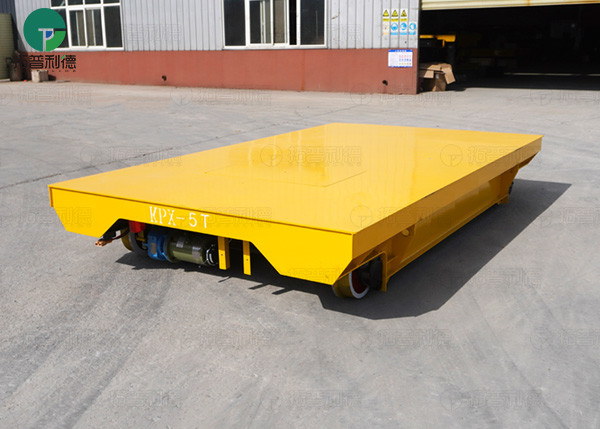

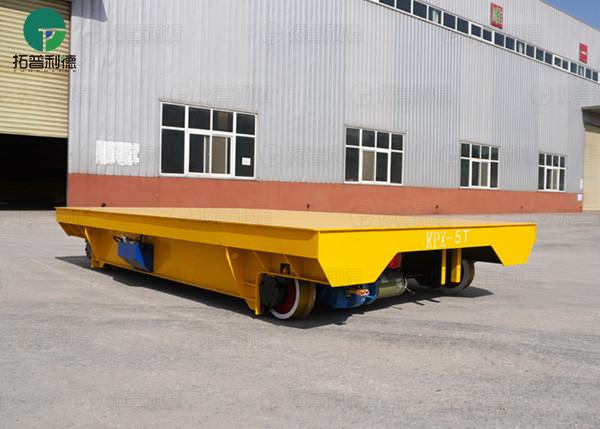

    45t Railway Handing Electric Die Transfer Car

    45t Railway Handing Electric Die Transfer Car

    Brief Introduction

    Are you tired of manually handling heavy materials in the factory? Our company can provide the perfect solution. Our electric rail transfer car is designed to make the transportation of materials more efficient and convenient.

    Our electric flatbed truck is a heavy-duty material handling equipment that is ideal for factories, warehouses, and other industrial facilities. The device requires tracks on the ground and can be controlled by an operator to move materials around the facility. The flat car chooses cast steel wheels, which are durable, resistant to rust, deformation and strong bearing capacity.


    In addition to providing high quality products, we are also committed to providing excellent customer service. Our company promises that the impact load of the product is not less than 150%, because we insist on our quality.

    45t Track Handing Electric Die Transfer Car


    Product Details

    factory 35t die transport trolley

    railway transfer 15t handing car


    Related Products

    electric die transfer car on track

    Features and Advantages


    Mold factory battery power flat transfer vehicle on rail

    Parameter List


    ModelKPX-2TKPX-5TKPX-10TKPX-16TKPX-20TKPX-25TKPX-30TKPX-40TKPX-50TKPX-63TKPX-80TKPX-100TKPX-150
    Rated load(t)25101620253040506380100150
    Table SizeLength(L)20003500360040004000450045005000550056006000650010000
    Width(W)1500200020002000220022002200250025002500260028003000
    Heigth(H)4505005005505506006006506507008009001200
    Wheel Base(mm)1200250026002800280032003200380042004300470049007000
    Rai lnner Gauge(mm)1200143514351435143514351435143514351435180020002000
    Wheel Dia. (mm)Φ270Φ300Φ300Φ350Φ350Φ400Φ400Φ500Φ500Φ600Φ600Φ600Φ600
    Wheel Quantity(pcs)4444444444448
    Ground Clearance(mm)50505050505050505075757575
    Running Speed(mm)0-250-250-250-200-200-200-200-200-200-200-200-200-18
    Motor Power(kw)11.21.622.233.5456.381015
    Batter Capacity(Ah)180180160180180250250300330400400440600
    Battery Voltage(V)24364848484848484848727272
    Running Time When Full Load4.325.44.84.3443.53.63.333.63.22.9
    Running Distance for One Charge(Km)6.58.17.25.14.84.84.24.343.64.33.83.2
    Max Wheel load(KN)14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
    Reference Wight(t)2.83.64.25.55.96.56.87.6810.812.814.626.8
    Recommend Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100QU100

    Application


    factory 30t transfer battery lift rail car


    Shipping


    Cement factory flatbed 55t transfer battery rail car

    About Us

    factory flatbed 55t transfer battery rail trolley

    Foundry factory electric battery transfer cart on rail

    Foundry factory electric material transfer trolley on rail


    tags:rail trailer,transport trailer
