    Steerable Flatbed Cargo Heavy Duty Electric Platform Trolley

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : BWP
    Certification : CE,ISO9000
    Price : $7000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 50 days after your prepayment
    • Product Details
    • Company Profile

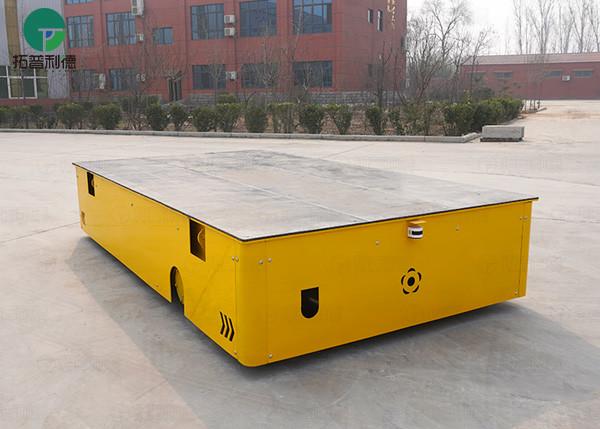

    Steerable Flatbed Cargo Heavy Duty Electric Platform Trolley

    Steerable Flatbed Cargo Heavy Duty Electric Platform Trolley


    Product Introduction

    The trackless electric flat car is made of high strength polyurethane coated rubber wheels, which can run flexibly in the factory and workshop. It can not only walk in a straight line between the working points, but also make flexible turns, improving the convenience of transportation in the working section. It is a very effective transportation helper for customers who need to transport items to different ranges.


    Steerable flatbed cargo heavy duty electric platform trolley have many advantages. Transfer cart is not limited by the track, can be operated wirelessly, and can turn freely.


    Steerable Flatbed Cargo Heavy Duty Electric Platform TrolleySteerable Flatbed Cargo Transfer Electric Platform Trolleysteerable motor trolley wheel drive 10tone transfer cart


    Parts Details

    steerable heavy duty cart

    steerable motor trolley wheel drive 10tone transfer cart


    Application


    2 Ton Battery Operated Steerable Transfer Trolley


    Technical Parameters

    ModelBWP-2TBWP-5TBWP-10TBWP-15TBWP-20TBWP-25TBWP-30TBWP-40TBWP-50TBWP-60TBWP-70TBWP-80TBWP-100
    Rated load(t)2510152025304050607080100
    Table SizeLength(L)2000220023002400240035003500500055005600600065006600
    Width(W)1500200020002100220022002200250026002500260028003000
    Heigth(H)4505005506006007007008008008509009501200
    Wheel Base(mm)1080165016501600165016501650200020001800185019502000
    Axle Base(mm)1380168017001830185027002700360028502900350035004000
    Wheel Dia.(mm)Φ250Φ300Φ350Φ400Φ400Φ450Φ450Φ500Φ600Φ600Φ600Φ600Φ600
    Wheel Quantity(pcs)4444444444668
    Ground Clearance(mm)50505050505050505075757575
    Running Speed(mm)0-250-250-250-200-200-200-200-200-200-200-200-200-18
    Motor Power(kw)2*1.22*1.52*2.22*3.52*4.52*5.52*5.52*6.32*7.52*102*123040
    Batter Capacity(Ah)2501802503304004004504405006006008001000
    Battery Voltage(V)24484848484848727272727272
    Running Time When Full Load2.52.882.82.32.21.822.62.52.21.821.9
    Running Distance for One Charge(Km)33.53.42.82.72.22.43.232.72.22.42.3
    Max Wheel load(KN)14.425.842.664.577.794.5110.4142.8174221.4152185190
    Reference Wight(t)2.33.64.25.55.96.56.87.6810.812.814.626.8

    Advantages


    100t transfer electric trackless trolley


    Production Process


    Remote control electric trackless transport cart

    Packing&Shipping


    transfer electric trackless transport cart

    Our Company

    trackless transfer cart 40 ton
    Electric assembly line battery transfer cart

    Electric battery power trackless transfer trolley

    smart electric running transfer cart


    After-sale Service

    • electrical trackless smart transfer trolley


    tags:trackless transfer car,mold trackless transfer car
