    Steel Mill Battery Operated Die Transfer Car On Rail

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE,ISO9000
    Price : $4000-$10000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

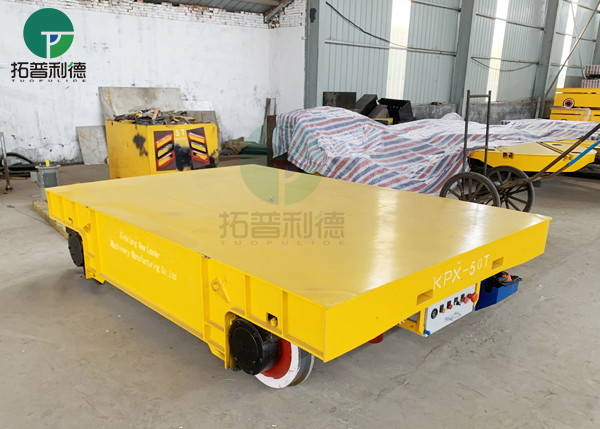

    Steel Mill Battery Operated Die Transfer Car On Rail

    Steel Mill Battery Operated Die Transfer Car On Rail

    Brief Introduction

    The steel mill battery operated die transfer car is powered by battery (lithium battery is optional), which provides power to the motor, which drives the transfer cart forward, backward, stop, etc. The electric flat cart runs on tracks, which are installed in the workplace. The distance between the two tracks matches the size of the car. The load capacityof battery operated transfer cart is customized and it can transport heavy goods. Electric transfer cart is easy to operate, we have a handle controller and wireless remote control. The worker can control battery operated die transfer car operation through buttons on the remote control. Wheel material is cast steel, strong bearing capacity and not easy to rust. Our company has many years of custom experience, can solve the handling needs for you.

    Steel Mill Battery Operated Die Transfer Car On Rail

    Steel Mill Battery Operated Rail Transfer Cart


    Features and Advantages


    Mold factory battery power flat transfer vehicle on rail

    Parameter List


    ModelKPX-2TKPX-5TKPX-10TKPX-16TKPX-20TKPX-25TKPX-30TKPX-40TKPX-50TKPX-63TKPX-80TKPX-100TKPX-150
    Rated load(t)25101620253040506380100150
    Table SizeLength(L)20003500360040004000450045005000550056006000650010000
    Width(W)1500200020002000220022002200250025002500260028003000
    Heigth(H)4505005005505506006006506507008009001200
    Wheel Base(mm)1200250026002800280032003200380042004300470049007000
    Rai lnner Gauge(mm)1200143514351435143514351435143514351435180020002000
    Wheel Dia. (mm)Φ270Φ300Φ300Φ350Φ350Φ400Φ400Φ500Φ500Φ600Φ600Φ600Φ600
    Wheel Quantity(pcs)4444444444448
    Ground Clearance(mm)50505050505050505075757575
    Running Speed(mm)0-250-250-250-200-200-200-200-200-200-200-200-200-18
    Motor Power(kw)11.21.622.233.5456.381015
    Batter Capacity(Ah)180180160180180250250300330400400440600
    Battery Voltage(V)24364848484848484848727272
    Running Time When Full Load4.325.44.84.3443.53.63.333.63.22.9
    Running Distance for One Charge(Km)6.58.17.25.14.84.84.24.343.64.33.83.2
    Max Wheel load(KN)14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
    Reference Wight(t)2.83.64.25.55.96.56.87.6810.812.814.626.8
    Recommend Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100QU100

    Application


    factory 30t transfer battery lift rail car


    Shipping


    Cement factory flatbed 55t transfer battery rail car

    About Us

    factory flatbed 55t transfer battery rail trolley

    Foundry factory electric battery transfer cart on rail

    Foundry factory electric material transfer trolley on rail
