    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : BWP
    Certification : CE,ISO9000
    Price : $7000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 50 days after your prepayment
    • Product Details
    • Company Profile

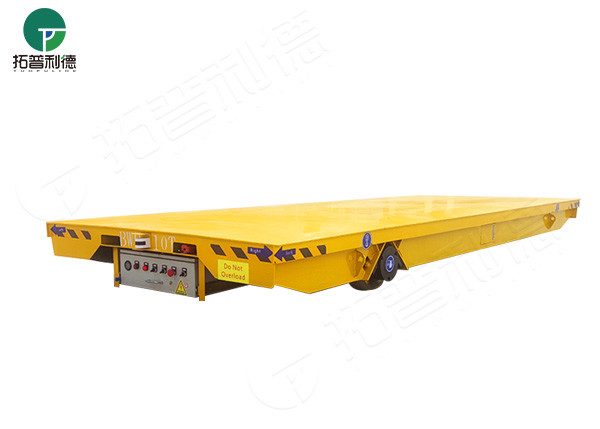

    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart

    200T laser detect sensor battery power steerable heavy duty cart


    Product Introduction

    200T laser detect sensor battery power steerable heavy duty cart running distance is not limited, the use of battery power. The service life of the battery is related to the frequency of use of the battery. The wheel material of the transfer cart is polyurethane coated with rubber wheels, so it will not cause damage to the ground when running, and it can also run on hard ground or slightly uneven ground. The flat cart is equipped with alarm lights to remind the staff to pay attention to safety. The flat car is also equipped withlaser detect sensor that can detect obstacles around it during operation.


    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart

    Parts Details

    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart

    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart


    Safe Operation

    1. The staff must wear all labor protection and protective equipment before entering the workshop, otherwise they are not allowed to enter the production workshop.

    2. Before using the electric flat car, it is necessary to check whether the exterior of the vehicle is in good condition, whether the transmission mechanism and its lubrication condition are normal, remove the production waste or large obstacles stacked on both sides of the track and in the middle, and items that may affect the normal use of the electric flat car, start The use signal should be issued before work.

    3. During the operation of the electric flat car, avoid sudden start and sudden stop, to prevent the danger of slipping of the inertial load and the occurrence of safety accidents.

    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart


    Technical Parameters

    ModelBWP-3T
    Rated Load(t)3t
    Impacted rated load(t)3.2
    structure of framesteel plates welded beam structure
    Thickness of the steel plate12
    Cart weight(t)1
    Wheel load(t)7.7
    Ground requirementcement ground
    Table size(mm)3000x1200
    Height of the whole cart(mm)650
    Space from the ground(mm)50
    Wheels distance1700
    Axles distance4300
    Turning radius(mm)4300
    Turning typeturning while driving without stop
    Control method for turningcontrol button
    Turning structuremechanical
    Wheel diameterФ400/4
    Wheel qualitypolyurethane wheels
    Running speed(m/min)0-12
    Brake principleelectric magnetic force
    Operation methodwith wire or no wire
    Charger motor's installationinstalled on cart
    Function of charger motorautomatic charging
    Warning equipmentsound and light lamp

    Advantages

    1.Our cart can be customized.According to specific demands, we will design auxiliary devices and basic drawings for users free of charge, and provide technical services and drawing materials.;

    2.Provide users with free technical consultation, technical training, and answer product-related questions;

    3.During the warranty period, when the product is damaged or does not work properly due to quality problems, the user will be repaired or replaced with accessories free of charge.

    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart


    Production Process


    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart

    Packing&Shipping


    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart

    Our Company

    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart
    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart

    200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart


    After-sale Service

    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

    • 16 hours engineering service and 24 hours internet service for our customers.

    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

    • 200T Laser Detect Sensor Battery Power Steerable Heavy Duty Cart
