    10 Ton Busbar Powered Bogie Heavy Duty Electrical Industrial Material Transfer Trolley For Sale

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPC
    Certification : CE,ISO9000
    Price : $7000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after your prepayment
    • Product Details
    • Company Profile

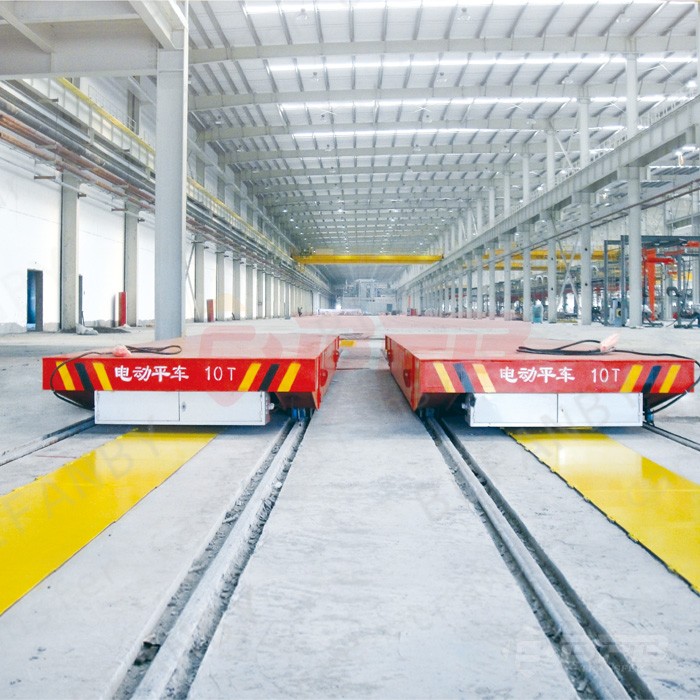

    10 Ton Busbar Powered Bogie Heavy Duty Electrical Industrial Material Transfer Trolley For Sale

    10 Ton Busbar Powered Bogie Heavy Duty Electrical Industrial Material Transfer Trolley For Sale

    Brief Introduction of Electrical Industrial Material Transfer Trolley


    The KPC series’ 10 Ton Busbar Powered Bogie Heavy Duty Electrical Industrial Material Transfer Trolley is powered by the sliding line. The operation system is low voltage 36V power. The hydraulic lifting device can be installed on the electric industrial material transfer trolley.

    This series busbar powered material transfer trolleys are suitable to used in the bad environment, such as high temperature condition. Because of its simple structure, low cost and not so strict requirement on the construction of the railway, it is the first choice for the petrochemical workshops.

    It can running on the straight,“s” or arc-shaped railways rails, when the trolleys handling materials to warehouse, transferring materials or equipment between workshops. Our company is the professional manufacturer of industry electric material transfer trolley with more than 15 years experience in designing and producing,and we have gets CE,ISO,SASO,SGS certificate for this kind busbar powered industrial material transfer trolley.


    busbar power steel pipe handle trolley for steel and iron factory


    Working Principle of Electrical Industrial Material Transfer Trolley


    The working principle of the powered bogie heavy duty industrial material trolley electrical for sale is that the safe sliding wire is set in a channel ditched beside the rail, and also can be set on the ground along the wall. It contacts AC 380V sliding wire directly into the AC electrical control system of the transfer cart to let it start, stop, go forward and backward and so on. The cart gets power from the slider of the safe sliding line which is moved by the cart's running.


    busbar power steel pipe handle trolley for steel and iron factory


    Advantages of Electrical Industrial Material Transfer Trolley


    • Anti-explosion and Anti-high temperature;

    • The powered bogie heavy duty industrial material trolley electrical for sale can Apply to various occasions;

    • Simple structure, low cost;

    • The busbar power steel pipe handle trolley for steel and iron factory has no strict requirement for the construction of the railway;

    • No limit of running and working time;

    • Safe and convenient operation for there is no wire outside the car;

    • Adjustable speed;

    • The powered bogie can running on the straight, “s” or arc-shaped railways rails;

    • The hydraulic lifting device can be installed on the steel pipe handle trolley for powered bogie.

    busbar power steel pipe handle trolley for steel and iron factory


    Application of Electrical Industrial Material Transfer Trolley


    As the professional manufacturer of Industry electric material flat cart ,our busbar powered electrical industrial material transfer trolley is suitable for various industries, steel mill, handling grain, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc. Paper roll plant: transfer paper coil, Painting shops, transfer work-piece into the painting room, Sand blasting room Other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc. agricultural machinery electric cart is composed of Car frame, wheel, sliding wire,gear reducer, motor,electrical control,etc. This series material transfer trolley for material handling is suitable conditions of short running distance( ≤50m ), high using frequency, low height and assemble line works.

    busbar power steel pipe handle trolley for steel and iron factory


    Parameters of Electrical Industrial Material Transfer Trolley


    ModelKPC-2TKPC-10TKPC-20TKPC-30TKPC-50TKPC-63TKPC-100TKPC-150T
    Rated load (T)21020305063100150
    Table sizelength(L)200036004000450040005600650010000
    Width(W)15002000220022002500250028003000
    Height(H)4505005506006507508501200
    Wheel Base (mm)12002600320028004200430049007000
    Rail Inner Gauge (mm)12001435143514351435143520002000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ350Φ500Φ600Φ600Φ600
    Wheel Quantity44444448
    Ground Clearance (mm)5050505050757575
    Running speed (min)0-250-250-200-200-200-200-200-18
    Motor Power (Kw)0.81.52.545.57.51115
    Max Wheel Load (KN)14.442.677.7110.4174221.4343.8265.2
    Reference Weight (t)2.33.83.86.37.610.313.926
    Recommended Rail ModelP15P18P24P38P43P50QU100QU100

    Packing & Delivery of Electrical Industrial Material Transfer Trolley


    busbar power steel pipe handle trolley for steel and iron factory
