5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply

Xinxiang New Leader Machinery Manufacturing Co., Ltd
Contact Now
    Buy cheap 5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply from wholesalers

    Buy cheap 5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply from wholesalers
    • Buy cheap 5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply from wholesalers
    • Buy cheap 5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply from wholesalers
    • Buy cheap 5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply from wholesalers
    • Buy cheap 5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply from wholesalers
    • Buy cheap 5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply from wholesalers
    • Buy cheap 5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply from wholesalers

    5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : electric winch-JK model
    Certification : ISO, CE, SGS,SASO
    Price : 500usd -10000usd
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100sets/month
    Delivery Time : 10 days after get deposit
    • Product Details
    • Company Profile

    5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply

    5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply

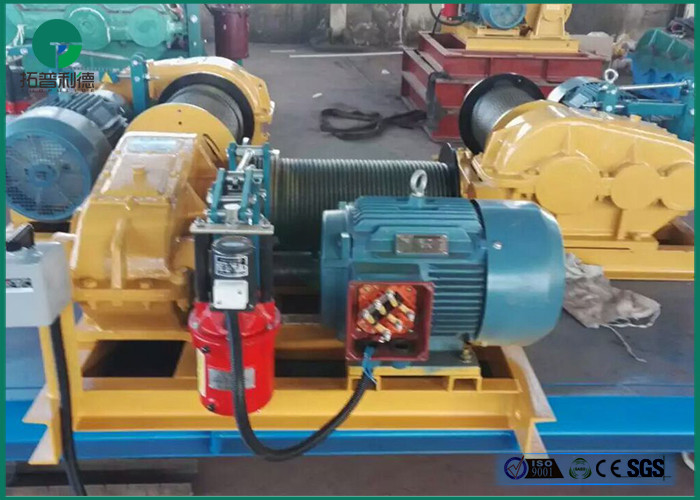

    Brief introduction - Electric Boat Winch


    5-25MT Sing Drum or Double Drums Electric Boat is a kind of light and small lifting equipment that uses the cable reel to wrap the wire rope or chain to lift or pull heavy materials vertically, horizontally or tilted. It can be used alone, and also as the components of many devices, such as gantry crane, road construction, mine, shipyard, etc.


    5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply

    Features - Electric Boat Winch


    1.It has high speed ;
    2.It usually for light duty material;
    3.Max rope length reah to 1500m;
    4.Widely used in factory, mining or cranes;
    5.Compact structure and reasonable design;
    6.Top quality with competitive price.


    5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply


    Application - Electric Boat Winch


    The 5-25MT Sing Drum or Double Drums Electric Boat Winch is used for hoisting and unloading the middle and heavy weight materials, such as all kinds of large and middle concrete construction of steel, installation and disassembly of mechanical equipment, it is suitable for construction and installation engineering of construction, mining area, factory and so on.


    5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply


    Parameter List - Electric Boat Winch


    Model

    Rated Load

    Rated Speed

    Capacity

    Rope Dia

    Motor type

    Motor Power

    Dimensions

    Weight

    JK 0.5

    5KN

    22m/min

    0.5t

    7.7mm

    Y100L-4

    3 KW

    620x701x417mm

    200kg

    JK 1

    10KN

    22m/min

    1t

    9.3mm

    Y112M-4

    4 KW

    620x701x417mm

    300kg

    JK 1.6

    16KN

    24m/min

    1.6t

    12.5mm

    Y132S-4

    5.5 KW

    945x996x570mm

    500kg

    JK 2

    20KN

    24m/min

    2t

    13mm

    Y132M-4

    7.5 KW

    945x996x570mm

    550kg

    JK 3.2

    32KN

    25m/min

    3.2t

    15.5mm

    YZR180L-6

    15 KW

    1325X1335X840mm

    1011kg

    JK 5

    50KN

    30m/min

    5t

    21.5mm

    YZR225M-6

    30 KW

    1900X1620X985mm

    2050kg

    JK 8

    80KN

    25m/min

    8t

    26mm

    YZR280S-8

    45 KW

    1533X1985X1045mm

    3000kg

    JK 10

    100KN

    30m/min

    10t

    30mm

    YZR315S-8

    55 KW

    2250X2500X1300mm

    5100kg

    5-25MT Sing Drum or Double Drums Electric Boat Winch Manufacturer Supply


    Package and Delivery - Electric Boat Winch

    The electric boat winch is packed in a wooden box.


    Inquiry information

    1. Application and working direction?

    2.The pulling force of the winch?

    3. Your demands for working speed?

    4. Wire rope length?


    Tags:Electric Winch,Single Drum Electric Winch
