Brand Name : | Topleader |
Model Number : | BWP |
Certification : | CE,ISO9000 |
Price : | $5000-$15000 |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 600 sets/year |
Delivery Time : | 50 days after receive your prepayment |

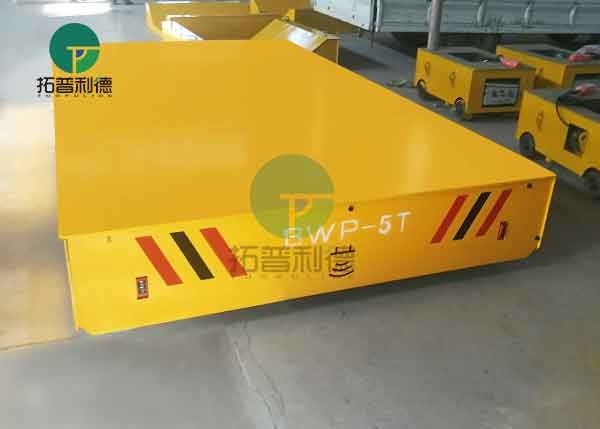

Working Principle of Trackless Motorized Transfer Cart
30 ton Battery Powered Trackless Motorized Transfer Cart Transport Carriage With Pendent Operated is powered by storage battery. The battery is installed in the trackless motorized transfer cart and we also equip intelligent charger for it. The trackless battery platform is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.
The whole battery powered trackless motorized transfer cart pendent operated
transport carriage is composed of motor, reducer, electric appliance and wheels. Due
to more parts, compared with other carts, it has large size. But it
travels flexibly.
The driving wheel and load wheel of the motorized transfer cart is
high strength PU wheel. It is wear-resistance, and has low maintain
cost.
The functions of the trackless motorized transfer cart including
360 degree turning, go forward and backward,turn left and right,
adjust speed button, indicator light, electric indicator light and
other control buttons.
The motor adopts DC traction motor, the protection grade: IP44. Compact structure, large overload capacity, long service life. Excellent load performance, good low-speed performance, big starting torque, small starting current. It is suitable for frequent start and saves electricity. The motor runs with high efficiency in the range of all speeds. The motor adopts imported high-speed bearing retaining oil, and it is of free maintenance, high reliability and long service life.
The trackless motorized transfer cart can be widely applied in many
fields, such as steel industries (steel coil, hot metal ladle,
dies, molds, steel pipes, steel pates, steel bars and other steel
parts transport), ship industries, petroleum industries, painting
industries, precast concrete factories, quarry plants, transformer
plants, turbine plants, paper making plants, coking plants, boiler
plants, power station, textile plants, cement factories, machinery
factories, construction sites, production line, workshop, warehouse
and other fields for materials, workpieces, machines transport from
one bay to another.
Model | BWP-30T |
Rated Load(t) | 30t |
Impacted rated load(t) | 95 |
structure of frame | steel plates welded beam structure |
Thickness of the steel plate | 16 |
Cart weight(t) | 10.5 |
Wheel load(t) | 12 |
Ground requirement | steel plate floor |
Table size(mm) | 6000x2300 |
Height of the whole cart(mm) | 700 |
Space from the ground(mm) | 50 |
Wheels distance | 1800 |
Axles distance | 5200 |
Turning radius(mm) | 5200 |
Turning type | turning while driving without stop |
Control method for turning | control button |
Turning structure | mechanical |
Wheel diameter | Ф500/6 |
Wheel quality | polyurethane wheels |
Running speed(m/min) | 0-12 |
Brake principle | electric magnetic force |
Operation method | with wire or no wire |
Charger motor's installation | installed on cart |
Function of charger motor | automatic charging |
Warning equipment | sound and light lamp |
