    Trackless Handling Vehicle Steerable Transfer Trolley For Open Die Shultting In Factory

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : BWP
    Certification : CE,ISO9000
    Price : $5000-$15000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 50 days after receive your prepayment
    • Product Details
    • Company Profile

    Trackless Handling Vehicle Steerable Transfer Trolley For Open Die Shultting In Factory

    Trackless Handling Vehicle Steerable Transfer Trolley For Open Die Shultting In Factory

    Working Principle of steerable transfer trolley for open die shultting



    Trackless transfer trolley is powered by storage battery. The battery is installed in the trackless platform and we also equip intelligent charger for it. The trackless battery platform is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.

    Trackless Handling Vehicle Steerable Transfer Trolley For Open Die Shultting In FactoryTrackless Handling Vehicle Steerable Transfer Trolley For Open Die Shultting In Factory

    Description of trackless handling vehicle for open die shultting in factory


    The whole trackless transfer vehicle is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it travels flexibly.

    The driving wheel and load wheel of trackless handling vehicle is high strength PU wheel. It is wear-resistance, and has low maintain cost.

    The functions of the steerable transfer trolley including 360 degree turning, go forward and backward,turn left and right, adjust speed button, indicator light, electric indicator light and other control buttons.


    Trackless Handling Vehicle Steerable Transfer Trolley For Open Die Shultting In Factory



    Application of trackless handling vehicle steerable transfer trolley


    This kind of trackless transfer trolley is commonly applied in factory or warehouse to transfer heavy materials, such as steel workpiecs, machine parts etc.


    Trackless Handling Vehicle Steerable Transfer Trolley For Open Die Shultting In Factory

    Technical parameters of steerable transfer trolley for open die shultting


    ModelBWP-70T
    Rated Load(t)70t
    Impacted rated load(t)95
    structure of framesteel plates welded beam structure
    Thickness of the steel plate16
    Cart weight(t)10.5
    Wheel load(t)12
    Ground requirementsteel plate floor
    Table size(mm)6000x2300
    Height of the whole cart(mm)700
    Space from the ground(mm)50
    Wheels distance1800
    Axles distance5200
    Turning radius(mm)5200
    Turning typeturning while driving without stop
    Control method for turningcontrol button
    Turning structuremechanical
    Wheel diameterФ500/6
    Wheel qualitypolyurethane wheels
    Running speed(m/min)0-12
    Brake principleelectric magnetic force
    Operation methodwith wire or no wire
    Charger motor's installationinstalled on cart
    Function of charger motorautomatic charging
    Warning equipmentsound and light lamp

    Advantage of trackless handling vehicle die shultting in factory


    The motor adopts DC traction motor, the protection grade: IP44. Compact structure, large overload capacity, long service life. Excellent load performance, good low-speed performance, big starting torque, small starting current. It is suitable for frequent start and saves electricity. The motor runs with high efficiency in the range of all speeds. The motor adopts imported high-speed bearing retaining oil, and it is of free maintenance, high reliability and long service life.

    Trackless Handling Vehicle Steerable Transfer Trolley For Open Die Shultting In Factory

    Manufacturing of trackless handling vehicle steerable transfer trolley



    Trackless Handling Vehicle Steerable Transfer Trolley For Open Die Shultting In Factory

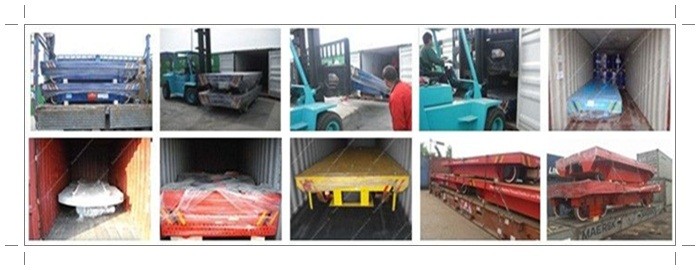

    Delivery of trackless handling vehicle for open die shultting in factory


    Trackless Handling Vehicle Steerable Transfer Trolley For Open Die Shultting In Factory

    Customer visit in our factory from worldwide


    Trackless Handling Vehicle Steerable Transfer Trolley For Open Die Shultting In Factory

    After-sale service


    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

    Our team



    Our factory
