    Steel Industry Automatic Transfer Carriage Rail Guided Powered Trolley With Rollers

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE,ISO9000
    Price : $5000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

    Steel Industry Automatic Transfer Carriage Rail Guided Powered Trolley With Rollers

    Steel Industry Automatic Transfer Carriage Rail Guided Powered Trolley With Rollers

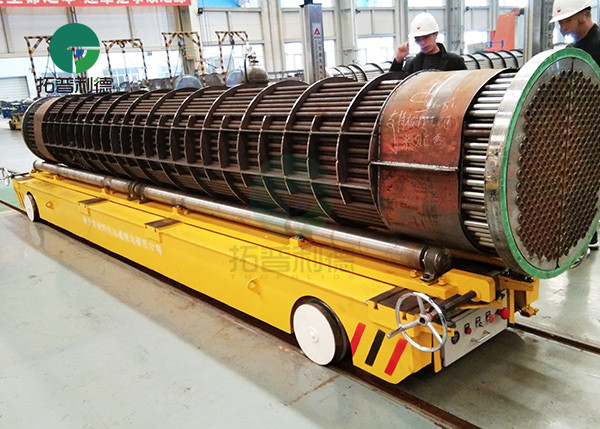

    Introduction --- Rail Guided Powered Trolley


    KPX series rail guided powered trolley powered by the storage battery. It has been installed in the transfer trolley, battery directly to the DC traction power supply. DC motors and AC motors are easily damaged in comparison, start torque, strong overload capability advantages.

    Compare wtih KPJ, KPD series electric transfer trolley, it is of the greater flexibility in security and mobility. The running distance is not limited and without demand of rail isolation,so the construction is convenient and the cost is low.

    This type of electric transfer trolley can provide the following optional parts for the customer to further improve the efficiency of (1) maintenance-free battery (2) import Promise speed control, dual speed control (3) the import of industrial wireless remote control


    Steel Industry Automatic Transfer Carriage Rail Guided Powered Trolley With Rollers


    Rail Guided Powered Trolley Details

    Steel Industry Automatic Transfer Carriage Rail Guided Powered Trolley With Rollers


    Parameter List --- Rail Guided Powered Trolley


    Model

    KPX-2T

    KPX-10T

    KPX-20T

    KPX-30T

    KPX-50T

    KPX-63T

    KPX-150T

    Rated load (T)

    2

    10

    20

    30

    50

    63

    150

    Table size

    length(L)

    2000

    3600

    4000

    4500

    5500

    5600

    10000

    Width(W)

    1500

    2000

    2200

    2200

    2500

    2500

    3000

    Height(H)

    450

    500

    550

    600

    650

    700

    1200

    Wheel Base (mm)

    1200

    2600

    2800

    3200

    4200

    4300

    7000

    Rail Inner Gauge (mm)

    1200

    1435

    1435

    1435

    1435

    1435

    2000

    Wheel Diameter(mm)

    Φ270

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    50

    75

    75

    Running speed (min)

    0-25

    0-25

    0-20

    0-20

    0-20

    0-20

    0-18

    Motor Power (Kw)

    1

    1.6

    2.2

    3.5

    5

    6.3

    15

    Battery Capacity(Ah)

    180

    160

    180

    250

    330

    400

    600

    Battery Voltage(V)

    24

    48

    48

    48

    48

    48

    72

    Running Time When Full Load

    4.32

    4.8

    4

    3.5

    3.3

    3

    2.9

    Running Distance for one Charge(Km)

    6.5

    7.2

    4.8

    4.2

    4

    3.6

    3.2

    Max Wheel Load (KN)

    14.4

    42.6

    77.7

    110.4

    174

    221.4

    265.2

    Reference Weight (t)

    2.8

    4.2

    5.9

    6.8

    8

    10.8

    26.8

    Recommended Rail Model

    P15

    P18

    P24

    P38

    P43

    P50

    QU100


    Application --- Rail Guided Powered Trolley


    The rail guided powered trolley is mainly applied in assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).


    Steel Industry Automatic Transfer Carriage Rail Guided Powered Trolley With Rollers


    Delivery & Package --- Rail Guided Powered Trolley

    Steel Industry Automatic Transfer Carriage Rail Guided Powered Trolley With Rollers


    Customer Visit --- Rail Guided Powered Trolley


    Steel Industry Automatic Transfer Carriage Rail Guided Powered Trolley With Rollers


    Processing --- Rail Guided Powered Trolley


    Steel Industry Automatic Transfer Carriage Rail Guided Powered Trolley With Rollers


    Our After-Sale Service


    Our company promises to “produce high-quality products, provide satisfactory services, and strive to create the first brand of transfer cart”. In order to ensure that your interests are realized, we have established a rapid quality information feedback system and a technically sturdy and well-resourced technical service team. We are enthusiastic to provide you with the following services:

    Our company promises that the designed safety factor of the transfer cart loading should not be lower than 120%. According to user's specific conditions, free design auxiliary equipment or foundation drawings, and free provide technical services or drawing. Free send personal to work site install or debug or guide the installation. While promptly solving the quality problems of the sold products, the after-sales service personnel are obliged to provide users with technical consultation, technical training and answering questions relating to other products at no cost.
