    After-sales Service Provided High Quality Electric Rail Tractor Trolley

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE,ISO9000
    Price : $5000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

    After-sales Service Provided High Quality Electric Rail Tractor Trolley

    After-sales Service Provided High Quality Electric Rail Tractor Trolley

    Introduction of Electric Rail Tractor Trolley

    After-sales Service Provided High Quality Electric Rail Tractor Trolley

    After-sales Service Provided High Quality Electric Rail Tractor Trolley

    KPX series Electric Rail Tractor Trolleypowered by the storage battery. It has been installed in the flat car battery directly to the DC traction power supply. DC motors and AC motors are easily damaged in comparison, start torque, strong overload capability advantages.

    Compare wtih KPJ, KPD series ,it is of the greater flexibility in security and mobility.The running distance is not limited and without demand of rail isolation,so the construction is convenient and the cost is low.

    This type of electric flat car can provide the following optional parts for the customer to further improve the efficiency of (1) maintenance-free battery (2) import Promise speed control, dual speed control (3) the import of industrial wireless remote control

    .

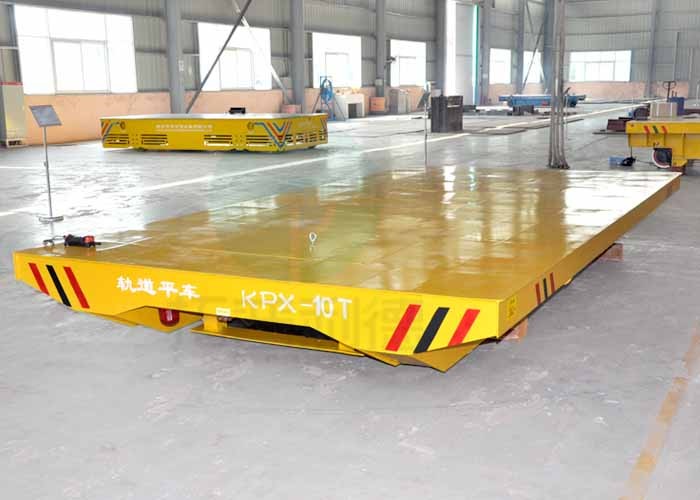

    Electric Rail Tractor Trolley details:


    After-sales Service Provided High Quality Electric Rail Tractor Trolley


    Parameter of Electric Rail Tractor Trolley:


    ModelKPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100

    Electric Rail Tractor Trolley application:


    The Heavy load Transporters is mainly applied in assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).


    After-sales Service Provided High Quality Electric Rail Tractor Trolley


    Our Packaging of Electric Rail Tractor Trolley:

    After-sales Service Provided High Quality Electric Rail Tractor Trolley


    Customer visit of Electric Rail Tractor Trolley


    After-sales Service Provided High Quality Electric Rail Tractor Trolley


    Processing of Electric Rail Tractor Trolley:


    After-sales Service Provided High Quality Electric Rail Tractor Trolley


    Our after-sale service:


    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

    • 16 hours engineering service and 24 hours internet service for our customers.

    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
