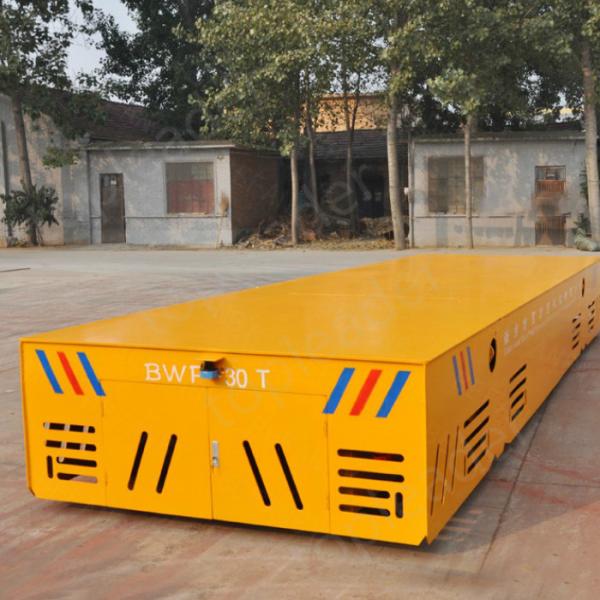

    Self-Propelled Explosion Proof Battery Operated Trackless Transfer Car

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : BWP-75T
    Certification : CE,ISO9000
    Price : $5000-$15000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 50 days after receive your prepayment
    • Product Details
    • Company Profile

    Self-Propelled Explosion Proof Battery Operated Trackless Transfer Car

    Self-propelled explosion proof battery operated trackless transfer car


    Working principle of battery operated trackless transfer car


    Trackless transfer car is powered by storage battery. The battery is installed in the trackless platform and we also equip intelligent charger for it. The trackless battery platform is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.


    Self-Propelled Explosion Proof Battery Operated Trackless Transfer Car


    Description of battery operated trackless transfer car


    The whole trackless transfer car is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it travels flexibly.

    The driving wheel and load wheel of trackless car is high strength PU wheel. It is wear-resistance, and has low maintain cost.

    The functions of the trackless battery platform including 360 degree turning, go forward and backward,turn left and right, adjust speed button, indicator light, electric indicator light and other control buttons.


    Self-Propelled Explosion Proof Battery Operated Trackless Transfer Car





    Application of trackless transfer car


    This kind of trackless battery platform is commonly applied in factory or warehouse to transfer heavy materials, such as steel workpiecs, machine parts, etc.


    Self-Propelled Explosion Proof Battery Operated Trackless Transfer Car Self-Propelled Explosion Proof Battery Operated Trackless Transfer Car
    Self-Propelled Explosion Proof Battery Operated Trackless Transfer Car Self-Propelled Explosion Proof Battery Operated Trackless Transfer Car


    Technical parameters of trackless transfer car


    Model

    BWP-70T

    Rated Load(t)

    70t

    Impacted rated load(t)

    95

    structure of frame

    steel plates welded beam structure

    Thickness of the steel plate

    16

    Cart weight(t)

    10.5

    Wheel load(t)

    12

    Ground requirement

    steel plate floor

    Table size(mm)

    6000x2300

    Height of the whole cart(mm)

    700

    Space from the ground(mm)

    50

    Wheels distance

    1800

    Axles distance

    5200

    Turning radius(mm)

    5200

    Turning type

    turning while driving without stop

    Control method for turning

    control button

    Turning structure

    mechanical

    Wheel diameter

    Ф500/6

    Wheel quality

    polyurethane wheels

    Running speed(m/min)

    0-12

    Brake principle

    electric magnetic force

    Operation method

    with wire or no wire

    Charger motor's installation

    installed on cart

    Function of charger motor

    automatic charging

    Warning equipment

    sound and light lamp


    Advantage of battery operated transfer car


    The motor adopts DC traction motor, the protection grade: IP44. Compact structure, large overload capacity, long service life. Excellent load performance, good low-speed performance, big starting torque, small starting current. It is suitable for frequent start and saves electricity. The motor runs with high efficiency in the range of all speeds. The motor adopts imported high-speed bearing retaining oil, and it is of free maintenance, high reliability and long service life.



    Manufacturing of trackless transfer car


    Self-Propelled Explosion Proof Battery Operated Trackless Transfer Car


    Delivery of trackless transfer car


    Self-Propelled Explosion Proof Battery Operated Trackless Transfer Car


    Customer visit in our factory from world wide


    Self-Propelled Explosion Proof Battery Operated Trackless Transfer Car




    After-sale service

    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

    • 16 hours engineering service and 24 hours internet service for our customers.

    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
