    Mobile Cable Machine Parts Transfer Container Handling Pallet Rail Wagon

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPT
    Certification : CE, ISO9001
    Price : $5000-$12000
    Payment Terms : L/C, T/T
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

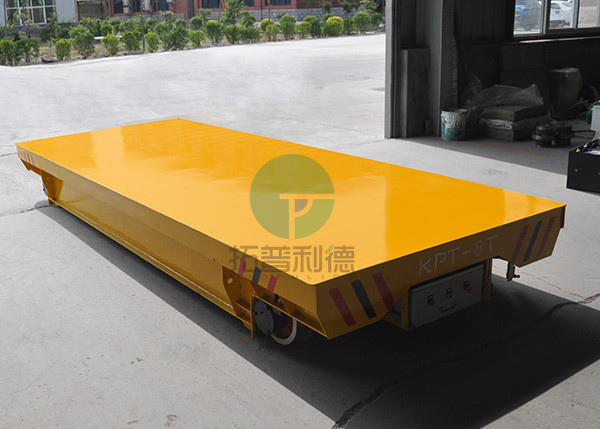

    Mobile Cable Machine Parts Transfer Container Handling Pallet Rail Wagon

    Mobile Cable Machine Parts Transfer Container Handling Pallet Rail Wagon


    Brief Introduction ---pallet rail wagon


    This series of pallet rail wagon is suitable for occasions with a running distance of less than 20m, a high frequency of use and a low vehicle height. Due to the simple mechanism and low cost, it is a common track flat car with a cross-span of the workshop. Tows can be used to reduce cable wear in slower speeds. The running distance of this series of pallet rail wagon should not be too long, generally less than 20m. Due to the simple mechanism and low cost, it is a common track pallet rail wagon in the workshop. It can be used in the occasion of short running distance and slow running speed. To reduce cable wear, it is suitable for occasions with high frequency of use and low vehicle height. The running distance of this series of pallet rail wagon is generally less than 20m. In the case of slow running speed and short running distance, the drag chain can be used to reduce the wear of the cable. The mechanism is simple and the cost is low. It is a common cross-track flat in the workshop. The car is suitable for occasions with high frequency of use and low vehicle height.

    Mobile Cable Machine Parts Transfer Container Handling Pallet Rail Wagon

    Product Details--- pallet rail wagon


    Steel Welding Frame

    Cast Steel Wheel

    Mobile Cable

    Reducer

    Handle & Remote Control

    Sound & Light Alarm

    Product Features --- pallet rail wagon

    This series of electric pallet rail wagon has strong carrying capacity and table deformation is small; The flatness of the series of pallet rail wagon is higher;the whole car is composed of 4 wheels the vehicle runs smoothly; the car starts slowly and accelerates;pallet rail wagon can achieve the ability to climb; pallet rail wagon powered by tow cable;This series of pallet rail wagon has a short running distance.


    Mobile Cable Machine Parts Transfer Container Handling Pallet Rail Wagon


    Advantages --- pallet rail wagon


    Safe and environment friendly

    Big starting power

    Small impact to the gear reducer

    No restriction of the running distance

    Can running on s-shape rail, arc-shape rails

    Has no limit on working distance

    Anti-explosion, anti-high temperature

    Long lifetime


    Mobile Cable Machine Parts Transfer Container Handling Pallet Rail Wagon


    Parameter List --- pallet rail wagon


    Model

    KPT-2T

    KPT-5T

    KPT-10T

    KPT-20T

    KPT-30T

    KPT-50T

    KPT-100T

    KPT-150T

    Rated load (T)

    2

    5

    10

    20

    30

    50

    100

    150

    Table size

    length(L)

    2000

    3500

    3600

    4000

    4500

    5500

    6500

    10000

    Width(W)

    1500

    2000

    2000

    2200

    2200

    2500

    2800

    3000

    Height(H)

    450

    450

    500

    550

    600

    650

    850

    1200

    Wheel Base (mm)

    1200

    2500

    2600

    2800

    3200

    4200

    4900

    7000

    Rail Inner Gauge (mm)

    1200

    1435

    1435

    1435

    1435

    1435

    2000

    2000

    Wheel Diameter(mm)

    Φ270

    Φ300

    Φ300

    Φ350

    Φ400

    Φ500

    Φ600

    Φ600

    Wheel Quantity(Nos)

    4

    4

    4

    4

    4

    4

    4

    8

    Ground Clearance (mm)

    50

    50

    50

    50

    50

    50

    75

    75

    Running speed (m/min)

    0-30

    0-30

    0-25

    0-25

    0-25

    0-20

    0-20

    0-18

    Motor Power (Kw)

    0.8

    1.5

    1.5

    2.5

    4

    5.5

    11

    15

    Max Wheel Load (KN)

    14.4

    25.8

    42.6

    77.7

    110.4

    174

    343.8

    265.2

    Reference Weight (t)

    2.5

    3.5

    4

    5.6

    6.5

    7.8

    14.1

    26.2

    Recommended Rail Model

    P15

    P18

    P18

    P24

    P38

    P43

    QU100

    QU100


    Application --- pallet rail wagon


    The pallet rail wagon is mainly applied in assembly line (ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, the transport, steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction (bridge, simple building, concrete, concrete column), petroleum industry (oil pump, sucker rod and parts), energy (polycrystalline silicon, generator, windmill), chemical industry (electrolytic cell, retort etc), railway (rail maintenance, rail welding, train tractor).
