    High temperature electric driven steel ladle transfer car on curved rail

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX-30T ladle transfer car
    Certification : CE,ISO9000
    Price : $7000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after your prepayment
    • Product Details
    • Company Profile

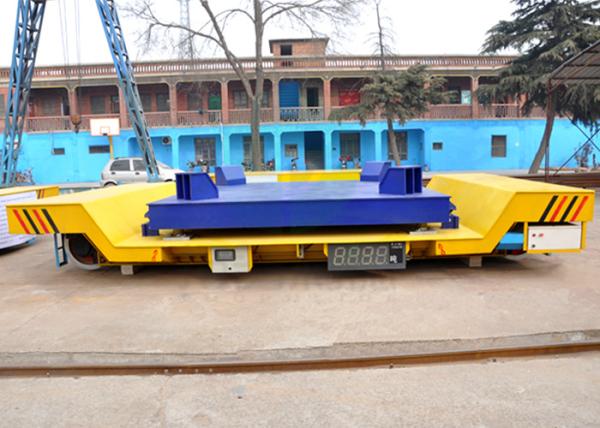

    High temperature electric driven steel ladle transfer car on curved rail


    High temperature electric driven steel ladle transfer car on curved rail


    Working principle of ladle transfer car


    The steel ladle transfer car on curved rail is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive rail ladle car working.


    High temperature electric driven steel ladle transfer car on curved rail



    Description of ladle transfer car


    The ladle transfer car on curved rail use heat insulating material, it can resist the high - temperature. In order to ensure safety and working frequency, the ladle transfer car usually prepared two motors, When one is damaged, the other one can be used to continue the work.


    This kind of ladle transfer car can solve problems with high temperature steel ladle, liquid iron ladle transferring in metallurgy industry.


    Curved rail ladle transfer car is specially designed to transfer the high-temperature ladle. This kind of cart has strict requirements on safety and anti-high temperature, so the material, driving system and electrical parts of the cart should be specially designed.


    Storage batteryBattery Charger
    Electric Control BoxSound & Light Alarm




    Photos of ladle transfer car


    High temperature electric driven steel ladle transfer car on curved rail High temperature electric driven steel ladle transfer car on curved rail

    High temperature electric driven steel ladle transfer car on curved rail High temperature electric driven steel ladle transfer car on curved rail



    Application of ladle transfer car

    The curved rail ladle transfer car is commonly applied in steel industry or metallurgy industry to transfer liquid steel, steel ladle, steel scraps, etc. It can be used within workshop handling or between workshops.


    In order to ensure the platform and driving system damaged by high-temperature, there is firebrick laid on the platform of the ladle. Or the driving system is protected by special design.


    High temperature electric driven steel ladle transfer car on curved rail High temperature electric driven steel ladle transfer car on curved rail

    Technical parameters of curved rail ladle transfer car


    ModelKPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100

    Other kind of ladle transfer car


    High temperature electric driven steel ladle transfer car on curved rail High temperature electric driven steel ladle transfer car on curved rail


    Manufacturing of curved rail ladle transfer car


    High temperature electric driven steel ladle transfer car on curved rail

    Delivery of curved rail ladle transfer car


    High temperature electric driven steel ladle transfer car on curved rail


    Customer visit in our factory from world wide



    High temperature electric driven steel ladle transfer car on curved rail

    Rail transfer cart applied at site in customers' factory



    High temperature electric driven steel ladle transfer car on curved rail

    After-sale service

    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.

    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.

    • 16 hours engineering service and 24 hours internet service for our customers.

    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.

    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
