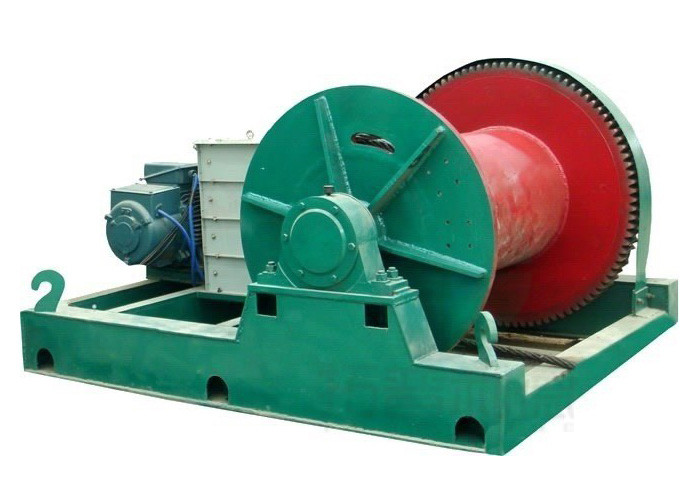

Large capacity building construction winch to lift construction materials


Brief introduction for electric winch
Winch is driven by human or electric power, winding ropes to complete the traction device for work, which can be vertical, horizontal or inclined pulling heavy objects. Divided into manual and electric winch.
Electric winch is powered by electric, and it composed by electric motor, coupling, brake, gear box,drum and frame.
Electric winch has the JK fast speed and JM slow speed two types, it is also has the single drum and doule drum.

Application for large capacity building material winch
Large capacity building construction winch is uaually lifitng or pulling middle duty and heavy duty material or cargo.
It is mainly used for material lifting and towing heavy weights for construction building, underground mining, road and bridge construction, factory,mines engineer,harbor,etc.

For working together with crane, we can design the hoisting lifting electric winch for lifitng heavy duty, we also can produce the anti-proof crane hoisting lifting winch.

Model		JM2	JM3	JM5	JM8	JM10
Line pull capacity (kg)		2000	3000	5000	8000	10000
Wire rope average speed (m/min)		12	10	10	10	9
Wire rope(mm):		12.5	15.5	21.5	26	30
Reduction box	Type	JZQ350	JZQ350	JZQ400	JZQ500	JZQ650
	Transmission ratio	23.34	31.5	23.34	31.5	40.17
Drum (mm)	Diameter()	273	325	406	500	550
	Length	480	520	645	900	1000
Capacity(m)		150	180	250	300	450
motor	Type	YZ160M2-6	YZ160M2-6	YZ160L-6	YZR225M-8	YZR250M1-8
	Power(kW)	7.5	7.5	11	22	30
	Rotate speed(r/min)	948	948	953	720	720
Hydraulic Brake		YWZ-200/25	YWZ-200/25	YWZ-300/45	YWZ-300/45	YWZ-300
Equipment Dimension (cm)		142 x96 x62	154 x107 x70	185 x135 x90	205x275x105	220x190x110
Weight(kg)		630	680	1400	3000	4000

Advantages of the building construction winch

Components of the Electric winch


Package and delivery





About us
Xinxiang New Leader machinery manufacturing Co., Ltd is founded in 2015, which is devoted to sell screening equipment, lifting equipment, conveyor equipment, and handling equipment. Our products cover linear vibrating screen, rotatory vibration screen, hoist, winch, rail transfer car, steerable transfer car, conveyor and related accessories, wheel, motor, reducer etc.

Xinxiang New Leader Machinery Manufacturing Co., Ltd is devoted to manufacture and sell lifting and material handling equipment with 15 years experience. NEWLD is a professional and international handling equipment company integrating R&D, design, production and sales. It has a modern management team, technical team and production technician team.

Our company is located in Xinxiang city, Henan province, covering an area of 33,300 square meters. It has a modern large-scale factory building, world-advanced production equipment and office equipment. The company has more than 150 employees, including 8 engineers and more than 20 technicians. The company has a first-class research and design team, which can undertake the design and production of various non-standard handling equipment.

NEWLD can not only provide transfer cart quotations, but also provide you with satisfactory handling solutions.

We can produce 1-1500 ton range of various tonnage of AGV, RGV, rail transfer cart, trackless transfer cart, flatbed trailer, towing tractor, locomotive turntable, industrial turntable and so on with more than 90 products. Customized all kinds of function required, such as turning, lifting, tilting, climbing, roller, anti-high temperature, anti-explosion, etc.. Newld also can provide transfer cart parts, including rail wheel, rail and rail accessories, industrial winch and so on.

Our products have a wide application field including metallurgy industry, machinery manufacturing industry, steel mill, mine industry, power industry, mold industry, automobile assembly industry, shipyard industry etc.

Our product has been exported to more than 90 countries and regions, such as Indonesia, America, Russia, Brazil, United Arab Emirates, Pakistan, Middle East, Saudi Arabia, Bangladesh, Philippines, Canada, Azerbaijani, Kuwait, Dubai, Egypt, Nepal, Vietnam, Laos, Myanmar, Germany, etc.
