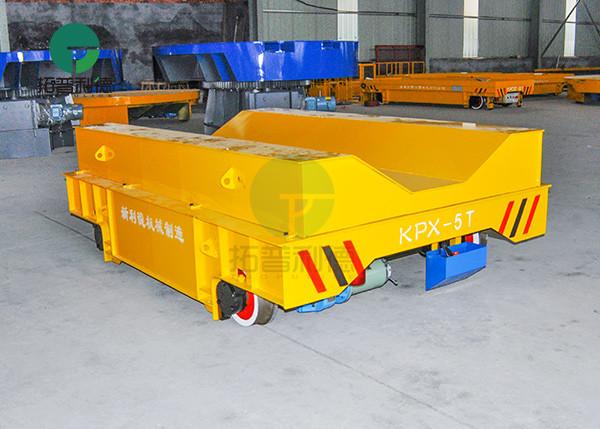

    1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE, ISO9001
    Price : $7000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600sets/year
    Delivery Time : 30-40 days after your prepayment
    • Product Details
    • Company Profile

    1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle


    1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle


    Working principle of copper coil vehicle


    KPX copper coil vehicle are battery powered. The batteries are installed in the carts. The batteries supply electricity to the DC motor through the electrical control system. We use this principle to operate the carts, for example, start, stop, go forward and backward, adjust the speed and so on.


    1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle

    Description of copper coil vehicle

    The DC motor has the advantages of stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on. Compared with the KPJ and KPD flat carts, the KPX series copper coil vehicle are more safe and flexible. The running distance is not limited. It has no strict requirement for the construction of the railway. KPX series copper coil vehicle are suitable to be used in the long distance transportation and low using frequency. The batteries need maintenance once a regular time. The lifetime of the batteries is about 3-5 years.

    For the s and arc-shaped rail transfer wagon, the wheels are specially designed so that it is able to run on s and arc-shaped rails. This transfer wagon is electrically powered by battery. The battery can work 4-5 hours with full load.


    Storage battery Battery charger Electric control box

    Sound & light alarm Remote control Casting wheel


    Application of copper coil vehicle


    This kind of rail transfer cart with V-frame for production line is commonly applied in factory or warehouse to transfer heavy materials, such as steel workpiecs, machine parts etc.



    1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle 1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle
    1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle 1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle


    Technical parameters of production line rail transfer cart


    ModelKPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100

    Application of copper coil vehicle


    1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle 1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle

    1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle 1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle


    Manufacturing of copper coil vehicle


    Delivery of copper coil vehicle


    1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle


    What Product Handling Applications Use Transfer Carts?


    1. Coils (V-Groove deck)
    2. Tanks (size/stability for uniformly distributed loads)
    3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
    4. Sub-Assembly shuttle from one line to another line
    5. Maintenance cart for motors and pumps
    6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
    7. Material shuttle for steel tubing (flat decking with guard rails)
    8. Elevating platform for assembly process (integrated screw-jack table)
    9. Sand casting (flat decking)

    1-50 Ton Factory Transport Steer Rail Transfer Copper Coil Vehicle
