Factory direct price electric construction winch for vertical lifting

Thanks for interesting our winch.

Please provide the following info to us before quotation

1. The pulling capacity of winch

2. How many rope you need?

3. How do you use the winch, level pulling, vertical pulling or angle pulling?

4.What speed you need rope?

5. Your power supply,electric, hydraulic or diesel

More info,please see the follwing content


Brief introduction for electric winch
Winch is driven by human or electric power, winding ropes to complete the traction device for work, which can be vertical, horizontal or inclined pulling heavy objects. Divided into manual and electric winch.

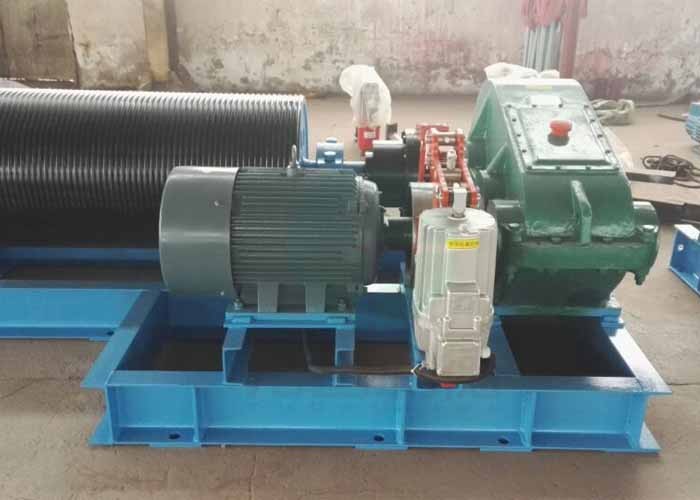

Electric winch is powered by electric, and it composed by electric motor, coupling, brake, gear box,drum and frame.
Electric winch has the JK fast speed and JM slow speed two types, it is also has the single drum and doule drum.

Application for wire rope pulling steel electric winch
wire rope pulling steel electric winch is uaually lifitng or pulling middle duty and heavy duty material or cargo.
It is mainly used for material lifting and towing heavy weights for construction building, underground mining, road and bridge construction, factory,mines engineer,harbor,etc. It often match the rail trolley and use together. We attahched the application solution. If you are ineterested, please contact us.

Model		JM2	JM3	JM5	JM8	JM10
Line pull capacity (kg)		2000	3000	5000	8000	10000
Wire rope average speed (m/min)		12	10	10	10	9
Wire rope(mm):		12.5	15.5	21.5	26	30
Reduction box	Type	JZQ350	JZQ350	JZQ400	JZQ500	JZQ650
	Transmission ratio	23.34	31.5	23.34	31.5	40.17
Drum (mm)	Diameter()	273	325	406	500	550
	Length	480	520	645	900	1000
Capacity(m)		150	180	250	300	450
motor	Type	YZ160M2-6	YZ160M2-6	YZ160L-6	YZR225M-8	YZR250M1-8
	Power(kW)	7.5	7.5	11	22	30
	Rotate speed(r/min)	948	948	953	720	720
Hydraulic Brake		YWZ-200/25	YWZ-200/25	YWZ-300/45	YWZ-300/45	YWZ-300
Equipment Dimension (cm)		142 x96 x62	154 x107 x70	185 x135 x90	205x275x105	220x190x110
Weight(kg)		630	680	1400	3000	4000

Advantages of the pulling steel electric winch

Composed part of electric winch


Package and delivery
