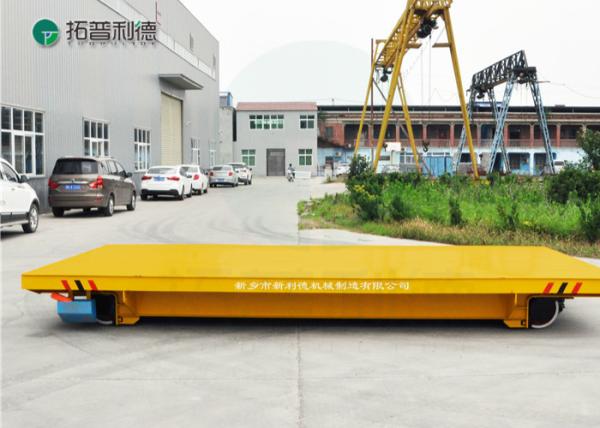

80T Motorized Rail Trailer for shop production line cargo handling

working principle :

80T Motorized Rail Trailer powered by the 36V single-phase (three phase) low voltage rail, which through sliding wire to complete. Ground step-down transformer control cabinet will be single phase (three phase) AC 380V step-down to single-phase (3Phase) 36V, sent to the flat car by the rail sliding wire, and then step-up (three phase) single-phase AC 380V by step-up transformers on the car, provide electricity for the single-phase capacitor motors which used in the car.

Functions & Advantages Of 80T Motorized Rail Trailer

• 80T Motorized Rail Trailer is Anti-high temperature,Anti-high explosion;
• 80T Motorized Rail Trailer is powered by low voltage electricity from the railway;
• With lifting holes, cargo transfer cart on-rail is convenient to shipment;
• The cargo transfer cart on-rail has a feature of stable start, big starting power, long lifetime;

Technical Parameters of 60t motorized roadrail lorry

Model	KPDZ-80T
Rated Load(t)	80
Table size(mm)	5000*2500*650
Wheel Base(mm)	3800
Rail Gauge(mm)	1435
Wheel Diameter(mm)	Ф500
Wheel Quantity(Pcs)	4
Ground Clearance(mm)	50
Running Speed(m/min)	0-20
Motor Power(Kw)	4
Transformer Power(KVA)	10
Transformer Quantity(Set)	1
Running Distance(m)	60
Max Wheel Load(KN)	142.8
Reference Weight(t)	7.6
Recommended Rail Model	P43

Application of 80T Motorized Rail Trailer

80T Motorized Rail Trailer is applied in mould factory to transfer injection mold sand mold. The hydraulic lifting device can be added..
For convenience, 80T Motorized Rail Trailer is remore control. In order to ensure operator' safety, the V- frame can be added on the platform of the cart.
We can recommend you a suitable auxiliary to you according to the coil dimension, coil weight, etc.

Product Name	80T Motorized Rail Trailer
Material	Cast steel, Q235B
Table size	4000*2200*600mm( other dimensioncan be customized)
Color	customized
Certificate	CE, SGS, ISO9001, SAS0
Advantages	Safety, flexibility, stable start
	High using frequency
	No restriction of the running time Simple operation and High efficiency
Application	painting line of steel mill, shipyard, machining.

Producing line of 80T Motorized Rail Trailer

Details of 80T Motorized Rail Trailer

Packing & Delivery of 80T Motorized Rail Trailer

Packing Details : The whole painting line use transfer cart carriage is packed by the tarp, the parts will be packed by polywood case
Delivery Details : 3-30 days after order of Solid bicycle tire tubes

Customers

Other products

Company glance

Remark:

For industrial rails car, we can customized as per the following demand:

1. Speed variable

2.Table size and load capacity

3.For part brand choice: SEW motor,SEW gearbox, ABB electrical, Sweden remote control, SKF, FAG bearing,ABB VFD

4.Lifting ,dumping function can be added

5. Safe device: rail limit switch, obstable detecting device, buffer, warning light etc

6.Automation function: promixity switch can stop at fixed point, PLC control etc.
