    10 T Electric Movable Lift Platform For Industrial Product Handling

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPX
    Certification : CE,ISO9000
    Price : US$6000-$10000/set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after your prepayment
    • Product Details
    • Company Profile

    10 T Electric Movable Lift Platform For Industrial Product Handling

    10 t electric movable lift platform for industrial product handling

    Brief introduction of electric movable lift platform


    The electric movable lift platform is supplied by battery..

    KPX series electric movable lift platform is powered by battery.The battery is installed in the cart.The DC control system controls the DC traction motor to turn positively and reversely. Motor drives gear reducer to make wheels move.We use the principle to operate the cart start, stop, go forward, backward, adjust the speed and so on. Lifting system is composed of a set of hydraulic device.


    10 T Electric Movable Lift Platform For Industrial Product Handling


    Application of electric movable lift platform

    The electric movable lift platform mainly applied to transportation at cubical space, also synchronous lifting up transportation and the condition of automatic stacking at fixed place and rising etc. For example,the large steel pipe lifting up and transporting, spraying and painting line, automobile assembly lines, machinery manufacture, bridge project etc. Application industry: chemical industry, metallurgy, automobile, machinery process etc.

    QQ20160718142341

    Characters of electric movable lift platform

    • 1.Heavy load capacity of lifting table and stable lifting.
      2.Though the supporting facilities the cargoes can be directly unloaded from the transfer cart.
      3.Can be used flexibly in the narrow and small space .

    QQ20160718142602

    Parameters of electric movable lift platform

    ModelKPX-16T
    Rated Load(t)16
    Table size(mm)3600*2000*500
    Wheel Base(mm)2600
    Rail Gauge(mm)1435
    Wheel Diameter(mm)Ф300
    Wheel Quantity(Pcs)4
    Ground Clearance(mm)50
    Running Speed(m/min)25
    Motor Power(Kw)1.5
    Max Wheel Load(KN)42.6
    Reference Weight(t)3.8
    Recommended Rail ModelP18

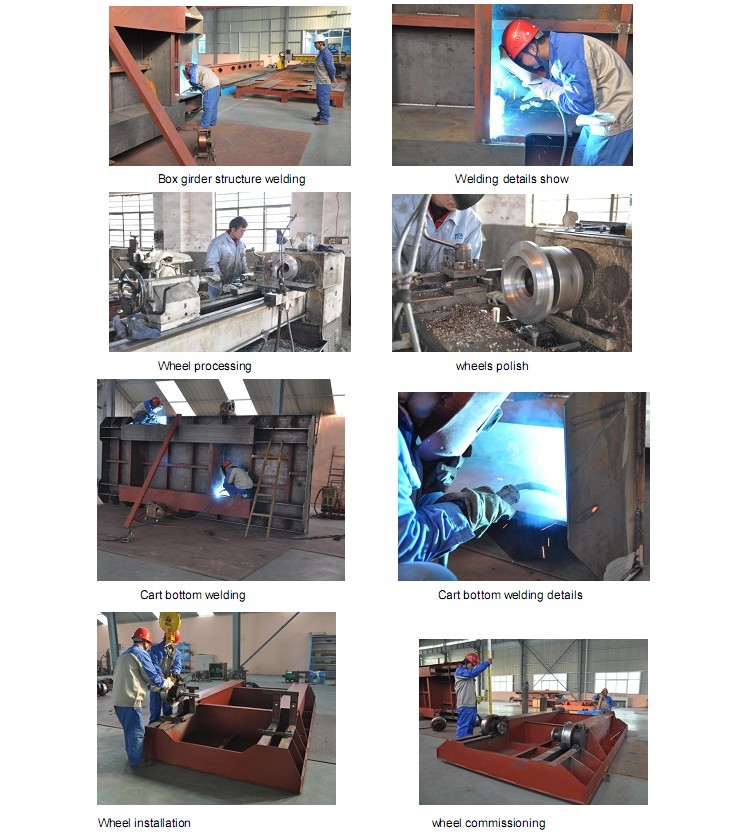

    Processing of electric movable lift platform

    10 T Electric Movable Lift Platform For Industrial Product Handling

    Packing&Delivery of electric movable lift platform

    Think of customers' benefits, we always pack the warehouse steel plate handle trolley scientifically and carefully and arrange delivery as soon as possible.

    delivery

    Our Customers
    10 T Electric Movable Lift Platform For Industrial Product Handling

    Client feedback

    10 T Electric Movable Lift Platform For Industrial Product Handling
