360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels

Xinxiang New Leader Machinery Manufacturing Co., Ltd
Contact Now
    Buy cheap 360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels from wholesalers

    Buy cheap 360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels from wholesalers
    • Buy cheap 360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels from wholesalers
    • Buy cheap 360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels from wholesalers
    • Buy cheap 360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels from wholesalers
    • Buy cheap 360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels from wholesalers

    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : BWP
    Certification : CE,ISO9000
    Price : $5000-$15000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 50 days after receive your prepayment
    • Product Details
    • Company Profile

    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels

    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels


    Working Principle of Motorized Transfer Trolley On Wheels


    The automated slab handling motorized transfer trolley on wheels is powered bylead acid battery. The battery is installed in the steerable motorized transfer trolley and we also equip intelligent charger for it. The motorized transfer trolley is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.

    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels

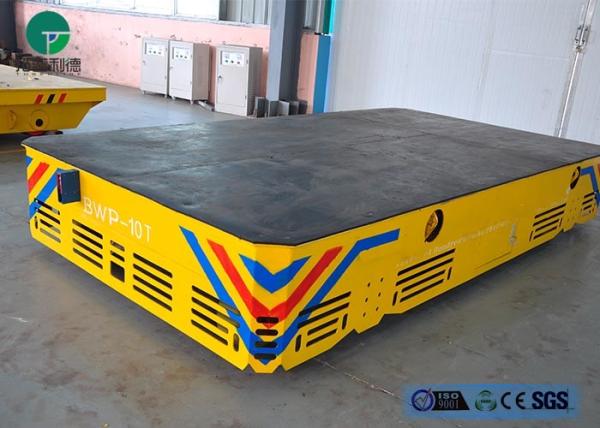

    Description of Motorized Transfer Trolley On Wheels

    The motorized transfer trolley is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other trolley, it has large size. But it travels flexibly.

    The driving wheel and load wheel of motorized transfer trolley is high strength PU wheel. It is wear-resistance, and has low maintain cost.

    The functions of the motorized transfer trolley including 360 degree turning, go forward and backward,turn left and right, adjust speed button, indicator light, electric indicator light and other control buttons. It has operating platform and can make the operator stand on the carriage to operate.

    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels

    Main Parts Photo of Motorized Transfer Trolley On Wheels




    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels

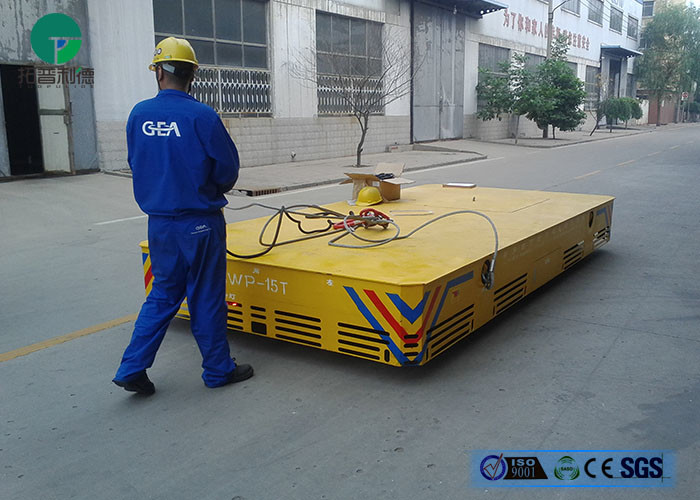

    Application of Motorized Transfer Trolley On Wheels


    This kind of motorized transfer trolley is commonly applied in factory workshop or warehouse to transfer materials, such as injection mold, steel coil, machine parts, aluminium coil, etc.

    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels



    Technical parameters of Motorized Transfer Trolley On Wheels


    Model

    BWP-20T

    Rated Load(t)

    20 t

    Impacted rated load(t)

    45

    structure of frame

    steel plates welded beam structure

    Thickness of the steel plate

    14

    Cart weight(t)

    8.8

    Wheel load(t)

    7.7

    Ground requirement

    cement ground

    Table size(mm)

    5000x2200

    Height of the whole cart(mm)

    650

    Space from the ground(mm)

    50

    Wheels distance

    1700

    Axles distance

    4300

    Turning radius(mm)

    4300

    Turning type

    turning while driving without stop

    Control method for turning

    control button

    Turning structure

    mechanical

    Wheel diameter

    Ф400/4

    Wheel quality

    polyurethane wheels

    Running speed(m/min)

    0-12

    Brake principle

    electric magnetic force

    Operation method

    with wire or no wire

    Charger motor's installation

    installed on cart

    Function of charger motor

    automatic charging

    Warning equipment

    sound and light lamp

    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels


    Manufacturing of Motorized Transfer Trolley On Wheels


    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels

    Delivery of Motorized Transfer Trolley On Wheels



    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels


    Our sale performance

    No.

    Exported countries

    Product name

    Product model

    Quantity

    Unit

    1

    Thailand

    Rail transfer cart

    KPDZ-16T

    2

    sets

    2

    Germany

    Battery power transfer car

    KPX-10T

    2

    sets

    3

    Syria

    Battery power transfer car

    KPX-120T

    1

    set

    4

    Syria

    Battery power transfer car

    KPX-30T

    1

    set

    5

    Turkey

    Battery power transfer car

    KPX-40T

    3

    sets

    6

    South Africa

    Battery power transfer car

    KPX-6T

    2

    sets

    7

    Nepal

    Battery power transfer car

    KPX-6T

    2

    sets

    8

    Singapore

    Cable power transfer car

    KPJ-15T

    1

    set

    9

    Singapore

    Cable power transfer car

    KPJ-10T

    1

    set

    10

    Singapore

    Towed transfer car

    KP-15T

    1

    set

    11

    Mongolia

    Cable power transfer car

    KPJ-30T

    2

    sets

    12

    Saudia Arabia

    Cable power transfer car

    KPX-60T

    2

    sets

    13

    Austrilia

    Battery power transfer car

    KPX-60T

    1

    set

    14

    Singapore

    Hoist trolley

    HB-4T

    1

    set

    15

    Singapore

    Hoist trolley

    HB-15T

    2

    sets

    16

    India

    Battery power transfer car

    KPX-20T

    1

    set

    17

    Singapore

    Electric turntable


    2

    sets

    18

    Mexico

    cable power transfer car

    KPJ-60T

    1

    set

    19

    Turkey

    cable power transfer car

    KPJ-10T

    1

    set

    20

    Saudia Arabia

    Busbar powered transfer car

    KPC-10T

    1

    set

    In order to protect clients' information, client's company names keep secret

    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels

    Customer visit in our factory from worldwide



    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels

    360 Degree Turning Electric Power Automated Slab Handling Motorized Transfer Trolley On Wheels
