    10t Double Motor Drive 4 Wheel Electric Trandport Cart On Cement Floor For Roll Handling

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : BWP
    Certification : CE,ISO9000
    Price : $5000-$15000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 50 days after receive your prepayment
    • Product Details
    • Company Profile

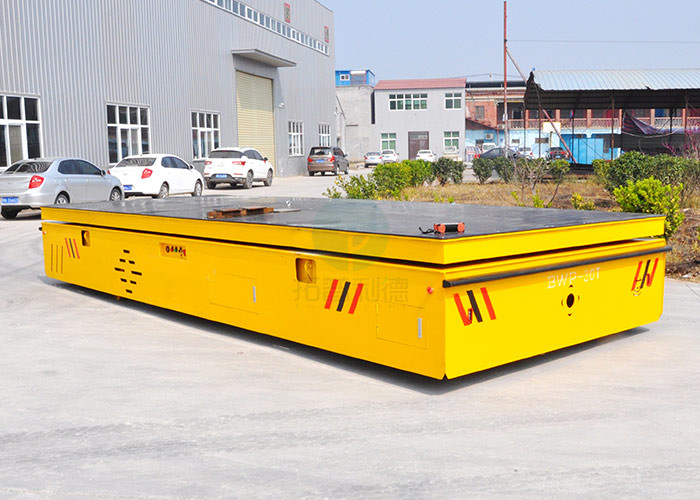

    10t Double Motor Drive 4 Wheel Electric Trandport Cart On Cement Floor For Roll Handling

    10t double motor drive 4 wheel electric transport cart on cement floor for roll handling


    Working principle of 4 wheel electric transport cart


    10t double motor drive 4 wheel electric transport cart is powered by lead acid battery. The battery is installed in the 4 wheel transport cart and we also equip intelligent charger for it. The 10t double motor drive 4 wheel transport cart is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.


    10t Double Motor Drive 4 Wheel Electric Trandport Cart On Cement Floor For Roll Handling


    Description of 4 wheel electric transport cart


    The 10t double motor drive 4 wheel transport cart is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it travels flexibly. In recent, we also develop many products with small size and lifting function.

    The driving wheel and load wheel of trackless cart is high strength PU wheel. It is wear-resistance, and has low maintain cost.

    The functions of the 10t double motor drive 4 wheel transport cart including 360 degree turning, go forward and backward, turn left and right, adjust speed button, indicator light, electric indicator light and other control buttons. It has operating platform and can make the operator stand on the carriage to operate.

    10t Double Motor Drive 4 Wheel Electric Trandport Cart On Cement Floor For Roll Handling


    10t Double Motor Drive 4 Wheel Electric Trandport Cart On Cement Floor For Roll Handling

    Main parts photo of 4 wheel electric transport cart





    Application of 4 wheel electric transport cart


    This kind of 10t double motor drive 4 wheel transport cart is commonly applied in factory workshop or warehouse to transfer materials, such as injection mold, steel coil, machine parts.aluminium coil, etc.


    10t Double Motor Drive 4 Wheel Electric Trandport Cart On Cement Floor For Roll Handling


    Technical parameters of 4 wheel electric transport cart


    Model

    BWP-20T

    Rated Load(t)

    20 t

    Impacted rated load(t)

    45

    structure of frame

    steel plates welded beam structure

    Thickness of the steel plate

    14

    Cart weight(t)

    8.8

    Wheel load(t)

    7.7

    Ground requirement

    cement ground

    Table size(mm)

    5000x2200

    Height of the whole cart(mm)

    650

    Space from the ground(mm)

    50

    Wheels distance

    1700

    Axles distance

    4300

    Turning radius(mm)

    4300

    Turning type

    turning while driving without stop

    Control method for turning

    control button

    Turning structure

    mechanical

    Wheel diameter

    Ф400/4

    Wheel quality

    polyurethane wheels

    Running speed(m/min)

    0-12

    Brake principle

    electric magnetic force

    Operation method

    with wire or no wire

    Charger motor's installation

    installed on cart

    Function of charger motor

    automatic charging

    Warning equipment

    sound and light lamp


    Manufacturing of 4 wheel electric transport cart


    10t Double Motor Drive 4 Wheel Electric Trandport Cart On Cement Floor For Roll Handling


    Delivery of 4 wheel electric transport cart


    10t Double Motor Drive 4 Wheel Electric Trandport Cart On Cement Floor For Roll Handling


    Our sale performance


    No.

    Exported countries

    Product name

    Product model

    Quantity

    Unit

    1

    Thailand

    Rail transfer cart

    KPDZ-16T

    2

    sets

    2

    Germany

    Battery power transfer car

    KPX-10T

    2

    sets

    3

    Syria

    Battery power transfer car

    KPX-120T

    1

    set

    4

    Syria

    Battery power transfer car

    KPX-30T

    1

    set

    5

    Turkey

    Battery power transfer car

    KPX-40T

    3

    sets

    6

    South Africa

    Battery power transfer car

    KPX-6T

    2

    sets

    7

    Nepal

    Battery power transfer car

    KPX-6T

    2

    sets

    8

    Singapore

    Cable power transfer car

    KPJ-15T

    1

    set

    9

    Singapore

    Cable power transfer car

    KPJ-10T

    1

    set

    10

    Singapore

    Towed transfer car

    KP-15T

    1

    set

    11

    Mongolia

    Cable power transfer car

    KPJ-30T

    2

    sets

    12

    Saudia Arabia

    Cable power transfer car

    KPX-60T

    2

    sets

    13

    Austrilia

    Battery power transfer car

    KPX-60T

    1

    set

    14

    Singapore

    Hoist trolley

    HB-4T

    1

    set

    15

    Singapore

    Hoist trolley

    HB-15T

    2

    sets

    16

    India

    Battery power transfer car

    KPX-20T

    1

    set

    17

    Singapore

    Electric turntable


    2

    sets

    18

    Mexico

    cable power transfer car

    KPJ-60T

    1

    set

    19

    Turkey

    cable power transfer car

    KPJ-10T

    1

    set

    20

    Saudia Arabia

    Busbar powered transfer car

    KPC-10T

    1

    set

    In order to protect clients' information, client's company names keep secret


    Customer visit in our factory from worldwide



    10t Double Motor Drive 4 Wheel Electric Trandport Cart On Cement Floor For Roll Handling

    Our client feedback

    10t Double Motor Drive 4 Wheel Electric Trandport Cart On Cement Floor For Roll Handling


    RFQ for 4 wheel electric transport cart

    1.table size, payload?

    2.turning radius you allowed?

    3.Indoor or outdoor?

    4.Min height for the operation platform
