    Machinery Plant Electric Heavy Duty Platform Transfer Motorized Rail Flat Cart

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : KPT
    Certification : CE,ISO9000
    Price : $5000-$12000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 30-40 days after receive your prepayment
    • Product Details
    • Company Profile

    Machinery Plant Electric Heavy Duty Platform Transfer Motorized Rail Flat Cart

    Machinery Plant Electric Heavy Duty Platform Transfer Motorized Rail Flat Cart

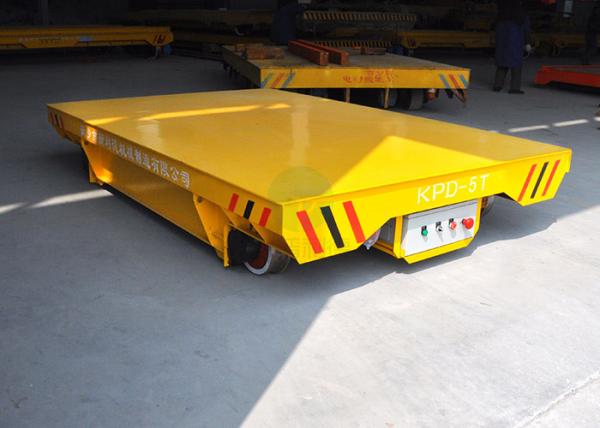

    Motorized Rail Flat Cart Introduction


    KPT series'motorized rail flat cart is powered by dragged cable, the kind of rail flat cart, its main character is that its power supply----dragged cable. From it you can see that it is suitable short distance due to the limitation of the cable. So if you would like to a short distance transportation, it is a good option for you. Up to now, the largest capacity can reach to 300T. The dragged cable is covered by chain or build a channel to protect the cable no damaged. It can be added the dumping function and lifting function.

    Machinery Plant Electric Heavy Duty Platform Transfer Motorized Rail Flat Cart

    Motorized Rail Flat Cart Details


    Machinery Plant Electric Heavy Duty Platform Transfer Motorized Rail Flat Cart


    Parameter of Motorized Rail Flat Cart


    Model

    KPT-2t

    KPT-20t

    KPT-50t

    KPT-100t

    KPT-150t

    Rated Load(t)

    2

    20

    50

    100

    150

    Table Size(mm)

    Length(L)

    2000

    4000

    5500

    6500

    10000


    Width(W)

    1500

    2200

    2500

    2800

    3000


    Heigth(H)

    450

    550

    650

    850

    1200

    Wheel Base(mm)

    1200

    2800

    4200

    4900

    7000

    Rail Inner Gauge(mm)

    1200

    1435

    1435

    2000

    2000

    Wheel Diameter(mm)

    Φ270

    Φ350

    Φ500

    Φ600

    Φ600

    Wheel Quantity

    4

    4

    4

    4

    8

    Ground Clearance(mm)

    50

    50

    50

    75

    75

    Running Speed(min)

    25

    20

    20

    20

    18

    Motor Power(kw)

    0.8

    2.5

    5.5

    11

    15

    Max Wheel Load(KN)

    14.4

    77.7

    174

    343.8

    265.2

    Reference Weight(t)

    2.3

    5.5

    7.6

    13.9

    26

    Recommended Rail Model

    P15

    P24

    P43

    QU100

    QU100


    Motorized Rail Flat Cart Application


    The Electric Heavy Duty Platform Transfer Motorized Rail Flat Cart is mainly applied in assembly line(ring production line, loop production line), metallurgy industry (steel ladle), warehouse transport, ship industry (maintenance, assemble, container transport), workpiece transport in workshop, lathe transport, steel factory(steel billet, steel plate, steel coil, steel pipe, section steel, steel structure), construction(bridge, simple building, concrete, concrete column), petroleum industry(oil pump, sucker rod and parts), energy(polycrystalline silicon, generator, windmill), chemical industry(electrolytic cell, retort etc), railway(rail maintenance, rail welding, train tractor).


    This kind of automatic motorized rail flat cart is running on steel tracks or steel squre bars.It is suitable to high using frequency working condition without crossing rails, but the running distance is no more than 200m.


    Machinery Plant Electric Heavy Duty Platform Transfer Motorized Rail Flat Cart


    Our Packaging


    Machinery Plant Electric Heavy Duty Platform Transfer Motorized Rail Flat Cart


    Advantage of the motorized flat cart

    • Anti-explosion, anti-high temperature;

    • Powered by cable;

    • With lifting holes, convenient to shipment;

    • Stable start, big starting power, long lifetime;

    • Simple structure, low cost ;

    • Running distance is limited;

    • Safe and convenient operation ;

    • High using frequency ;

    • Unlimited load capacity

    • Can be add hydraulic lifting device;

    • Can be add dumping device;

    • High efficiency, low energy consumption;

    Machinery Plant Electric Heavy Duty Platform Transfer Motorized Rail Flat Cart

    Customer Visit


    Machinery Plant Electric Heavy Duty Platform Transfer Motorized Rail Flat Cart



    tags:rail powered vehicle for coils,cable power vehicle for coils
