    20 T Electric Flat Carriage Trackless With Operation Platform For Australia Power Industry

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : BWP
    Certification : CE,ISO9000
    Price : $5000-$15000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 50 days after receive your prepayment
    • Product Details
    • Company Profile

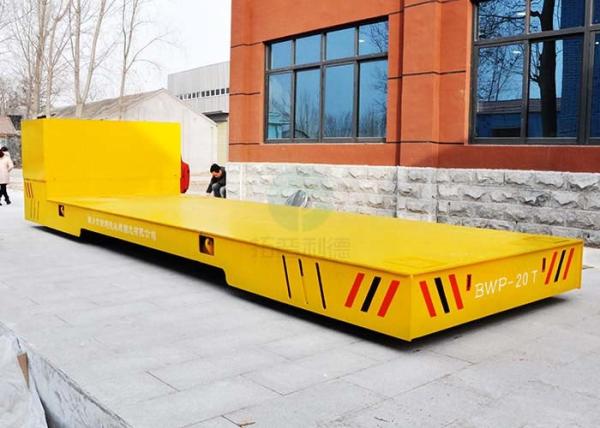

    20 T Electric Flat Carriage Trackless With Operation Platform For Australia Power Industry

    20 t electric flat carriage trackless with operation platform for Australia power industry



    Working principle of 20 t electric flat carriage


    20 t electric flat carriage is powered by lithium battery. The battery is installed in the steerable trolley and we also equip intelligent charger for it. The 20 t electric flat carriage is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.


    20 T Electric Flat Carriage Trackless With Operation Platform For Australia Power Industry


    Description of 20 t electric flat carriage



    The Description of 20 t electric flat carriage is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it travels flexibly.

    The driving wheel and load wheel of trackless car is high strength PU wheel. It is wear-resistance, and has low maintain cost.

    The functions of the Description of 20 t electric flat carriageincluding 360 degree turning, go forward and backward,turn left and right, adjust speed button, indicator light, electric indicator light and other control buttons. It has operating platform and can make the operator stand on the carriage to operate.


    20 T Electric Flat Carriage Trackless With Operation Platform For Australia Power Industry


    20 T Electric Flat Carriage Trackless With Operation Platform For Australia Power Industry


    Main parts photo of 20 t industrial die handling cart





    Application of 20 t electric flat carriage



    This kind of Application of 20 t electric flat carriage is commonly applied in factory workshop or warehouse to transfer materials, such as injection mold, steel coil, machine parts.aluminium coil etc.



    20 T Electric Flat Carriage Trackless With Operation Platform For Australia Power Industry


    Technical parameters of 20 t electric flat carriage


    ModelBWP-20T
    Rated Load(t)20 t
    Impacted rated load(t)45
    structure of framesteel plates welded beam structure
    Thickness of the steel plate14
    Cart weight(t)8.8
    Wheel load(t)7.7
    Ground requirementcement ground
    Table size(mm)5000x2200
    Height of the whole cart(mm)650
    Space from the ground(mm)50
    Wheels distance1700
    Axles distance4300
    Turning radius(mm)4300
    Turning typeturning while driving without stop
    Control method for turningcontrol button
    Turning structuremechanical
    Wheel diameterФ400/4
    Wheel qualitypolyurethane wheels
    Running speed(m/min)0-12
    Brake principleelectric magnetic force
    Operation methodwith wire or no wire
    Charger motor's installationinstalled on cart
    Function of charger motorautomatic charging
    Warning equipmentsound and light lamp

    Manufacturing of 20 t electric flat carriage


    20 T Electric Flat Carriage Trackless With Operation Platform For Australia Power Industry


    Delivery of 20 t electric flat carriage


    20 T Electric Flat Carriage Trackless With Operation Platform For Australia Power Industry


    Our sale performance


    No.Exported countriesProduct nameProduct modelQuantityUnit
    1ThailandRail transfer cartKPDZ-16T2sets
    2GermanyBattery power transfer carKPX-10T2sets
    3SyriaBattery power transfer carKPX-120T1set
    4SyriaBattery power transfer carKPX-30T1set
    5TurkeyBattery power transfer carKPX-40T3sets
    6South AfricaBattery power transfer carKPX-6T2sets
    7NepalBattery power transfer carKPX-6T2sets
    8SingaporeCable power transfer carKPJ-15T1set
    9SingaporeCable power transfer carKPJ-10T1set
    10SingaporeTowed transfer carKP-15T1set
    11MongoliaCable power transfer carKPJ-30T2sets
    12Saudia ArabiaCable power transfer carKPX-60T2sets
    13AustriliaBattery power transfer carKPX-60T1set
    14SingaporeHoist trolleyHB-4T1set
    15SingaporeHoist trolleyHB-15T2sets
    16IndiaBattery power transfer carKPX-20T1set
    17SingaporeElectric turntable2sets
    18Mexicocable power transfer carKPJ-60T1set
    19Turkeycable power transfer carKPJ-10T1set
    20Saudia ArabiaBusbar powered transfer carKPC-10T1set
    In order to protect clients' information, client's company names keep secret

    Customer visit in our factory from worldwide




    20 T Electric Flat Carriage Trackless With Operation Platform For Australia Power Industry


    Our client feedback20 T Electric Flat Carriage Trackless With Operation Platform For Australia Power Industry


    RFQ FOR 20 t electric flat carriage

    1.table size, payload?

    2.turning radius you allowed?

    3.Indoor or outdoor?

    4.Min height for the operation platform
