    Industrial Pallet Transfer Carts 30ton Battery Power Transfer Vehicle With Lifting Function

    Ask Lasest Price
    Brand Name : Topleader
    Model Number : BWP
    Certification : CE,ISO9000
    Price : $5000-$15000
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 sets/year
    Delivery Time : 50 days after receive your prepayment
    • Product Details
    • Company Profile

    Industrial Pallet Transfer Carts 30ton Battery Power Transfer Vehicle With Lifting Function

    Industrial Pallet Transfer Carts 30ton Battery Power Transfer Vehicle With Lifting Function


    Working Principle of battery power transfer vehicle


    Industrial Pallet Transfer Carts 30ton Battery Power Transfer Vehicle With Lifting Function is powered by lithium battery. The battery is installed in the steerable trolley and we also equip intelligent charger for it. The 30t battery power transfer vehicle is controlled to go forward, backward, turn left, turn right, adjust speed through PLC and speed controller.


    Industrial Pallet Transfer Carts 30ton Battery Power Transfer Vehicle With Lifting Function


    Description of battery power transfer vehicle


    The 30ton battery power transfer vehicle is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it travels flexibly.
    The driving wheel and load wheel of industrial pallet transfer cart is high strength PU wheel. It is wear-resistance, and has low maintain cost.
    The functions of the 30ton battery power transfer vehicle including 360 degree turning, go forward and backward, turn left and right, up and down adjust speed button, indicator light, electric indicator light and other control buttons. It has operating platform and can make the operator stand on the carriage to operate.

    Industrial Pallet Transfer Carts 30ton Battery Power Transfer Vehicle With Lifting Function

    Main Parts Photo of battery power transfer vehicle


    Industrial Pallet Transfer Carts 30ton Battery Power Transfer Vehicle With Lifting Function

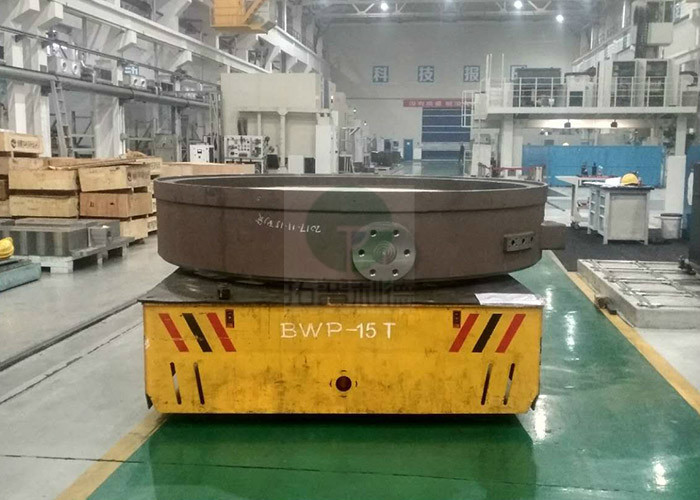

    Application of battery power transfer vehicle


    This kind of 30ton battery power transfer vehicle is commonly applied in factory workshop or warehouse to transfer materials, such as injection mold, steel coil, machine parts, aluminium coil, etc.


    Industrial Pallet Transfer Carts 30ton Battery Power Transfer Vehicle With Lifting Function


    Technical Parameters of battery power transfer vehicle


    Model

    BWP-30T

    Rated Load(t)

    30 t

    Impacted rated load(t)

    45

    structure of frame

    steel plates welded beam structure

    Thickness of the steel plate

    14

    Cart weight(t)

    8.8

    Wheel load(t)

    7.7

    Ground requirement

    cement ground

    Table size(mm)

    5000x2200

    Height of the whole cart(mm)

    650

    Space from the ground(mm)

    50

    Wheels distance

    1700

    Axles distance

    4300

    Turning radius(mm)

    4300

    Turning type

    turning while driving without stop

    Control method for turning

    control button

    Turning structure

    mechanical

    Wheel diameter

    Ф400/4

    Wheel quality

    polyurethane wheels

    Running speed(m/min)

    0-12

    Brake principle

    electric magnetic force

    Operation method

    with wire or no wire

    Charger motor's installation

    installed on cart

    Function of charger motor

    automatic charging

    Warning equipment

    sound and light lamp

    Manufacturing of battery power transfer vehicle


    Industrial Pallet Transfer Carts 30ton Battery Power Transfer Vehicle With Lifting Function


    Delivery of battery power transfer vehicle




    tags:steel coil transport trailer,steel coil transfer trailer
